Modern computers are built from surprisingly simple parts. At the lowest level, tiny electronic switches called transistors control the flow of current, and these switches are combined into logic gates that perform basic operations on binary signals. By organizing many layers of these building blocks, engineers create circuits that can store data, make decisions, and execute instructions.
Understanding this progression helps explain how a CPU turns simple on and off states into powerful computation.
A CPU is not a single magical component but a carefully engineered system made from millions or billions of transistors. Logic gates combine into adders, multiplexers, registers, and control circuits, which then form larger units like the arithmetic logic unit, cache interfaces, and instruction decoders. Clock signals coordinate when data moves and when operations happen, while architecture determines how instructions are processed efficiently.
This layered design is one of the clearest examples of engineering scale, where simple rules produce extremely complex machines.

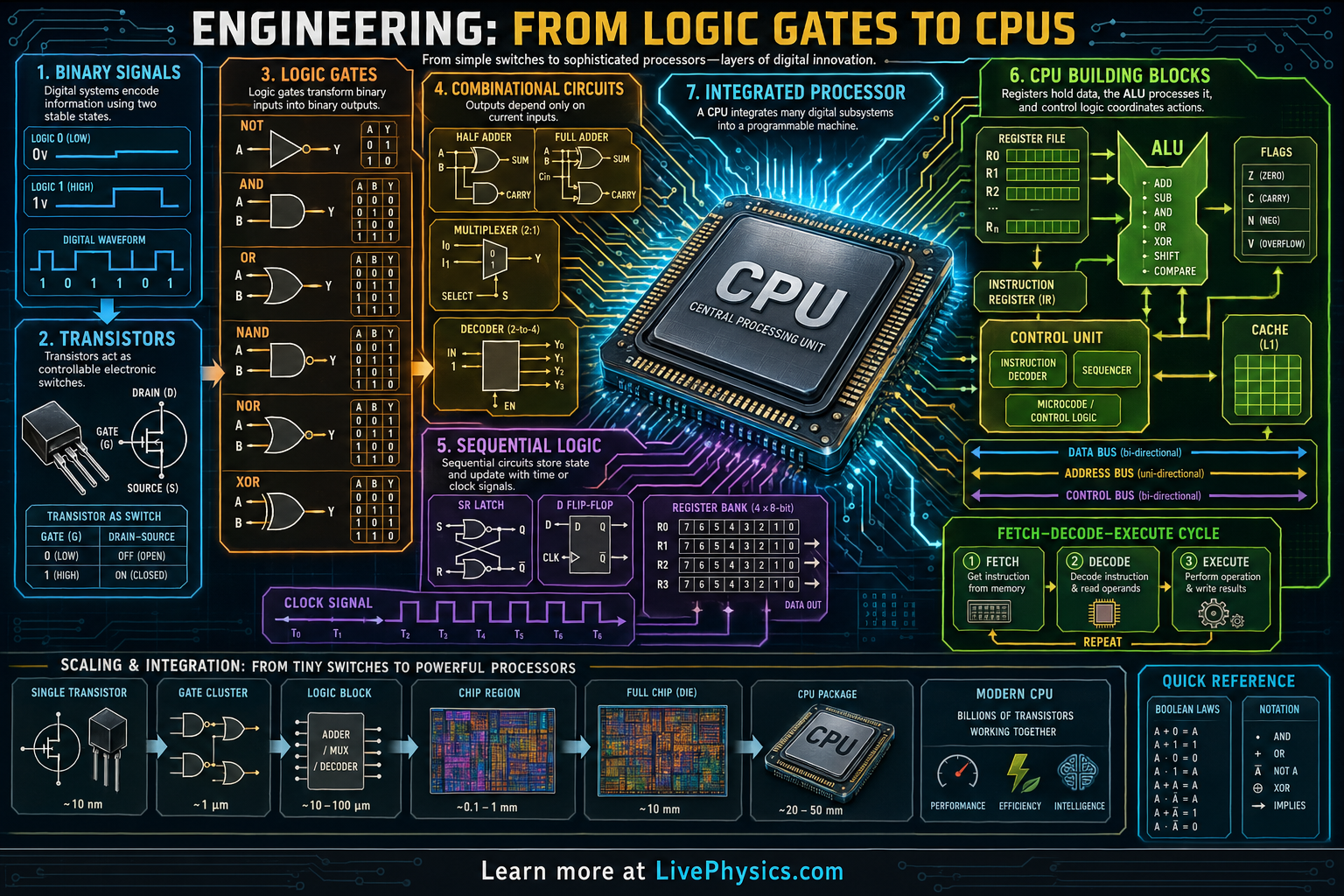

Understanding Computer Engineering: From Logic Gates to CPUs
The important step after individual gates is learning the difference between circuits that calculate and circuits that remember. A combinational circuit gives an output based only on its current inputs. An adder is one example.
A sequential circuit keeps a bit from an earlier moment. It does this using feedback, where part of a circuit affects its own future state. Flip flops are small storage circuits that usually change only when a clock edge arrives.
Groups of flip flops form registers. The clock keeps separate parts of a processor in step, but it creates limits. Signals need time to travel through gates and wires.
If data arrives too late, a register may store the wrong value or enter an unstable state called metastability. This is one reason faster processors are difficult to design.
An arithmetic logic unit, often called an ALU, performs more than ordinary addition. Several one bit adders can be linked so that a carry moves from a lower place value to a higher one. This makes it possible to add multi bit numbers.
Subtraction is commonly handled by changing a number into its two's complement form, then using the same addition hardware. An ALU can compare values, shift bits left or right, and perform bitwise operations on every matching pair of bits. It often produces status flags.
A zero flag shows that a result is zero. A carry flag records an extra carry bit.
A negative flag reflects the sign of a signed result. Later instructions use these flags to make choices, such as branching to a different part of a program.
A processor runs a program through repeated instruction cycles. A program counter holds the address of the next instruction. During fetch, the CPU reads that instruction from memory.
During decode, control circuitry identifies the operation and the needed data. During execute, the ALU, registers, or memory system performs the required work. The CPU then updates the program counter, usually to the following instruction.
A branch instruction can replace that normal next address with another one. This simple process explains loops, decisions, and function calls in software. A game, calculator, or phone app may contain millions of instructions, yet each instruction must eventually be broken into carefully timed transfers of bits.
Memory needs special attention because it is much slower than the fastest parts of a CPU. Registers are tiny and very fast. Cache memory stores recently used instructions and data close to the processor.
Main memory holds much more information, though reaching it takes longer. Storage devices such as solid state drives keep files when power is off, but they are slower still. When studying these systems, practice tracing a few bits through a truth table, an adder, and a register.
Keep track of binary place values, carries, clock events, and addresses. Simple diagrams of data moving between registers make processor behavior far easier to understand than memorising names alone.
Key Facts
- Binary digital systems use two logic levels, usually represented as 0 and 1.
- A NOT gate outputs the opposite of its input: Y = NOT A.
- An AND gate outputs 1 only when both inputs are 1: Y = A AND B.
- An OR gate outputs 1 when at least one input is 1: Y = A OR B.
- A simple sum bit in a half adder is S = A XOR B, and the carry bit is C = A AND B.
- CPU clock frequency relates to cycle time by f = 1/T.
Vocabulary
- Transistor
- A transistor is a tiny electronic switch that can turn current flow on or off and forms the basic element of digital circuits.
- Logic gate
- A logic gate is a circuit that performs a basic Boolean operation on one or more binary inputs.
- Register
- A register is a small fast storage circuit inside a CPU that holds data temporarily during processing.
- Clock signal
- A clock signal is a repeating timing pulse that synchronizes operations inside a digital system.
- CPU
- A CPU, or central processing unit, is the main processor that executes instructions, performs calculations, and controls many computer operations.
Common Mistakes to Avoid
- Thinking a CPU is made directly from software instructions, which is wrong because software runs on hardware built from transistors, gates, and larger circuits.
- Assuming one transistor equals one complete logic function, which is wrong because most useful gates and storage elements require multiple transistors working together.
- Confusing clock speed with total performance, which is wrong because CPU performance also depends on architecture, number of cores, cache, and instruction efficiency.
- Treating binary 0 and 1 as meaning no electricity and full electricity in every case, which is wrong because real circuits use voltage ranges and design conventions to represent logic levels.
Practice Questions
- 1 A half adder has inputs A = 1 and B = 1. Find the sum bit S and carry bit C using S = A XOR B and C = A AND B.
- 2 A CPU runs at a clock frequency of 2.5 x 10^9 Hz. Calculate the clock period T using T = 1/f.
- 3 Explain why engineers build CPUs in layers from transistors to gates to larger functional units instead of designing the whole processor as one giant circuit at once.
