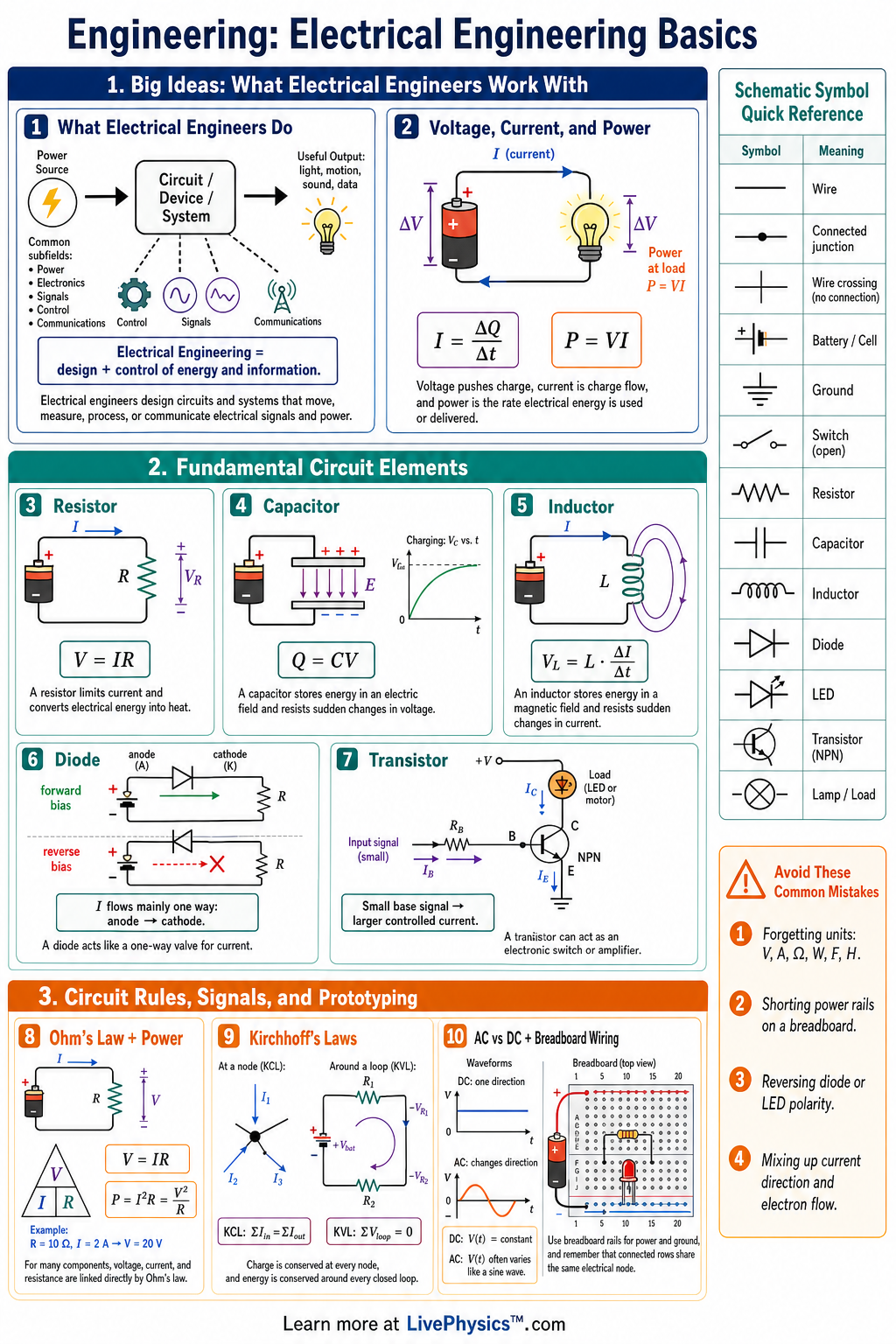

Electrical engineering basics explain how electric charge moves through circuits and how engineers control that motion to power devices. This cheat sheet helps students connect circuit symbols, units, and formulas in one quick reference. It is useful for solving physics problems, building simple circuits, and understanding everyday electrical systems.
Key Facts
- Ohm’s law is V = I R, where voltage equals current times resistance.
- Electric power is P = V I, and it can also be found with P = I^2 R or P = V^2 / R.
- Electrical energy is E = P t, where energy equals power times time.
- In a series circuit, the same current flows through every component.
- In a series circuit, total resistance is Rtotal = R1 + R2 + R3 + ... .
- In a parallel circuit, the voltage across each branch is the same.
- In a parallel circuit, total resistance follows 1 / Rtotal = 1 / R1 + 1 / R2 + 1 / R3 + ... .
- Kirchhoff’s junction rule says total current entering a junction equals total current leaving the junction.
Vocabulary
- Voltage
- Voltage is the electric potential difference that pushes charge through a circuit, measured in volts.
- Current
- Current is the rate at which electric charge flows, measured in amperes.
- Resistance
- Resistance is how much a material or component opposes the flow of electric current, measured in ohms.
- Power
- Power is the rate at which electrical energy is transferred or converted, measured in watts.
- Series Circuit
- A series circuit has one path for current, so every component carries the same current.
- Parallel Circuit
- A parallel circuit has multiple current paths, so each branch has the same voltage across it.
Common Mistakes to Avoid
- Confusing voltage and current is wrong because voltage is the push on charge, while current is the flow of charge.
- Adding resistors in parallel like series resistors is wrong because parallel resistance must use 1 / Rtotal = 1 / R1 + 1 / R2 + ... .
- Forgetting units is wrong because electrical formulas only give meaningful answers when volts, amperes, ohms, watts, and seconds are used correctly.
- Assuming current is used up by components is wrong because current is conserved in a closed circuit, while energy is transferred to the components.
- Ignoring circuit limits is wrong because too much current can overheat wires, damage components, or create a safety hazard.
Practice Questions
- 1 A 12 V battery is connected to a 6 ohm resistor. What current flows through the resistor?
- 2 A device uses 2 A of current from a 120 V outlet. What power does the device use?
- 3 Two resistors, 4 ohms and 8 ohms, are connected in series. What is the total resistance?
- 4 Why does adding more branches to a parallel circuit usually increase the total current drawn from the power source?
Understanding Electrical Engineering Basics
A circuit works because a source creates an electric field throughout the conducting path. In a battery, chemical reactions separate charge and maintain a difference in electric potential between its terminals. When the path is closed, this field pushes mobile electrons in the wire.
Electrons drift slowly, yet the electrical effect begins through the circuit very quickly because the field is established along the conductor. Engineers usually use conventional current, which is defined as moving from positive to negative.
Electron motion in metal is in the opposite direction. Keeping these two ideas separate prevents confusion when reading circuit diagrams.
Components do different jobs with the energy carried by charge. A resistor changes electrical energy mainly into thermal energy. A lamp produces light but still releases heat.
A motor transfers some electrical energy into motion. A switch does not supply energy. It simply opens or closes a conducting path.
Wires are treated as having almost no resistance in simple school problems, but real wires do resist current slightly. Long, thin wires have more resistance than short, thick wires made from the same material. This matters in power cables because resistance can cause unwanted heating and a voltage drop before energy reaches an appliance.
Circuit measurements need careful setup. A voltmeter compares electric potential at two points, so it is placed across a component. It has very high resistance so it draws little current.
An ammeter measures charge flow through one path, so it must be placed in that path. It has very low resistance. Connecting an ammeter directly across a battery can create a short circuit.
A short circuit provides an unintended low resistance route. Current can become large enough to heat wires, damage a battery, or start a fire. Before calculating anything, label known values with their units and check whether the question asks for a rate of energy transfer or a total amount of energy used over time.
Homes use parallel branches for outlets and lights. Each appliance receives the supply voltage it needs, and one switched off lamp does not stop the others from working. A series string can be useful when one control should affect every component, but one break stops the complete path.
Engineers choose wire sizes, resistors, fuses, and circuit breakers to limit heating under normal use and during faults. A fuse melts when current is too high. A circuit breaker opens mechanically and can be reset after the problem is fixed.
Household electricity is dangerous because it can drive current through the body. Students should use low voltage classroom supplies for experiments, keep hands dry, inspect leads for damaged insulation, and never build circuits using wall outlets.
