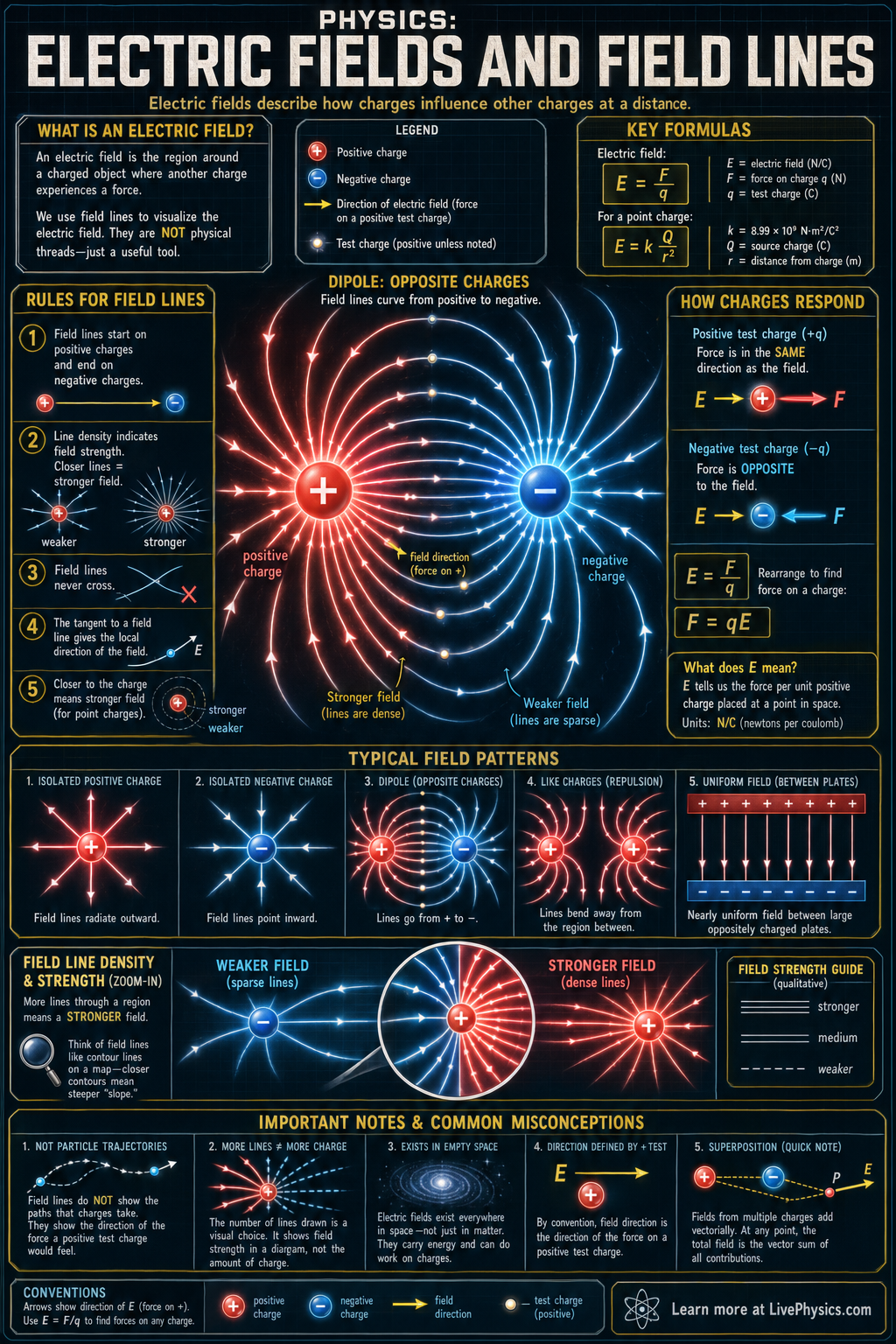

Electric Fields and Field Lines

Understanding Electric Fields and Field Lines

A field is useful because it separates the source of an interaction from the object that feels it. Once a charge creates a field, another charge placed nearby responds to the field at its own location. This idea works even when several charges are present.

Each charge makes its own contribution, and the contributions combine as vectors. Direction matters as much as size. Two equal contributions can reinforce each other in one region or partly cancel in another.

This is called superposition. It explains why the pattern around a pair of charges is not simply two separate circular patterns drawn on the same page.

The sign of the moving charge changes the direction of its force. A positive test charge moves in the local field direction. An electron has negative charge, so its force points the opposite way.

This is important in real devices because electrons are usually the charges that move through metal wires. Voltage differences provide a way to predict energy changes without tracking every curved path. A charge moving between two locations can gain or lose electric potential energy.

For a positive charge, moving toward lower potential releases energy. For an electron, the energy change has the opposite sign because its charge is negative. Electric fields point in the direction in which potential decreases most rapidly.

Conductors behave in a special way in electrostatic situations. Their free electrons shift until the electric field inside the solid conductor becomes zero. Excess charge ends up on the outer surface.

This is why a metal object can shield its interior from outside electric effects. A Faraday cage uses this principle. The metal body of a car gives some protection during lightning because charge can travel around the outside rather than through the cabin.

Near sharp points on a conductor, surface charge crowds together. The nearby field becomes especially strong. Lightning rods use pointed shapes to control where charge leakage and possible strikes are most likely to occur.

Parallel metal plates create a useful approximate model because the central region has nearly the same field strength and direction throughout. This model appears in capacitors, which store separated charge and energy. It also appears in older display technology and in particle experiments where charged particles need a controlled push.

The uniform pattern becomes less accurate near plate edges, where the field spreads outward. These edge effects are called fringing. When reading a field diagram, pay attention to whether it is a simplified sketch or a realistic map.

Do not treat field lines as physical tracks that particles must follow. A particle’s actual path depends on its starting velocity, mass, charge, and any other forces present. The lines describe the force direction at each point, not necessarily the route of motion.
