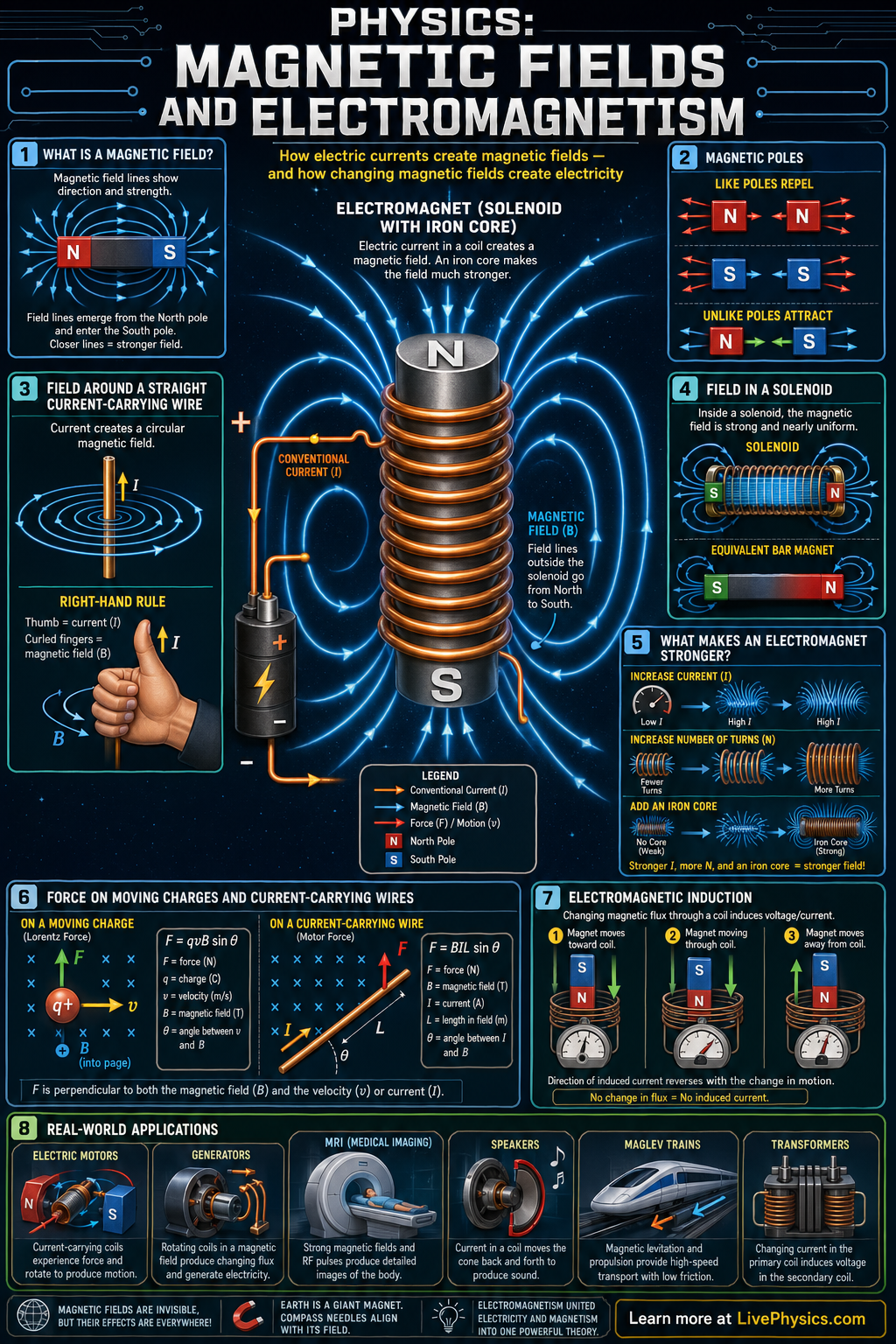

Magnetic fields and electromagnetism explain how moving electric charges create forces and how electricity and magnetism are linked. These ideas power many technologies, including motors, generators, speakers, MRI machines, and transformers. A magnetic field fills the space around a magnet or a current carrying wire and can push on other moving charges or magnetic materials.
Understanding these fields helps students connect invisible forces to real devices.
An electromagnet is made by sending current through a coil of wire, often wrapped around an iron core to strengthen the field. The magnetic field around each loop adds together, producing a stronger overall field with clear north and south poles. The direction of the field depends on the direction of current, which can be predicted with the right hand rule.
Electromagnetic induction shows the reverse connection: changing magnetic flux can create an electric voltage in a wire.
Understanding Magnetic Fields & Electromagnetism
Field lines are a drawing tool, not physical threads floating in space. Their direction shows the direction a tiny north magnetic pole would point. Their spacing gives a useful picture of field strength.
Lines packed close together represent a stronger field. Outside a bar magnet, the lines go from its north end to its south end. Inside the magnet, they complete the loop.
This closed-loop pattern is important because isolated magnetic poles have not been found. When sketching fields, students should draw smooth lines that never cross. If they crossed, one point would have two field directions, which is not possible.
A magnetic field affects a charge only when the charge moves across the field. The force is greatest when the motion is at right angles to the field and disappears when the charge travels along it. The force points sideways to both the motion and the field direction.
This makes direction problems harder than simple force calculations. Use the right hand rule carefully for a positive charge. Point fingers along the velocity, curl them toward the field, and the thumb gives the force direction.
For an electron, reverse that result because its charge is negative. Since the force is sideways, it changes direction rather than speed.
A charged particle can therefore travel in a circular or spiral path. Particle detectors and space weather research use this behaviour.
A current in a wire is the combined motion of many charges. If the wire sits in a magnetic field, each moving charge feels a sideways force. The forces transfer to the metal wire, so the wire moves.
This is the basic action inside an electric motor. A coil can turn because opposite sides of the coil feel forces in opposite directions. The turning effect changes as the coil rotates, so a motor needs a way to keep the rotation going.
In many direct current motors, a split ring reverses the current every half turn. Speakers use a related idea. A changing current moves a coil in a magnetic field, causing a cone to vibrate and make sound.
Induction depends on change, not simply on having a magnet nearby. Voltage is produced when the amount of magnetic field passing through a loop changes. Moving a magnet, moving the loop, changing the field strength, changing the loop area, or rotating the loop can all create this change.
A faster change produces a larger induced voltage. More turns of wire make the effect stronger because each turn contributes. The induced current creates its own magnetic field that opposes the original change.
This opposition is called Lenz's law. It explains why pushing a magnet into a closed coil can feel resisted.
Generators turn coils or magnets to make alternating current. Transformers use changing current in one coil to create voltage in another coil, allowing electricity to be sent efficiently over long distances.
Key Facts
- A current carrying wire produces circular magnetic field lines around the wire.
- For a long straight wire, .
- For a solenoid, , and an iron core increases the field further.
- Magnetic force on a moving charge is .
- Magnetic force on a wire is .
- Induced voltage follows Faraday's law: emf = -dPhiB/dt.
Vocabulary
- Magnetic field
- A magnetic field is the region around a magnet or moving charge where magnetic forces can act.
- Electromagnet
- An electromagnet is a magnet produced by electric current, usually using a coil of wire and often an iron core.
- Solenoid
- A solenoid is a long coil of wire that creates a nearly uniform magnetic field inside when current flows through it.
- Magnetic flux
- Magnetic flux measures how much magnetic field passes through a given area.
- Electromagnetic induction
- Electromagnetic induction is the production of voltage in a conductor caused by a changing magnetic field or changing magnetic flux.
Common Mistakes to Avoid
- Confusing magnetic field direction with force direction, because the field points from north to south outside a magnet but the force on a charge also depends on the charge sign and velocity direction.
- Using the right hand rule incorrectly, because for current and field direction the thumb and fingers represent different quantities and reversing them gives the wrong pole or force direction.
- Assuming a stationary charge feels magnetic force, because magnetic force requires motion relative to the magnetic field so gives .
- Thinking stronger current always means induction, because induction depends on changing magnetic flux rather than just having a magnetic field present.
Practice Questions
- 1 A straight wire carries a current of . Find the magnetic field from the wire. Use .
- 2 A solenoid has turns per meter and carries a current of . Estimate the magnetic field inside it using .
- 3 A bar magnet is pushed toward a loop of wire, then held still inside the loop. Explain when an induced current appears and why it changes.
