Projectile Motion (Advanced)

Angle Comparisons and Real-World Examples

Related Tools

Related Labs

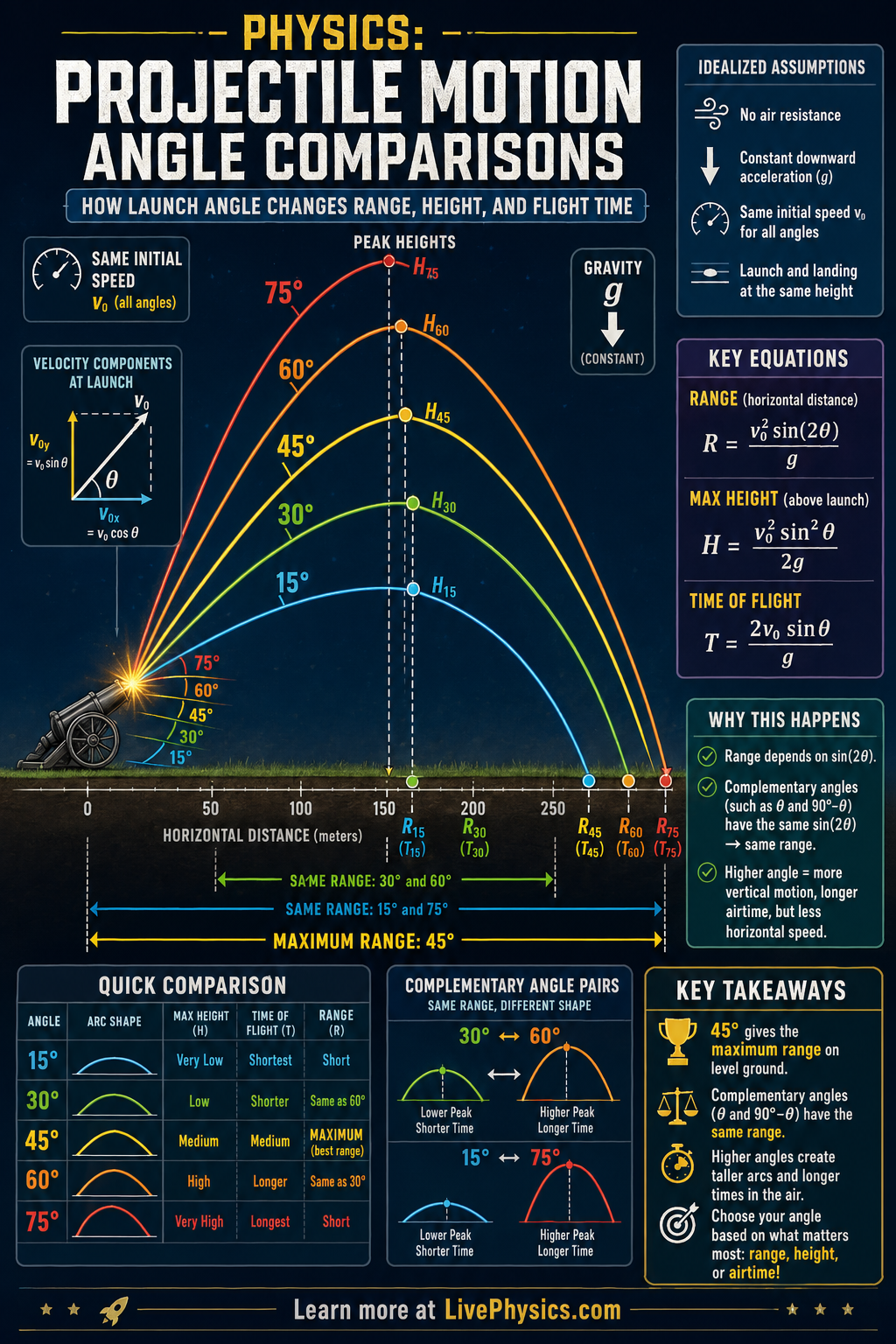

Projectile motion compares how objects travel when launched at different angles with the same starting speed. It matters because the launch angle changes the shape of the path, the time in the air, the maximum height, and the horizontal range. These comparisons appear in sports, engineering, and basic motion planning. Studying several angles side by side helps students see the tradeoffs clearly.

A projectile launched from level ground can be split into horizontal and vertical motion. The horizontal velocity stays constant if air resistance is ignored, while the vertical velocity changes because gravity accelerates the object downward. For the same initial speed, low angles give flatter paths and shorter flight times, while high angles give taller paths and longer flight times. Complementary angles such as 30 degrees and 60 degrees produce the same range on level ground, but their trajectories and times of flight are different.

Key Facts

Resolve the launch speed into components: vx = v0 cos(theta), vy = v0 sin(theta)
Horizontal motion has constant speed: x = vx t = v0 cos(theta) t
Vertical motion is accelerated by gravity: y = v0 sin(theta) t - (1/2)gt^2
Time of flight on level ground: T = 2v0 sin(theta) / g
Maximum height on level ground: H = v0^2 sin^2(theta) / (2g)
Range on level ground: R = v0^2 sin(2theta) / g

Vocabulary

Projectile: An object that moves through the air after launch while gravity is the main force acting on it.
Launch angle: The angle between the initial velocity vector and the horizontal direction.
Range: The horizontal distance traveled by a projectile before it lands.
Time of flight: The total time a projectile stays in the air from launch to landing.
Complementary angles: Two angles that add to 90 degrees and give the same range for equal launch speed on level ground.

Common Mistakes to Avoid

Using the full initial speed for both x and y directions, which is wrong because the launch speed must be split into horizontal and vertical components with cosine and sine.
Assuming the 45 degree launch always gives the greatest range, which is only true for launch and landing at the same height with no air resistance.
Thinking complementary angles have identical trajectories, which is wrong because they only have the same range while their heights and flight times differ.
Forgetting that gravity affects only the vertical motion, which leads to incorrect horizontal equations and changing vx when it should stay constant in the ideal model.

Practice Questions

1 A ball is launched from level ground at 20 m/s and 30 degrees. Ignore air resistance and use g = 9.8 m/s^2. Find the horizontal and vertical components of the initial velocity, the time of flight, and the range.
2 Two projectiles are launched from the same point with the same speed of 24 m/s, one at 25 degrees and one at 65 degrees. Ignore air resistance and use g = 9.8 m/s^2. Calculate the range of each and compare their maximum heights.
3 A student says that a projectile launched at 60 degrees is always better than one launched at 30 degrees because it stays in the air longer. Explain why this statement is incomplete by comparing range, height, and time of flight for equal launch speeds on level ground.
