Wheels and Axles
Bikes, Cars, and Mechanical Advantage
Related Tools
Related Labs

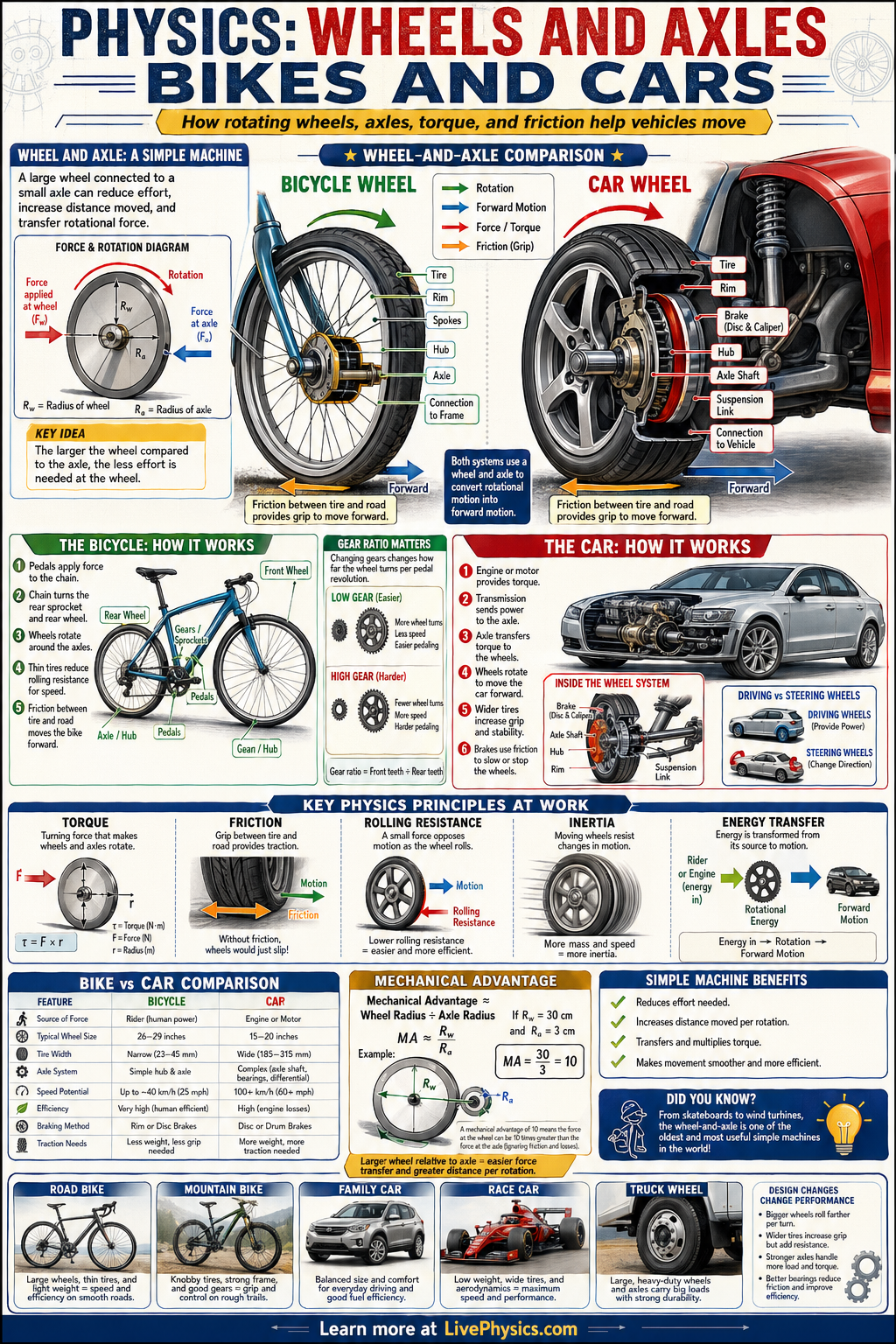

Wheels and axles are simple machines that reduce friction and make it easier to move loads. They are used in everyday transportation systems like bicycles and cars, where rotating wheels allow motion with much less force than dragging an object along the ground. Understanding how wheels and axles work helps explain speed, torque, balance, and mechanical advantage. This idea connects basic physics to real machines students see and use every day.
In both bikes and cars, the wheel rotates around an axle, but the design and purpose of each part differ. A bicycle wheel is lightweight and built for efficient rotation, while a car wheel and axle system is stronger and designed to support much greater mass and transmit larger forces. The hub connects the wheel to the axle, the rim supports the tire, and bearings reduce friction between moving parts. These components work together to convert applied force into smooth rolling motion.
Key Facts
- Mechanical advantage of a wheel and axle = Rwheel / Raxle
- Torque is given by tau = rF
- Angular speed and linear speed are related by v = r omega
- Rolling without slipping means v = r omega at the tire edge
- Friction in bearings is reduced to allow easier rotation of the wheel around the axle
- A larger wheel can travel farther per rotation because distance per turn = 2 pi r
Vocabulary
- Axle
- The axle is the central shaft that supports the wheel and allows it to rotate.
- Hub
- The hub is the middle part of the wheel that connects the rim and spokes to the axle.
- Rim
- The rim is the outer circular frame of the wheel that holds the tire.
- Torque
- Torque is the turning effect of a force applied at a distance from an axis.
- Bearing
- A bearing is a component that reduces friction between rotating parts such as the wheel and axle.
Common Mistakes to Avoid
- Thinking the wheel and axle are separate machines in a vehicle, when they actually work together as one rotating system. Ignoring this connection makes it harder to understand torque and motion transfer.
- Assuming bigger wheels always require more force to move, which is not always true. Larger wheels can increase distance traveled per rotation and can provide different mechanical advantages depending on the axle size.
- Confusing linear speed with angular speed, even though they are related by v = r omega. A larger wheel can have the same linear speed as a smaller one while rotating more slowly.
- Forgetting the role of bearings, which leads students to treat the system as if friction is negligible everywhere. Bearings are important because they specifically reduce friction at the axle and allow smoother rotation.
Practice Questions
- 1 A bicycle wheel has a radius of 0.35 m and rotates at 8 rad/s. What is the linear speed of the bicycle if the wheel rolls without slipping?
- 2 A wheel has radius 0.40 m and the axle has radius 0.05 m. What is the mechanical advantage of the wheel and axle system?
- 3 A bicycle wheel is much lighter than a car wheel, but both use hubs, axles, and bearings. Explain how the different designs match the different jobs of bicycles and cars.
