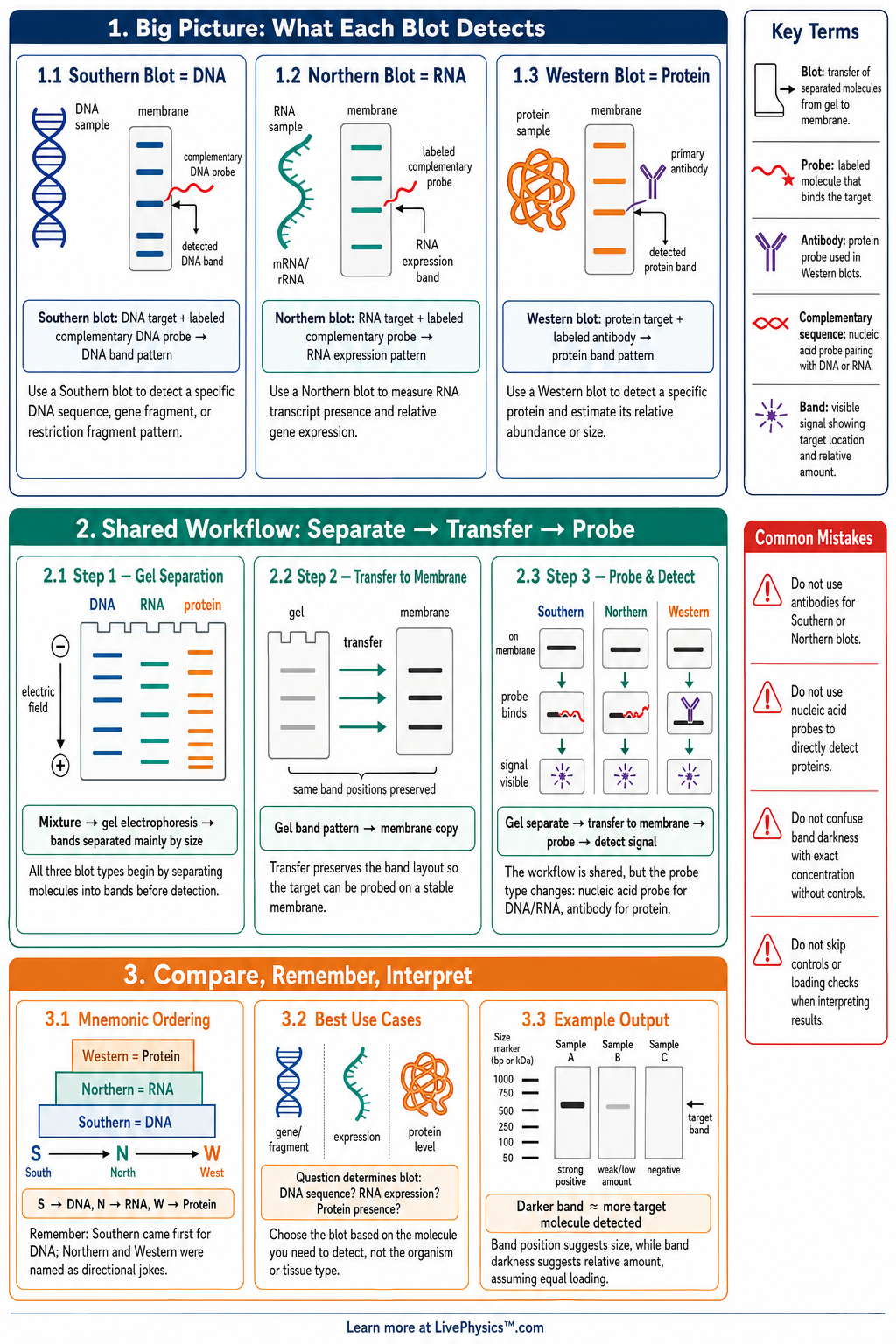

Western, Northern & Southern Blot Comparison Cheat Sheet
A printable reference covering Southern, Northern, and Western blots, target molecules, probes, detection methods, and key comparisons for grades 11-12.
Related Tools
Related Labs
Related Worksheets
Related Infographics
Western, Northern, and Southern blots are laboratory techniques used to detect specific biological molecules in complex samples. Students need this comparison because the names sound similar, but each method targets a different type of molecule. This cheat sheet helps connect the target, gel type, probe, and common purpose for each blot. It is especially useful for genetics, molecular biology, biotechnology, and lab methods review. Southern blotting detects specific DNA sequences, Northern blotting detects specific RNA transcripts, and Western blotting detects specific proteins. All three methods begin by separating molecules by size, transferring them to a membrane, and detecting a target with a specific probe or antibody. A simple comparison rule is Southern = DNA, Northern = RNA, Western = protein. The main differences come from the molecule being studied and the detection tool used.
Key Facts
- Southern blot = DNA detection using a labeled DNA or RNA probe that base-pairs with a complementary DNA sequence.
- Northern blot = RNA detection using a labeled DNA or RNA probe that base-pairs with a complementary RNA transcript.
- Western blot = protein detection using a primary antibody that binds the target protein and a labeled secondary antibody for visualization.
- The general blot workflow is separate by size, transfer to membrane, bind probe or antibody, wash, detect signal.
- DNA and RNA are usually separated by gel electrophoresis based on fragment length, while proteins are commonly separated by SDS-PAGE based on size.
- Complementary base pairing explains nucleic acid detection: A pairs with T in DNA, A pairs with U in RNA, and C pairs with G.
- A stronger band usually means more target molecule is present, but accurate comparison requires proper controls and equal loading.
- Common uses are Southern blot for gene presence or restriction fragment analysis, Northern blot for gene expression, and Western blot for protein expression or protein size.
Vocabulary
- Southern blot
- A technique used to detect a specific DNA sequence in a sample after DNA fragments are separated and transferred to a membrane.
- Northern blot
- A technique used to detect a specific RNA transcript and estimate gene expression levels in a sample.
- Western blot
- A technique used to detect a specific protein using antibodies after proteins are separated by size.
- Probe
- A labeled DNA or RNA molecule that binds to a complementary nucleic acid sequence during detection.
- Antibody
- A protein that binds a specific target protein or antigen in methods such as Western blotting.
- Membrane
- A thin sheet, often nylon or nitrocellulose, that holds transferred molecules so they can be detected.
Common Mistakes to Avoid
- Confusing the target molecules is wrong because Southern detects DNA, Northern detects RNA, and Western detects protein.
- Saying Western blots use nucleic acid probes is wrong because Western blots use antibodies to recognize proteins.
- Assuming band position always shows amount is wrong because band position mainly indicates molecule size, while band intensity relates to quantity.
- Ignoring controls is wrong because loading controls and positive or negative controls help show whether the result is reliable.
- Forgetting RNA is less stable than DNA is wrong because RNA can degrade easily, so Northern blot samples require careful handling.
Practice Questions
- 1 A researcher wants to know whether a bacterial colony contains a specific DNA sequence. Which blot should be used, and what type of probe detects the target?
- 2 A Northern blot shows a strong RNA band in liver cells and a weak band in muscle cells for the same gene. Which cell type likely has higher expression of that gene?
- 3 A Western blot detects a protein band at 50 kDa in treated cells but not in untreated cells. What does this suggest about the effect of the treatment?
- 4 Explain why Southern and Northern blots can use complementary nucleic acid probes, but Western blots require antibodies instead.
