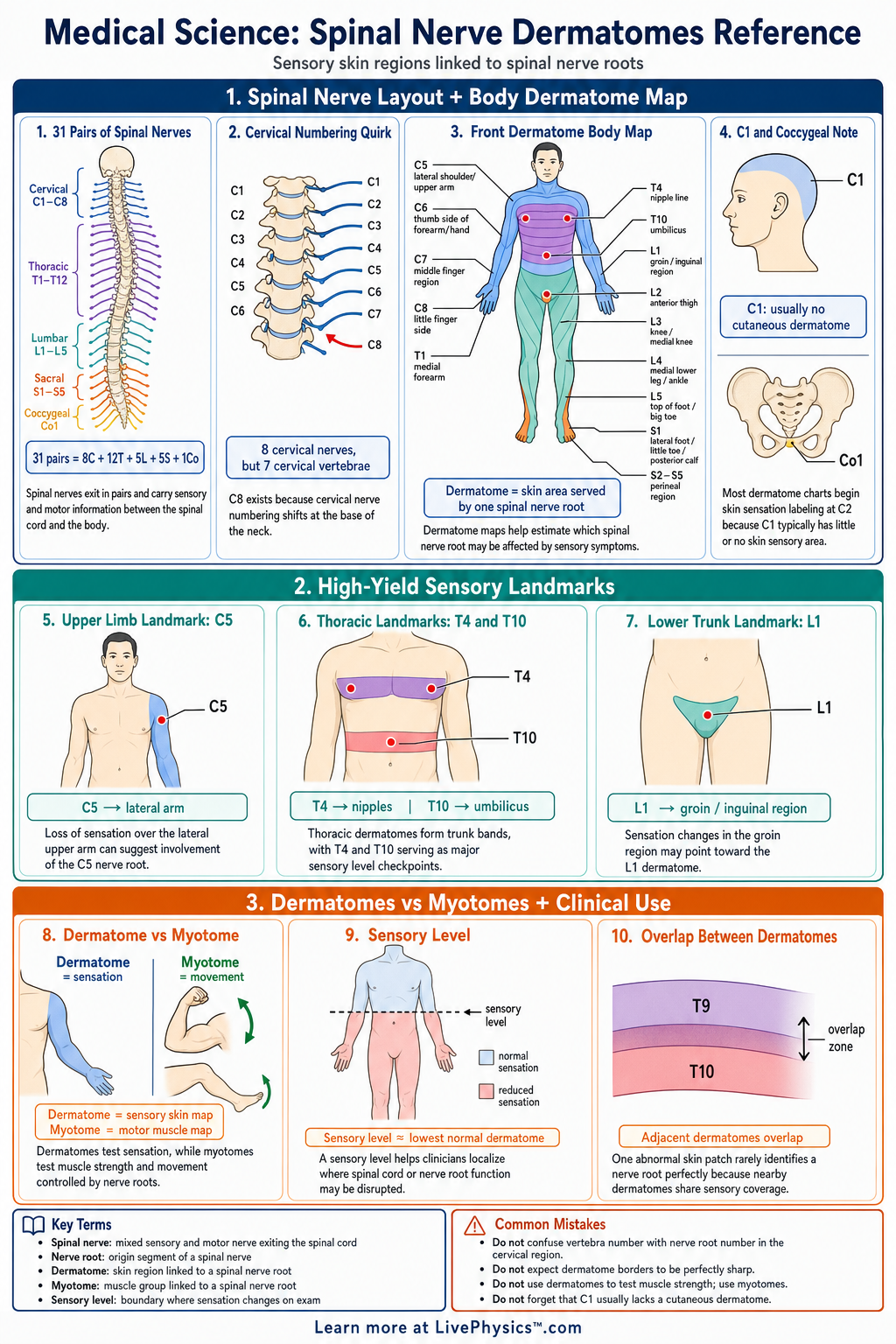

Spinal Nerve Dermatomes Reference Cheat Sheet
A printable reference covering spinal nerve organization, dermatome maps, sensory landmarks, myotomes, and clinical use for grades 10-12.
Related Labs
Related Worksheets
This cheat sheet covers spinal nerve dermatomes, which are areas of skin mainly supplied by sensory fibers from one spinal nerve root. Students need this reference to connect spinal anatomy with sensation, injury patterns, and basic neurological exams. It is designed as a clean printable binder sheet with three color-coded sections for organization, landmarks, and clinical use. The focus is on readable diagrams, landmark cards, and high-yield reference points for grades 10-12. The core idea is that each spinal nerve root carries sensory information from a predictable skin region, although neighboring dermatomes overlap. Important landmarks include C6 at the thumb, T4 at the nipple line, T10 at the umbilicus, L4 at the medial ankle, L5 at the big toe, and S1 at the lateral foot. Dermatomes describe sensory supply, while myotomes describe motor control from spinal nerve roots. Clinically, loss of sensation in a dermatome can help locate possible nerve root irritation, compression, or injury.
Key Facts
- A dermatome is an area of skin that sends sensory signals mainly through one spinal nerve root.
- There are 31 pairs of spinal nerves: 8 cervical, 12 thoracic, 5 lumbar, 5 sacral, and 1 coccygeal.
- Cervical nerves C1 to C8 supply the neck, shoulders, arms, and hands, but C1 usually has no major skin dermatome.
- Thoracic dermatomes form band-like zones around the trunk, with T4 near the nipple line and T10 near the umbilicus.
- Lumbar dermatomes supply the front and inner parts of the lower limb, with L4 often linked to the medial ankle.
- Sacral dermatomes supply the back of the leg, lateral foot, and perineal region, with S1 often linked to the lateral foot.
- Dermatome maps are approximate because adjacent spinal nerve roots overlap in their sensory coverage.
- Dermatomes describe sensory regions, while myotomes describe muscle actions controlled by spinal nerve roots.
Vocabulary
- Dermatome
- A dermatome is a region of skin that receives sensory nerve supply mainly from one spinal nerve root.
- Spinal nerve root
- A spinal nerve root is the bundle of nerve fibers entering or leaving the spinal cord at one spinal level.
- Sensory neuron
- A sensory neuron carries information such as touch, pain, temperature, or pressure from the body to the central nervous system.
- Myotome
- A myotome is a group of muscles mainly controlled by motor fibers from one spinal nerve root.
- Radiculopathy
- Radiculopathy is pain, numbness, tingling, or weakness caused by irritation or compression of a spinal nerve root.
- Sensory landmark
- A sensory landmark is a body location commonly used to check the function of a specific dermatome.
Common Mistakes to Avoid
- Confusing dermatomes with myotomes is wrong because dermatomes describe skin sensation, while myotomes describe muscle movement.
- Treating dermatome borders as exact lines is wrong because sensory regions overlap between neighboring spinal nerve roots.
- Forgetting that C1 has little or no major skin dermatome is wrong because the first cervical nerve is mostly motor rather than a standard sensory landmark.
- Assuming one numb spot proves one exact nerve injury is wrong because symptoms can be affected by overlap, peripheral nerves, and non-nerve causes.
- Mixing up thoracic landmarks is wrong because T4 is commonly checked near the nipple line, while T10 is commonly checked near the umbilicus.
Practice Questions
- 1 A patient reports numbness around the thumb. Which dermatome is most commonly associated with this area?
- 2 A sensory exam shows reduced sensation near the umbilicus. Which thoracic dermatome is the best landmark match?
- 3 A student tests sensation at the medial ankle and the lateral foot. Which dermatomes are commonly linked to these two areas?
- 4 Why should a clinician avoid diagnosing a single spinal nerve root injury based only on one small area of numbness?
