How Touchscreens Detect Your Finger
Touchscreens Detect Your Finger
Related Tools
Related Labs
Related Worksheets
Related Cheat Sheets

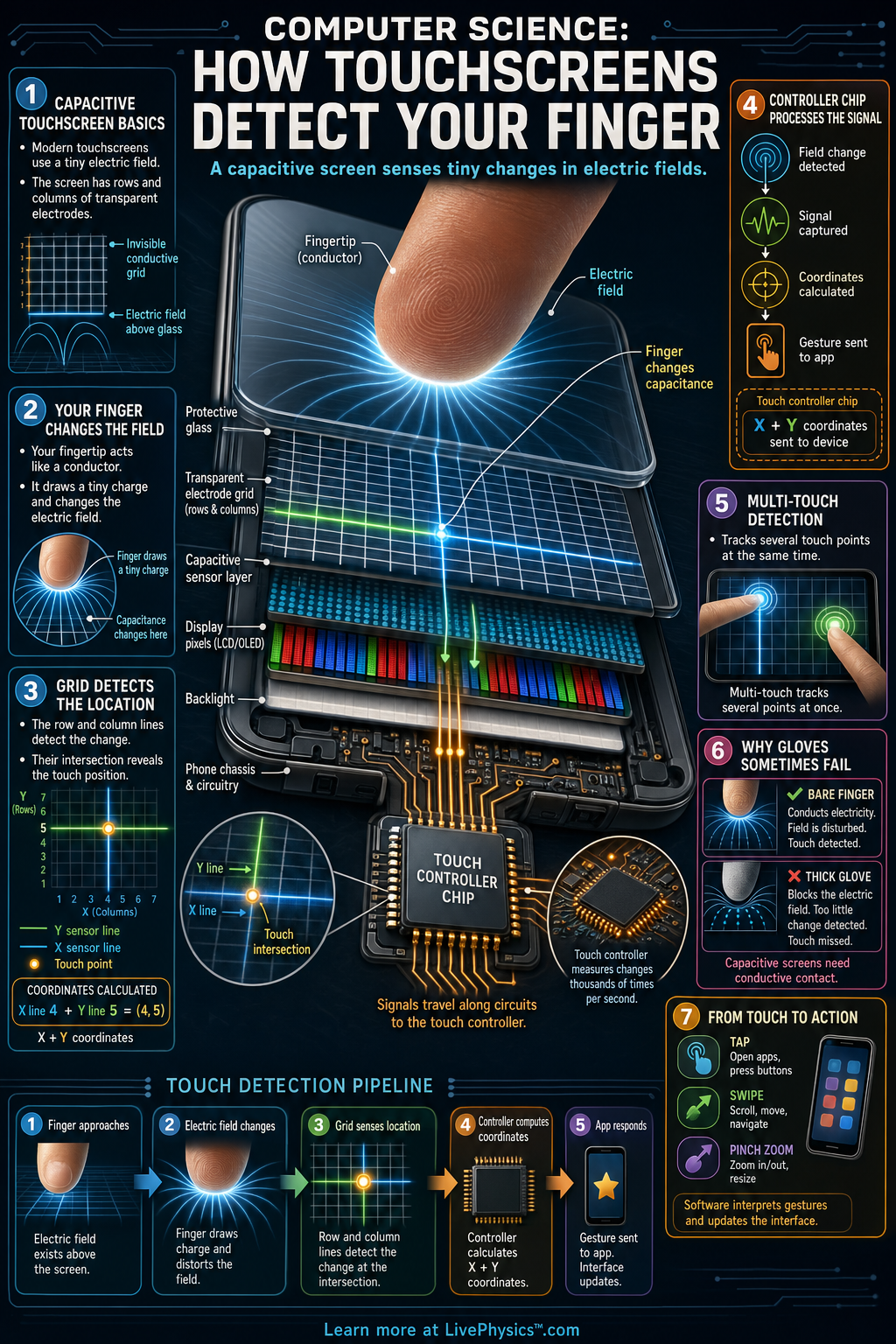

Most modern phone screens detect your finger using capacitive sensing, not pressure. A transparent grid of tiny conductive electrodes sits under the glass and stores electric charge. When your finger approaches, it changes the local electric field because your body can conduct charge. The phone measures that small change and turns it into a touch location on the screen.
A capacitive touchscreen acts like many tiny capacitors arranged in rows and columns. The controller rapidly scans the grid, compares the measured capacitance at each point, and finds where the change is strongest. Software then filters noise, tracks motion, and converts the touch into taps, swipes, pinches, and gestures. This is why clean fingers work well, while thick gloves or very dry materials often block detection.
Key Facts
- Capacitance measures how much electric charge can be stored: C = Q/V.
- A finger changes the electric field near the touchscreen and slightly changes the measured capacitance.
- Touch position is found by scanning intersecting rows and columns in a transparent sensor grid.
- Mutual capacitance uses a transmitter electrode and a receiver electrode to measure coupling between them.
- The strongest capacitance change usually marks the center of the fingertip contact area.
- A touchscreen controller samples many grid points per second, often at rates near 60 Hz to 240 Hz.
Vocabulary
- Capacitance
- Capacitance is the ability of a system to store electric charge for a given voltage.
- Electrode
- An electrode is a conductive part of a circuit that sends or receives electrical signals.
- Electric field
- An electric field is the region around charged objects where electric forces can act.
- Touch controller
- A touch controller is a chip that scans the sensor grid and calculates touch positions from electrical measurements.
- Multi-touch
- Multi-touch is the ability of a screen to detect and track more than one finger at the same time.
Common Mistakes to Avoid
- Thinking the screen detects pressure, which is wrong for most phones because they mainly detect changes in capacitance caused by your finger.
- Assuming the glass itself senses touch, which is wrong because the sensing electrodes are usually transparent layers beneath or within the glass stack.
- Believing any object will work like a finger, which is wrong because plastic, wood, and thick gloves usually do not change the electric field enough.
- Treating a touch location as one exact point, which is wrong because the controller estimates a center from a spread-out pattern of sensor changes.
Practice Questions
- 1 A touchscreen controller scans a sensor grid at 120 Hz. How much time passes between scans in seconds and in milliseconds?
- 2 A simplified screen has 18 row electrodes and 32 column electrodes. If each row-column intersection is checked, how many sensor locations are scanned?
- 3 Explain why a bare finger can operate a capacitive touchscreen but a thick wool glove usually cannot.
