Chords, secants, and tangents are basic geometric objects that describe how lines interact with circles. They appear in many geometry problems because they connect angle relationships, segment lengths, and properties of circles. Learning to identify each one helps students solve diagrams quickly and avoid mixing up similar terms.
These ideas also show up in design, engineering, and any situation involving circular motion or curved boundaries.

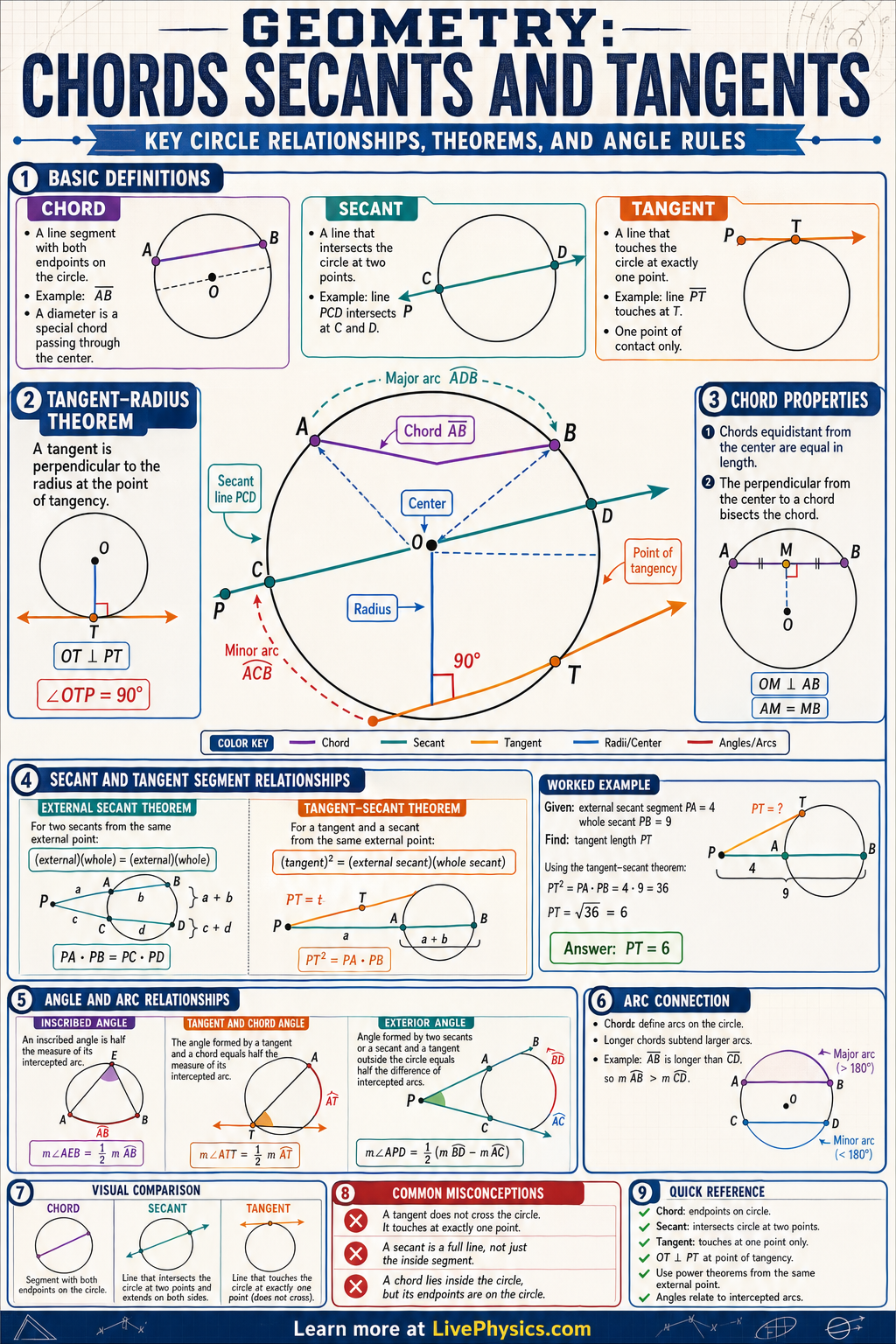

A chord is a segment with both endpoints on a circle, a secant is a line that cuts through a circle at two points, and a tangent touches the circle at exactly one point. These definitions lead to useful theorems about lengths and angles. For example, a radius drawn to the point of tangency is perpendicular to the tangent line.
Students often use power of a point relationships, such as tangent squared equals outside secant times whole secant, to solve for unknown lengths.
Understanding Chords, Secants, and Tangents
The right angle at a point of tangency is more than a fact to memorize. It gives a fast way to test a diagram. The shortest distance from the center of a circle to any line is measured along a perpendicular.
For a line to touch the circle without crossing it, that shortest distance must equal the radius. If the radius to the touching point were not perpendicular to the line, the shortest distance would be less than the radius.
The line would then pass through the circle in two places. This idea explains why a radius and a tangent make a right triangle with many other segments in a problem.
Length rules for intersecting chords come from similar triangles. When two chords cross inside a circle, the crossing creates pairs of equal vertical angles. Other angles in the small triangles are equal because they intercept the same arcs of the circle.
Once the triangles are similar, their corresponding side ratios can be multiplied and rearranged. That produces the product rule for the two pieces of each chord. The important detail is that every length used is a piece measured from the crossing point.
Students often mistakenly use the full length of a chord. The rule applies only when the two chords meet inside the circle.
A point outside a circle has its own fixed power. Every secant drawn from that point gives the same product of its outside part and its full distance to the far side of the circle. A tangent from that same point fits this pattern because its length squared equals that fixed power.
One way to picture this is to rotate a secant toward the circle until its two intersection points move together at the touching point. This relationship is useful when a diagram contains one straight path through a circle and one path that just touches it.
Be careful to distinguish the external secant part from the entire secant. The entire length includes the section inside the circle.
These relationships appear whenever straight paths meet round objects. A belt wrapped around circular pulleys follows tangent directions where it leaves each pulley. A surveyor or designer may use tangents to locate a straight boundary that just clears a circular tank or track.
In geometry, look first for the location of the intersection point. Inside the circle usually signals chord products. Outside the circle may signal secant or tangent products.
A center connected to a touching point signals a right angle. Draw extra radii when they help, label each segment carefully, and do not trust a diagram to be accurately scaled.
Key Facts
- A chord is a line segment whose endpoints both lie on the circle.
- A secant is a line that intersects a circle at two points.
- A tangent is a line that touches a circle at exactly one point.
- A radius to the point of tangency is perpendicular to the tangent line.
- If two chords intersect inside a circle, then , where and are the parts of one chord and and are the parts of the other.
- If a tangent and a secant are drawn from the same external point, then , where is the tangent length, is the external secant part, and is the internal secant part.
Vocabulary
- Chord
- A chord is a segment with both endpoints on a circle.
- Secant
- A secant is a line that passes through a circle and intersects it at two points.
- Tangent
- A tangent is a line that touches a circle at exactly one point.
- Point of tangency
- The point of tangency is the single point where a tangent touches a circle.
- Radius
- A radius is a segment from the center of a circle to a point on the circle.
Common Mistakes to Avoid
- Calling any segment inside a circle a chord, which is wrong because a chord must have both endpoints on the circle.
- Confusing a secant with a tangent, which is wrong because a secant crosses the circle at two points while a tangent touches it at only one point.
- Forgetting that the radius to the point of tangency makes a right angle with the tangent, which is wrong because this perpendicular relationship is a key theorem used in many proofs and calculations.
- Using the tangent-secant formula incorrectly, which is wrong because the correct relationship is tangent^2 = external part x whole secant, not external part x internal part.
Practice Questions
- 1 A secant from an external point has an outside segment of length 4 and an inside segment of length 9. Find the tangent length from the same external point.
- 2 Two chords intersect inside a circle. One chord is split into segments of lengths 3 and 8. The other chord is split into segments of lengths 4 and x. Find x.
- 3 Explain why a line through the endpoint of a radius is a tangent only when it is perpendicular to that radius.
