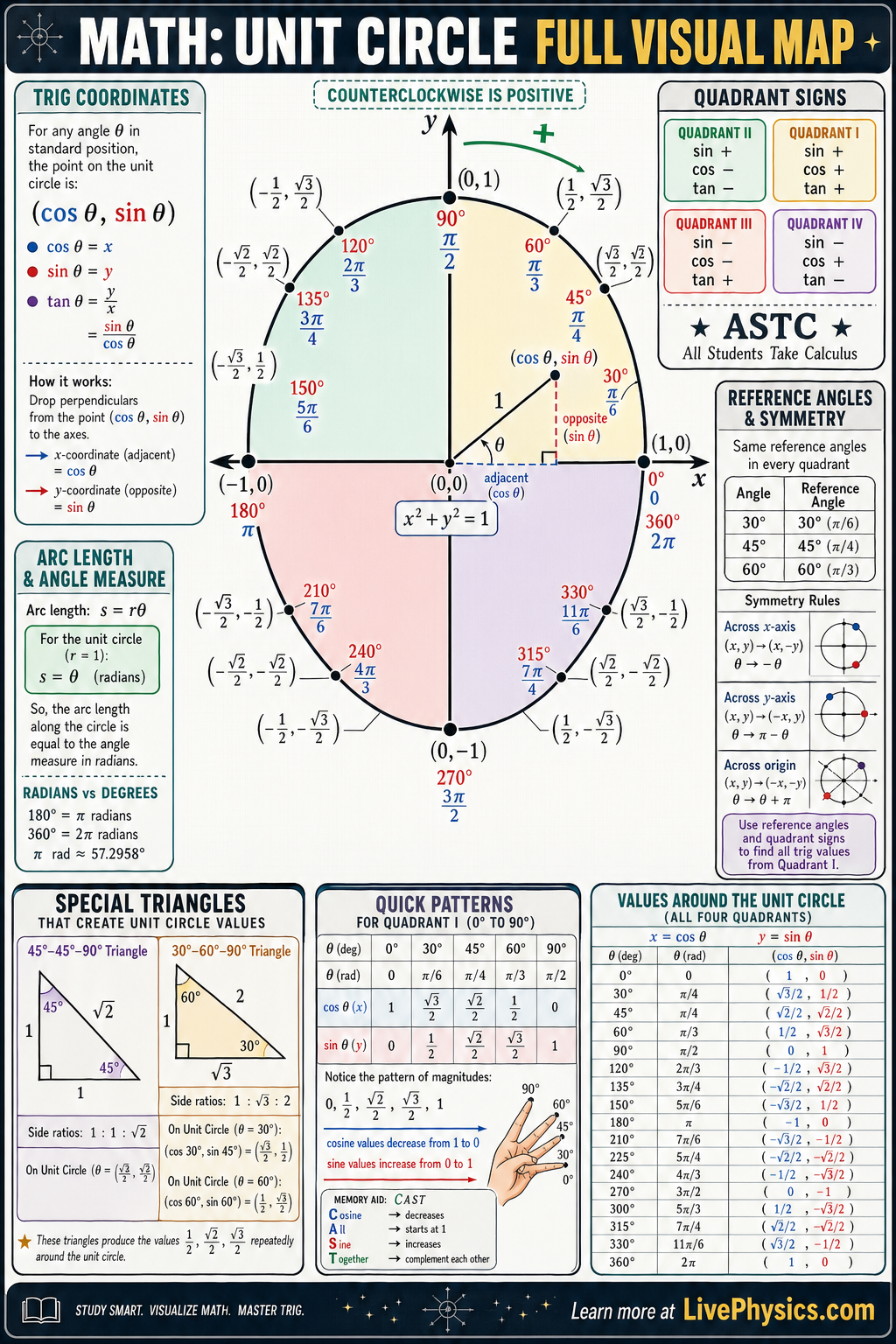

Unit Circle (Full Visual Map) infographic - All Angles, Exact Values, and Quadrant Signs

Click image to open full size

Math

Unit Circle (Full Visual Map)

All Angles, Exact Values, and Quadrant Signs

Download PNG Save to Pinterest

Related Tools

Related Labs

Related Worksheets

Related Cheat Sheets

The unit circle is a circle of radius 1 centered at the origin, and it is one of the most important visual tools in trigonometry. It connects angles, coordinates, and trig functions in a single diagram. By learning the unit circle, students can quickly find exact values of sine, cosine, and tangent for many common angles. It also helps build a foundation for graphing periodic functions and solving equations.

Each point on the unit circle corresponds to an angle measured from the positive x-axis, and that point has coordinates (cos⁡θ,sin⁡θ)(\cos \theta, \sin \theta). This means cosine gives the horizontal position and sine gives the vertical position. Tangent can then be found from tan⁡θ=sin⁡θcos⁡θ\tan \theta = \frac{\sin \theta}{\cos \theta} when cos⁡θ\cos \theta is not zero. The signs of these values change by quadrant, so the full circle acts like a map of trig behavior.

Key Facts

  • Unit circle equation: x2+y2=1x^2 + y^2 = 1
  • For an angle θ\theta, the point on the circle is (cos⁡θ,sin⁡θ)(\cos \theta, \sin \theta)
  • tan⁡θ=sin⁡θcos⁡θ\tan \theta = \frac{\sin \theta}{\cos \theta}
  • 180180 degrees =π= \pi radians
  • Reference angle helps find exact trig values using related acute angles
  • Quadrant signs: I (+,+)(+,+), II (−,+)(-,+), III (−,−)(-,-), IV (+,−)(+,-) for (cos⁡θ,sin⁡θ)(\cos \theta, \sin \theta)

Vocabulary

Unit circle
A circle with radius 1 centered at the origin of the coordinate plane.
Radians
A way to measure angles based on arc length, where a full circle is 2pi radians.
Reference angle
The acute angle formed between the terminal side of an angle and the x-axis.
Terminal side
The final position of a ray after it rotates from its starting side to form an angle.
Quadrant
One of the four regions of the coordinate plane created by the x-axis and y-axis.

Common Mistakes to Avoid

  • Mixing up sine and cosine, which is wrong because on the unit circle cosine is the x-coordinate and sine is the y-coordinate. Always read points as (cos⁡θ,sin⁡θ)(\cos \theta, \sin \theta).
  • Using degree values in place of radian values without converting, which is wrong because many unit circle formulas and labels are written in radians. Use 180180 degrees =π= \pi radians to convert correctly.
  • Forgetting signs in different quadrants, which is wrong because the same reference angle has different coordinate signs depending on location. Check whether x and y should be positive or negative before writing trig values.
  • Computing tangent when cosine equals zero, which is wrong because tan⁡θ=sin⁡θcos⁡θ\tan \theta = \frac{\sin \theta}{\cos \theta} and division by zero is undefined. At angles like π2\frac{\pi}{2} and 3π2\frac{3\pi}{2}, tangent does not exist.

Practice Questions

  1. 1 Find the coordinates on the unit circle for θ=5π6\theta = \frac{5\pi}{6}, and then give sin⁡θ\sin \theta, cos⁡θ\cos \theta, and tan⁡θ\tan \theta.
  2. 2 Convert 225 degrees to radians, then state the unit circle coordinates for that angle.
  3. 3 Angles 30 degrees and 150 degrees have the same reference angle. Explain why their sine values are equal but their cosine values have opposite signs.
