Unit Circle Explorer

Drag the point around the circle or type an angle. See all six trig values update in real time, with exact forms for standard angles.

Angle°

Point on Circle

\left(\frac{\sqrt{2}}{2},\; \frac{\sqrt{2}}{2}\right)

(0.7071, 0.7071)

Angle

Degrees

45°

Radians

\frac{\pi}{4}

Reference Angle

45°

Quadrant

I

Signs in Quadrant I

sin +cos +tan +csc +sec +cot +

Trigonometric Values

sin θ+

\frac{\sqrt{2}}{2}

csc θ+

\sqrt{2}

cos θ+

\frac{\sqrt{2}}{2}

sec θ+

\sqrt{2}

tan θ+

1

cot θ+

1

Exact values shown for this standard angle.

Open this tool with your own values

This tool reads its inputs from the page address, so a link can open it with the values from a problem already entered. Include every value the problem needs, because one left out keeps the tool's default. Use plain numbers in the stated units.

a: angle in degrees

Example link

https://livephysics.com/tools/unit-circle-explorer/?a=210

Reference Guide

What is the Unit Circle?

The unit circle is a circle with radius 1, centered at the origin of a coordinate plane. Any point on the circle can be written as $(\cos\theta,\; \sin\theta)$ where $\theta$ is the angle measured counterclockwise from the positive x-axis.

x^2 + y^2 = 1

This connects angle measurement directly to coordinate geometry. Every trigonometric function can be defined in terms of the unit circle.

CAST Rule (Signs by Quadrant)

Q II

Sin +

Q I

All +

Q III

Tan +

Q IV

Cos +

The mnemonic "All Students Take Calculus" names the positive function going counterclockwise from Q I. The reciprocal function shares the same sign as its primary.

Standard Angle Exact Values

Angle	0°	30°	45°	60°	90°
sin	$0$	$\frac{1}{2}$	$\frac{\sqrt{2}}{2}$	$\frac{\sqrt{3}}{2}$	$1$
cos	$1$	$\frac{\sqrt{3}}{2}$	$\frac{\sqrt{2}}{2}$	$\frac{1}{2}$	$0$
tan	$0$	$\frac{\sqrt{3}}{3}$	$1$	$\sqrt{3}$	undef

Values for angles beyond 90° can be found using the reference angle and the CAST rule for signs.

Fundamental Trig Identities

Pythagorean

\sin^2\theta + \cos^2\theta = 1

1 + \tan^2\theta = \sec^2\theta

1 + \cot^2\theta = \csc^2\theta

Reciprocal

\csc\theta = \frac{1}{\sin\theta}, \quad \sec\theta = \frac{1}{\cos\theta}, \quad \cot\theta = \frac{1}{\tan\theta}

Quotient

\tan\theta = \frac{\sin\theta}{\cos\theta}, \quad \cot\theta = \frac{\cos\theta}{\sin\theta}

Geometric Meaning

Toggle the colored lines on the circle to see what each trig function represents geometrically.

Sine. The vertical distance from the x-axis up (or down) to the point on the circle.

Cosine. The horizontal distance from the origin to where the point projects onto the x-axis.

Tangent. The length of the segment along the vertical tangent line at (1, 0), from the x-axis to where the extended radius meets it.

TopicsTrigonometry Functions Graphs Shapes Mathematics

Related Content

Visual Explainers

How Spirals Show Up Everywhere in Nature

A pattern made by growth and ratio

Why Bees Build Hexagons Not Squares

A shape that saves wax while filling space

Why Is Dividing by Zero Impossible?

A rule that protects number sense

Why Can Averages Be Misleading?

How one number can hide the shape of data

Related Tools

MAP Growth Grade 3 Math Practice

Original independent MAP Growth Grade 3 Math skill practice with explanations, adjustable difficulty and first-attempt progress; no official RIT score.

MAP Growth Grade 4 Math Practice

Original independent MAP Growth Grade 4 Math skill practice with explanations, adjustable difficulty and first-attempt progress; no official RIT score.

MAP Growth Grade 5 Math Practice

Original independent MAP Growth Grade 5 Math skill practice with explanations, adjustable difficulty and first-attempt progress; no official RIT score.

MAP Growth Grade 6 Math Practice

Original independent MAP Growth Grade 6 Math skill practice with explanations, adjustable difficulty and first-attempt progress; no official RIT score.

Related Labs

Trigonometric & Polar Functions Lab

Explore sinusoidal parameters (amplitude, period, phase, shift), inverse trig functions with domain restrictions, and polar curve classification including cardioids, roses, limaçons, and spirals

Angle Builder Lab

Build angles from 0° to 360° using a slider, classify each as acute, right, obtuse, straight, or reflex, and record data to discover the boundaries between angle types and the landmark turn angles.

Similarity & Triangle Trigonometry Lab

Test AA/SAS/SSS similarity, solve right triangles with SOH CAH TOA, apply Law of Sines and Cosines, and explore the ambiguous SSA case with interactive triangle diagrams

Circle Theorems & Tangency Lab

Explore inscribed angle theorem, Thales' theorem, intersecting chord products, secant angles, tangent perpendicularity, and power of a point with interactive circle diagrams

Study Posters

$Unit Circle (Full Visual Map)$

Unit Circle (Full Visual Map)

$Unit Circle$

$Math, Reference Angles and Coterminal Angles$

Math, Reference Angles and Coterminal Angles

$Math, Radians and Degrees$

Math, Radians and Degrees

Worksheets

Math, Unit Circle and Trigonometry

Which Trig Functions Are Positive per Quadrant Practice

Math, Trigonometric Sum, Difference, and Double-Angle Identities

Trigonometry Right Triangles

Cheat Sheets

$Trigonometry Ratios & Unit Circle$

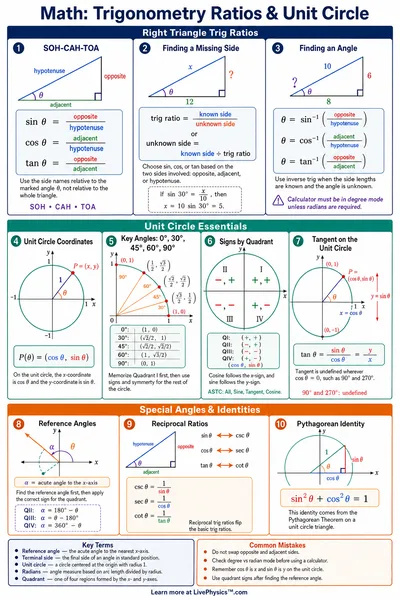

Trigonometry Ratios & Unit Circle

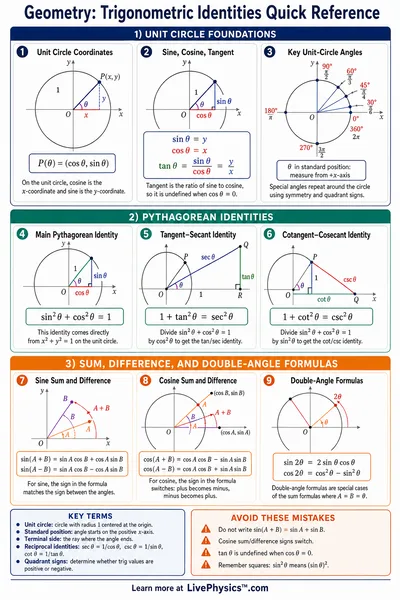

Trigonometric Identities Quick Reference

MathGrade 10-12

$Trigonometric Identities$

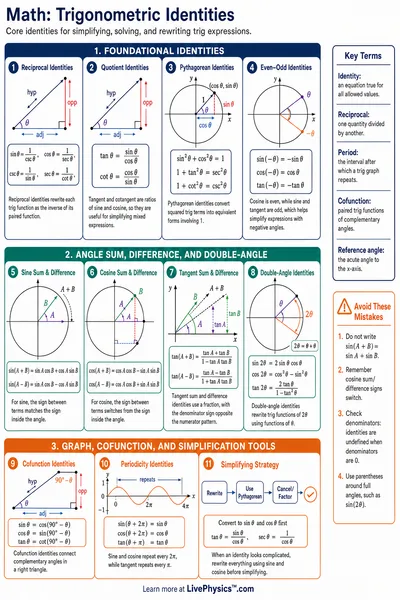

Trigonometric Identities

MathGrade 10-12

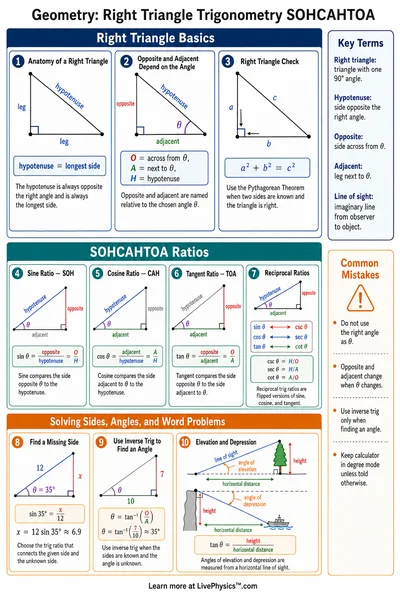

Right Triangle Trigonometry SOHCAHTOA
