Electromagnetic induction is the process of producing a voltage when the magnetic environment of a conductor changes. It is the basic principle behind electric generators, transformers, and many everyday technologies. In a generator, mechanical energy is converted into electrical energy by moving a coil through a magnetic field.
Understanding this idea helps explain how power plants and small hand-crank devices make electricity.

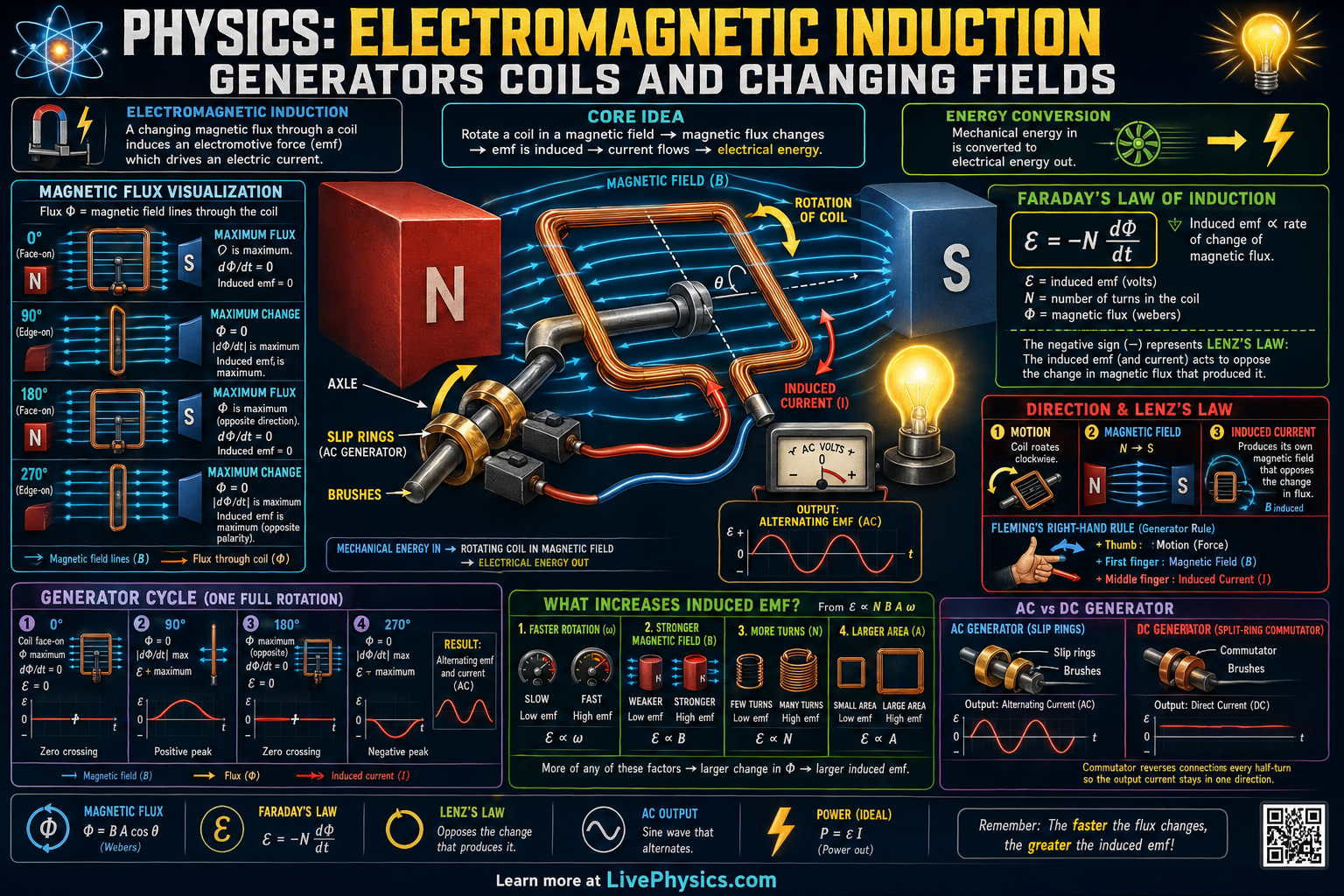

A rotating coil between the north and south poles of a magnet experiences a changing magnetic flux. As the angle of the coil changes, the amount of magnetic field passing through it changes, and this induces an emf according to Faraday's law. The direction of the induced current is determined by Lenz's law, which says the induced current opposes the change that caused it.
Faster rotation, stronger magnets, and more turns in the coil all increase the induced voltage.
Understanding Electromagnetic Induction
Magnetic flux is best understood as a measure of how much magnetic field passes through a chosen surface. The surface can be the area inside a wire loop. A field has direction, so its alignment with the loop matters.
A loop facing the field receives the greatest flux. A loop turned edge-on receives almost none. Induction does not require a magnet to physically touch a wire.
The important event is a change in the field passing through the loop. This can happen by moving the magnet, moving the wire, changing the loop area, or changing the strength of an electromagnet.
An induced emf is a voltage, not necessarily a sustained current. If a coil is part of an open circuit, charges separate slightly at its ends and produce a measurable voltage. With no complete path, very little current flows.
If the circuit is closed, the voltage pushes charges around the circuit. The size of that current then depends on the total resistance. This distinction matters in experiments.
A sensitive meter may show a voltage from a moving magnet, while a lamp needs enough current as well as enough voltage to glow. The induced effect lasts only while the flux is changing. Holding a magnet still inside a coil gives no continuing induced current.
Lenz's law is a consequence of energy conservation. Suppose a magnet moves toward a conducting loop. The induced current produces a magnetic field that resists the magnet's approach.
A person pushing the magnet must do work against this resistance. That work becomes electrical energy, which may later become heat, light, sound, or motion in a device. If the induced current helped the magnet move without any effort, energy would appear from nowhere.
The opposing effect is often easy to feel with strong magnets near metal. It can produce magnetic braking in trains, exercise bikes, and some amusement rides.
Transformers use induction without rotating parts. An alternating current in one coil creates a magnetic field that repeatedly changes. A nearby second coil experiences this changing field and develops a voltage.
The number of turns in each coil controls whether the second voltage is larger or smaller. This is why electricity is sent long distances at high voltage, then reduced before reaching homes. When learning direction, separate the steps carefully.
First decide whether the original flux is increasing or decreasing. Next choose the induced magnetic field that opposes that change.
Then use a right-hand rule to find the current direction. Reversing a motion reverses the induced voltage, which is why rotating generators naturally produce alternating current.
Key Facts
- Faraday's law: emf = -N(dPhi/dt)
- Magnetic flux:
- For a rotating coil, flux changes because changes with time.
- Greater N, greater B, greater A, or faster rotation gives larger induced emf.
- Lenz's law: the induced current creates a magnetic effect that opposes the change in flux.
- In a simple generator, mechanical work on the coil is converted into electrical energy.
Vocabulary
- Electromagnetic induction
- The production of a voltage in a conductor because the magnetic flux through it changes.
- Magnetic flux
- A measure of how much magnetic field passes through a surface, given by Phi = BA cos(theta).
- EMF
- Electromotive force is the induced voltage that drives charge around a circuit.
- Faraday's law
- The law stating that induced emf equals the negative rate of change of magnetic flux times the number of turns.
- Lenz's law
- The rule that the induced current flows in a direction that opposes the change in magnetic flux.
Common Mistakes to Avoid
- Using for every situation, which is wrong because the angle matters and the correct expression is .
- Forgetting the negative sign in Faraday's law, which is wrong because the sign shows the direction effect described by Lenz's law.
- Assuming a magnetic field alone always induces current, which is wrong because current is induced only when the flux changes.
- Thinking the current is largest when the flux is largest, which is wrong because emf depends on how fast flux changes, not on the flux value itself.
Practice Questions
- 1 A coil has 50 turns and an area of . It is perpendicular to a uniform magnetic field of . What is the magnetic flux through one turn?
- 2 A 200-turn coil experiences a change in magnetic flux from 0.030 Wb to 0.010 Wb in 0.50 s. What is the magnitude of the average induced emf?
- 3 A coil rotates steadily in a magnetic field. Explain why the induced current changes direction every half turn.
