Friction is a contact force that resists motion or attempted motion between surfaces. It matters because it affects everything from walking and driving to machines and sports. Two important types are static friction, which acts when surfaces are not sliding, and kinetic friction, which acts when they are sliding.
Understanding the difference helps students predict when objects start moving and how they behave once in motion.
Static friction adjusts its size to match an applied force up to a maximum value, so it can keep an object at rest. Kinetic friction usually has a nearly constant magnitude once sliding begins, and it is often smaller than the maximum static friction for the same surfaces. This is why an object can be hard to start moving but easier to keep moving.
Both types depend on the normal force and the nature of the surfaces in contact.
Understanding Friction: Static vs Kinetic

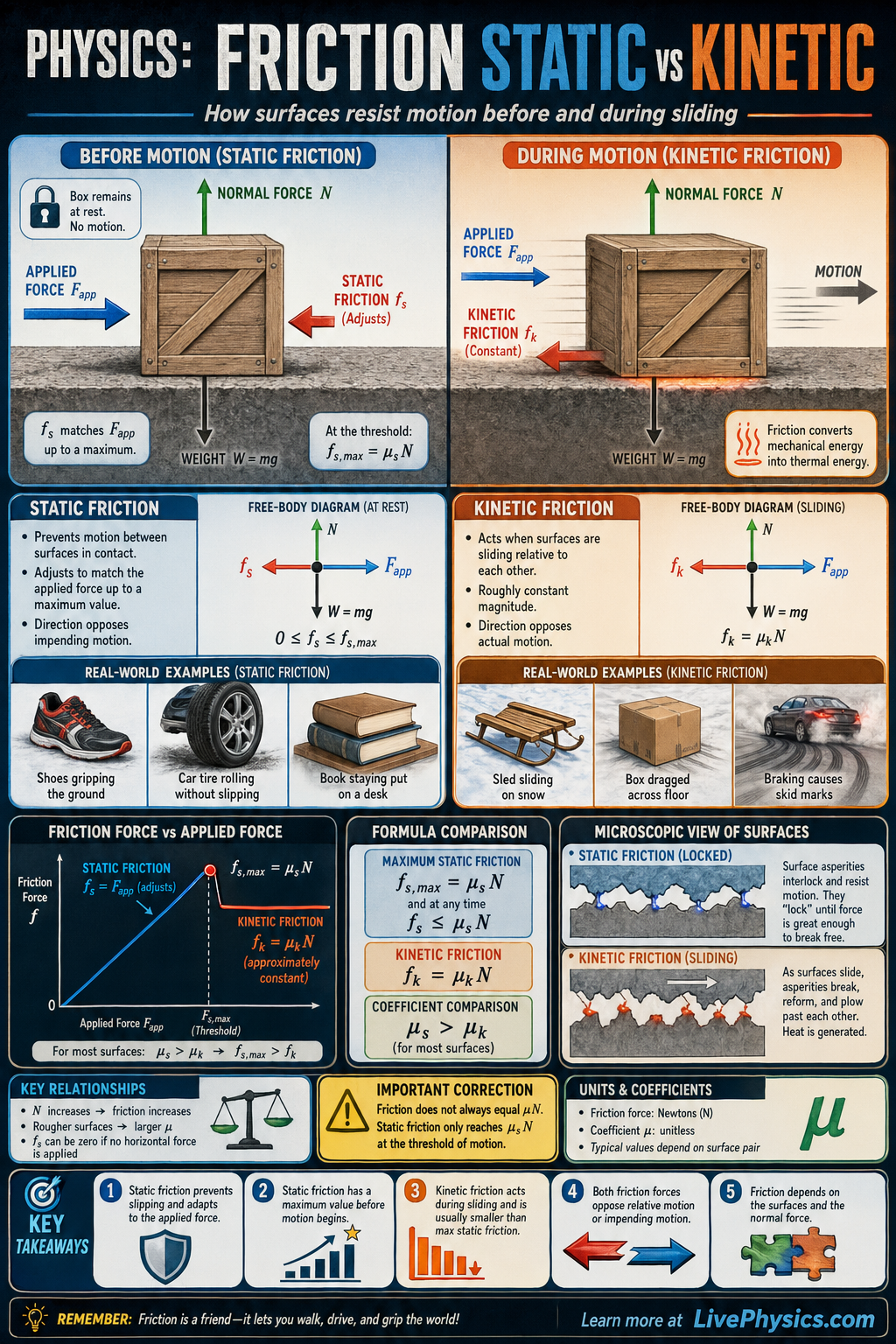

A force diagram helps separate the forces that matter. For a box on a level floor, gravity pulls downward and the floor pushes upward with a normal force. These vertical forces often balance.
A push acts sideways. Friction acts sideways in the opposite direction from the way the box would slip without friction. The normal force is not always equal to weight.
On a ramp, part of the weight presses into the surface, so the normal force is smaller. A downward push increases the normal force and can increase the available friction. Pulling upward can reduce it.
Static friction is often misunderstood as a fixed force. It is a response force. If a person pushes a heavy crate with ten newtons and the crate remains still, static friction is ten newtons in the other direction.
If the push becomes twenty newtons, static friction becomes twenty newtons, provided its limit has not been reached. Students should not automatically use the maximum static friction in every resting-object problem.
First determine the friction needed for balance. Use the maximum value only to check whether the surface can supply enough friction to prevent slipping.
The coefficient of friction is a number that describes a particular pair of surfaces under particular conditions. It is not a universal property of one material by itself. Rubber on dry concrete can have a very different coefficient from rubber on wet concrete.
Dust, oil, water, wear, temperature, and surface texture can change the result. The simple friction models used in school work best when surfaces are dry and the normal force is steady. Real sliding friction may vary slightly with speed or heating, but treating it as constant is useful for many predictions.
A useful real example is walking. Your shoe pushes backward on the ground. Static friction from the ground pushes your shoe forward, which moves you ahead without slipping.
A car accelerates through the same idea because the tires push backward on the road. During hard braking, tires need static friction to roll without skidding. Once a tire skids, kinetic friction acts and steering control is reduced.
On ramps, compare the downhill part of gravity with the largest possible static friction. If gravity wins, the object begins to slide. After that point, redraw the force diagram because the friction type and the net force may have changed.
Key Facts
- Static friction prevents slipping and acts only as large as needed until a limit is reached.
- Maximum static friction:
- Kinetic friction while sliding:
- Usually mu_s > mu_k for the same pair of surfaces.
- Friction acts parallel to the contact surface and opposite the actual or impending motion.
- If applied force exceeds f_s,max, the object starts moving and static friction changes to kinetic friction.
Vocabulary
- Static friction
- The friction force that prevents two surfaces from starting to slide relative to each other.
- Kinetic friction
- The friction force that acts between surfaces that are already sliding past each other.
- Coefficient of friction
- A number that describes how strongly two surfaces resist sliding, written as .
- Normal force
- The support force exerted by a surface on an object, acting perpendicular to the surface.
- Impending motion
- The condition in which an object is just about to start moving but is still at rest.
Common Mistakes to Avoid
- Assuming static friction always equals mu_s N, which is wrong because static friction can be any value from zero up to its maximum depending on the applied force.
- Using kinetic friction before the object starts sliding, which is wrong because kinetic friction applies only after relative motion begins.
- Forgetting that friction opposes relative motion or attempted motion, which is wrong because friction does not always point opposite the applied force.
- Treating the coefficient of friction as a force, which is wrong because is unitless and must be multiplied by the normal force to find friction.
Practice Questions
- 1 A 12 kg box rests on a horizontal floor with . Find the maximum static friction force if .
- 2 A 15 kg crate slides across a floor with . What is the kinetic friction force if ?
- 3 A student pushes a heavy box gently and it does not move, but when pushed harder it starts sliding and then seems easier to keep moving. Explain this using static and kinetic friction.
