Impulse and collisions explain how forces change motion during short interactions like a bat hitting a ball or two carts bumping on a track. These ideas matter because they connect force, time, momentum, and energy in one event. By studying collisions, students can predict final speeds and understand why some impacts are bouncy while others involve sticking or deformation.
The topic is central in mechanics, engineering, sports science, and vehicle safety.

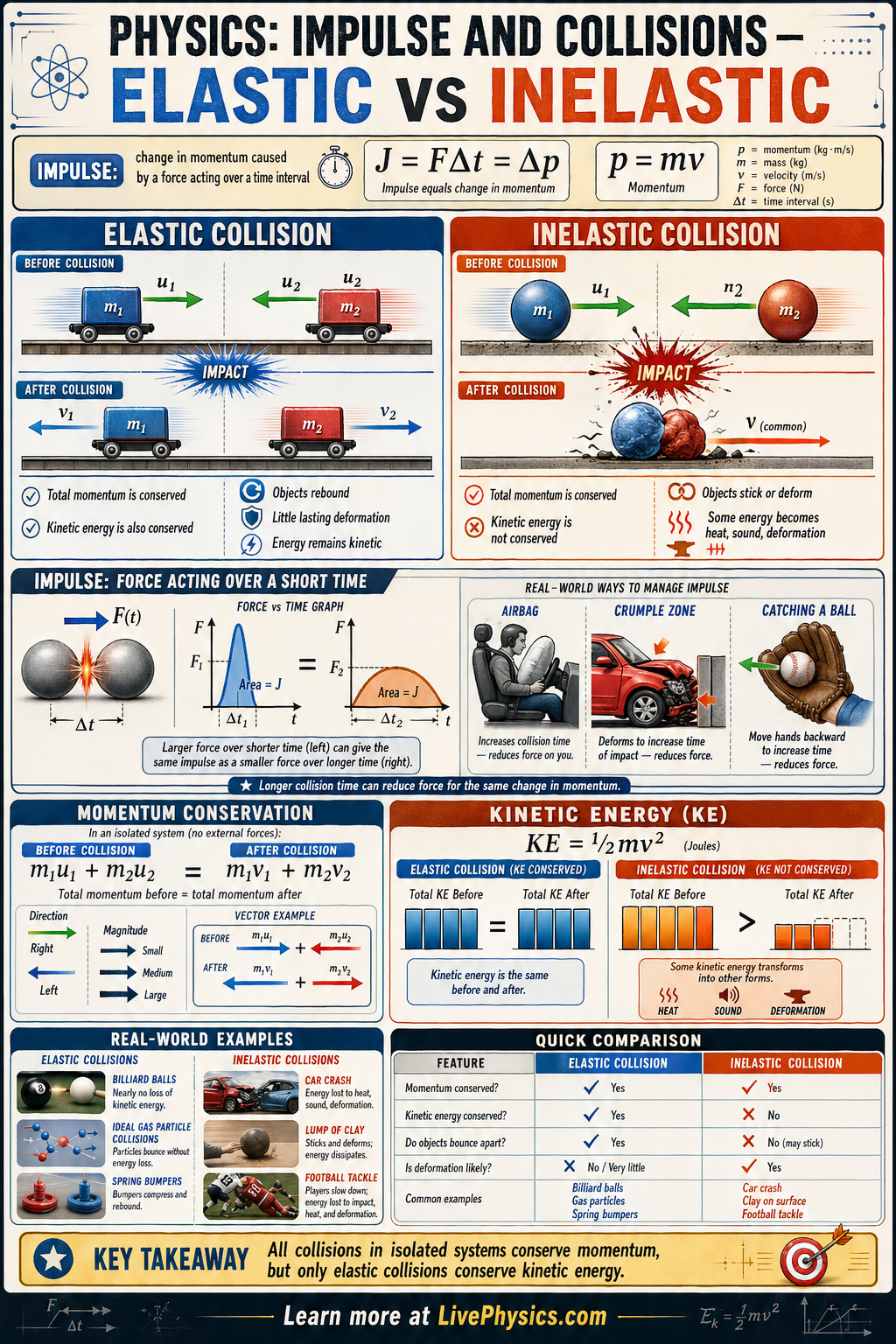

Impulse is the product of force and the time interval over which it acts, and it equals the change in momentum of an object. In every isolated collision, total momentum is conserved, but kinetic energy is conserved only in elastic collisions. In an inelastic collision, some kinetic energy is transformed into sound, heat, or internal deformation.
Comparing elastic and inelastic cases helps students separate what is always conserved from what depends on the type of interaction.
Understanding Impulse and Collisions
A collision force is rarely constant from the first instant to the last. It usually rises rapidly, reaches a peak, then falls as the objects separate or stop moving together. A force against time graph shows this changing force.
The area under the graph gives the impulse. A narrow graph can have a very high peak force, while a wider graph can give the same impulse with a lower peak. This is why the duration of an impact matters so much.
A catcher moves their hands backward while receiving a fast ball. The ball needs nearly the same momentum change, but the longer stopping time reduces the force on the hands.
Momentum has direction, so collision problems need a clear choice of positive direction before any calculation begins. Motion to the right might be positive, while motion to the left is negative. A cart that rebounds has a final velocity with the opposite sign from its initial velocity.
That sign change means its momentum change can be much larger than students first expect. Momentum conservation applies to a chosen system when the external impulse on that system is negligible during the collision. For two carts on a low friction track, the contact forces between the carts are internal forces.
They occur in equal size and opposite directions, so they cannot change the total momentum of the two-cart system. A large external force, such as a wall or the ground, means the system choice must be reconsidered.
The coefficient of restitution describes how quickly two objects separate compared with how quickly they approached. It is found by dividing relative speed after impact by relative speed before impact. A value of one represents an ideal elastic collision in one dimension.
A value of zero represents objects leaving with no relative separation speed, which happens when they stick together. Most ordinary impacts have a value between zero and one.
A tennis ball on concrete, a rubber ball on a floor, and a lump of clay each have different values because their materials store and release energy differently. In unusual cases, the value can exceed one when stored energy is released, such as during an explosion or a spring-loaded interaction.
Kinetic energy that does not remain as motion has not disappeared. During impact, surfaces may compress, bend, heat up, vibrate, or make sound. A crumple zone in a car is designed to deform in a controlled way.
This deformation lengthens the time of the collision and absorbs energy, reducing the force transferred to passengers. Helmets, padding, landing mats, and packaging use the same idea. When solving problems, sketch the objects before and after the event.
Label masses, directions, and whether objects rebound or move together. Use momentum conservation first when the system is isolated.
Then use the collision information, such as sticking together or a coefficient of restitution, to find the remaining unknowns. Keep momentum conservation separate from kinetic energy conservation, since confusing these two rules causes many errors.
Key Facts
- Momentum is .
- Impulse is .
- Impulse equals change in momentum: .
- Total momentum is conserved in an isolated system: Σpi = Σpf.
- Kinetic energy is .
- Elastic collisions conserve both momentum and kinetic energy, while inelastic collisions conserve momentum but not kinetic energy.
Vocabulary
- Momentum
- Momentum is the quantity of motion of an object, equal to its mass times its velocity.
- Impulse
- Impulse is the effect of a force acting over a time interval and equals the change in momentum.
- Elastic collision
- An elastic collision is a collision in which total momentum and total kinetic energy are both conserved.
- Inelastic collision
- An inelastic collision is a collision in which momentum is conserved but some kinetic energy is converted into other forms.
- Isolated system
- An isolated system is a system with no significant external force, so its total momentum stays constant.
Common Mistakes to Avoid
- Assuming kinetic energy is always conserved in every collision, which is wrong because only elastic collisions conserve total kinetic energy.
- Ignoring direction when using momentum, which is wrong because momentum is a vector and opposite velocities must have opposite signs.
- Using momentum conservation for one object instead of the whole system, which is wrong because momentum is conserved for the combined isolated system of all colliding objects.
- Confusing force with impulse, which is wrong because impulse depends on both the force and how long it acts, not just the force alone.
Practice Questions
- 1 A 0.50 kg ball moving at 8.0 m/s to the right is hit and leaves at 6.0 m/s to the left. What impulse acts on the ball?
- 2 A 2.0 kg cart moving at 4.0 m/s to the right collides and sticks to a 3.0 kg cart initially at rest. What is their final velocity?
- 3 Two collisions have the same total momentum before and after impact. One is elastic and one is inelastic. Explain how the kinetic energy behavior differs and what physical signs might show that energy changed form.
