Lenses and mirrors control the path of light to form images. A converging (convex) lens bends light rays toward a focal point; a diverging (concave) lens bends them outward. Concave mirrors focus parallel rays to a point; convex mirrors spread them.
The image formed can be real or virtual, upright or inverted, magnified or reduced - and the thin lens equation plus sign conventions let you predict exactly which.
Ray diagrams are the standard tool for analyzing optical systems. Three principal rays for a lens (parallel to axis, through focal point, through center) always converge at the image location. Practicing ray diagrams by hand builds intuition before plugging numbers into formulas.
Understanding Lenses and Mirrors
A lens works because light changes speed when it enters glass or plastic from air. This change in speed makes the ray change direction. The curved surfaces set the direction of this bend.
A thicker center produces a different effect from a thinner center. Mirrors work by reflection instead. Each incoming ray leaves at the same angle on the other side of an imaginary line called the normal.
The normal is drawn perpendicular to the mirror surface at the point where the ray hits. This local rule explains why a curved mirror can bring many rays together or make them spread apart.

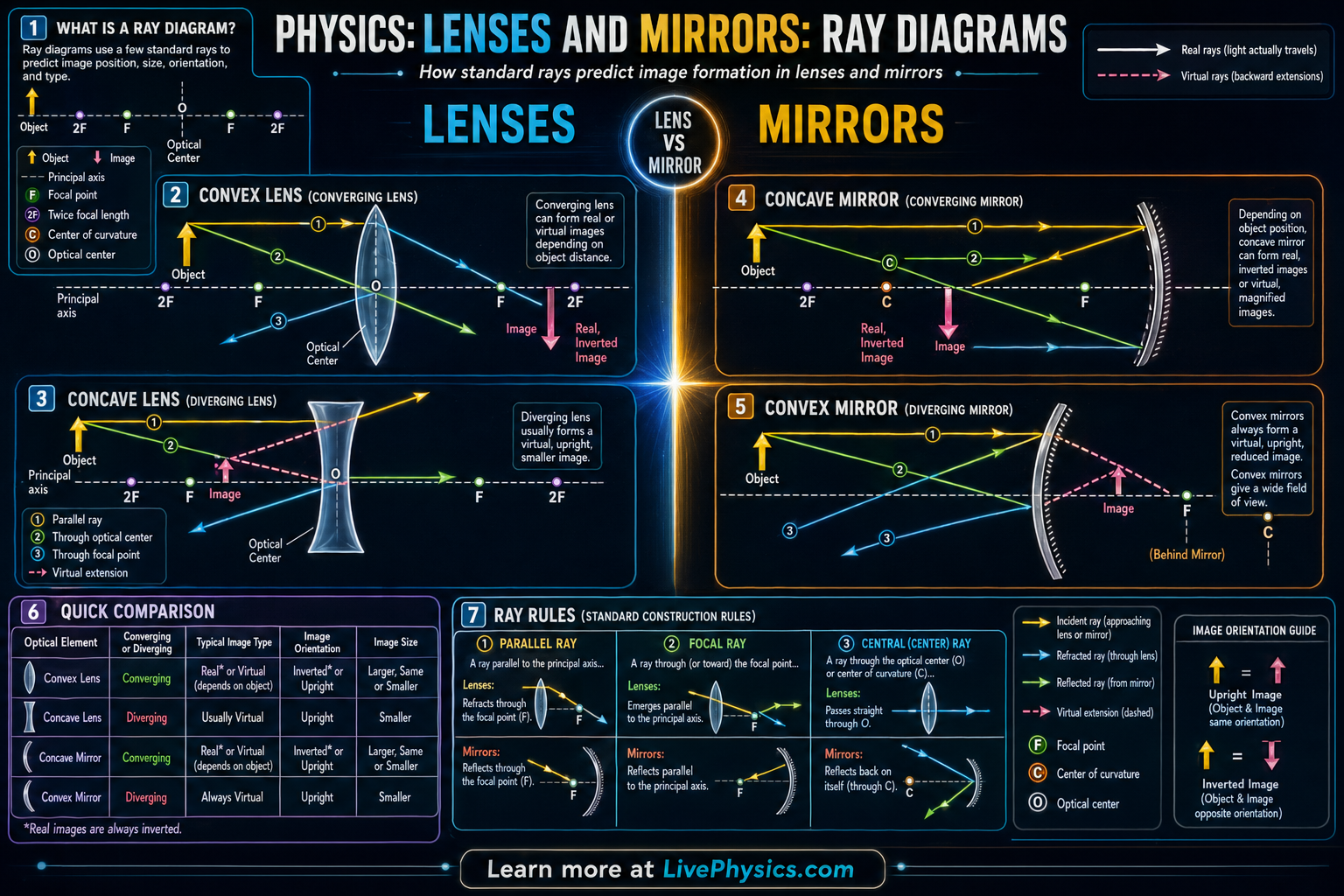

Ray diagrams are models, not photographs of every ray in a beam. They use a central line called the principal axis and a few carefully chosen rays from the top of the object. Draw the optical center, the focal points, and points twice as far from the lens or mirror before drawing rays.
Use a ruler because small angle errors can move the image a long way. Extend rays backward with dotted lines only when the rays do not truly meet. Where these backward extensions cross is the apparent source of the light.
This is why a virtual image cannot be placed on a screen. A screen needs real light rays to arrive at the same physical location.
Focal length tells you how strongly an optical device changes the direction of light. A short focal length means strong bending or strong curvature. A long focal length means weaker bending or a flatter shape.
The object distance matters just as much as focal length. Moving an object slightly when it is near the focal point can cause a very large change in image position and size. This is a practical reason cameras and microscopes need accurate focusing.
The lens or mirror equation connects these distances, but its signs carry physical meaning. A negative image distance indicates an image found by tracing rays backward.
A negative magnification indicates that the image is upside down. Keep the chosen direction system consistent from the start of a calculation.
Students meet these ideas in glasses, phone cameras, makeup mirrors, security mirrors, projectors, and telescopes. A camera lens shifts position to place a sharp real image on its sensor. A magnifying glass is held so the object is closer than its focal length, producing an enlarged view that the eye can inspect.
Convex security mirrors give a wide field of view because they reduce the size of images. When solving problems, first sketch the situation and predict whether the image should be larger or smaller. Then calculate.
Check whether the calculated result agrees with the sketch and with the device being described. This habit catches common mistakes such as mixing up focal points, measuring from the wrong surface, or treating a virtual image as if it could be projected.
Key Facts
- Thin lens/mirror equation: 1/f = 1/d_o + 1/d_i
- Magnification:
- Real images form on the opposite side of a lens from the object (same side for mirrors); virtual images do not.
- Converging lens: positive focal length. Diverging lens: negative focal length.
- Object beyond 2f: image is real, inverted, smaller. Object between f and 2f: image is real, inverted, larger.
- Object inside f (converging lens): virtual, upright, magnified image on same side as object.
Vocabulary
- Focal length (f)
- Distance from the lens or mirror to the focal point; positive for converging, negative for diverging.
- Real image
- An image formed where light rays actually converge; can be projected onto a screen.
- Virtual image
- An image formed where light rays appear to diverge from; cannot be projected onto a screen.
- Magnification
- Ratio of image height to object height. Positive = upright; negative = inverted.
- Focal point
- The point at which parallel rays converge after passing through a converging lens or reflecting from a concave mirror.
Common Mistakes to Avoid
- Using the wrong sign convention. Commit to one system (e.g. real is positive) and apply it consistently for all distances.
- Forgetting that a virtual image is upright. When m is positive, the image is upright - even if it's on the same side as the object.
- Assuming all mirrors/lenses produce the same kind of image. The object distance relative to f completely determines image type.
- Drawing ray diagrams with incorrect principal rays. The three standard rays must be drawn to the lens plane first before refracting.
Practice Questions
- 1 An object is placed 30 cm from a converging lens with f = 10 cm. Find the image distance and describe the image.
- 2 A diverging lens has f = -20 cm. Where is the image of an object 40 cm from the lens?
- 3 Use a ray diagram to show what happens when an object is placed inside the focal point of a magnifying glass.
