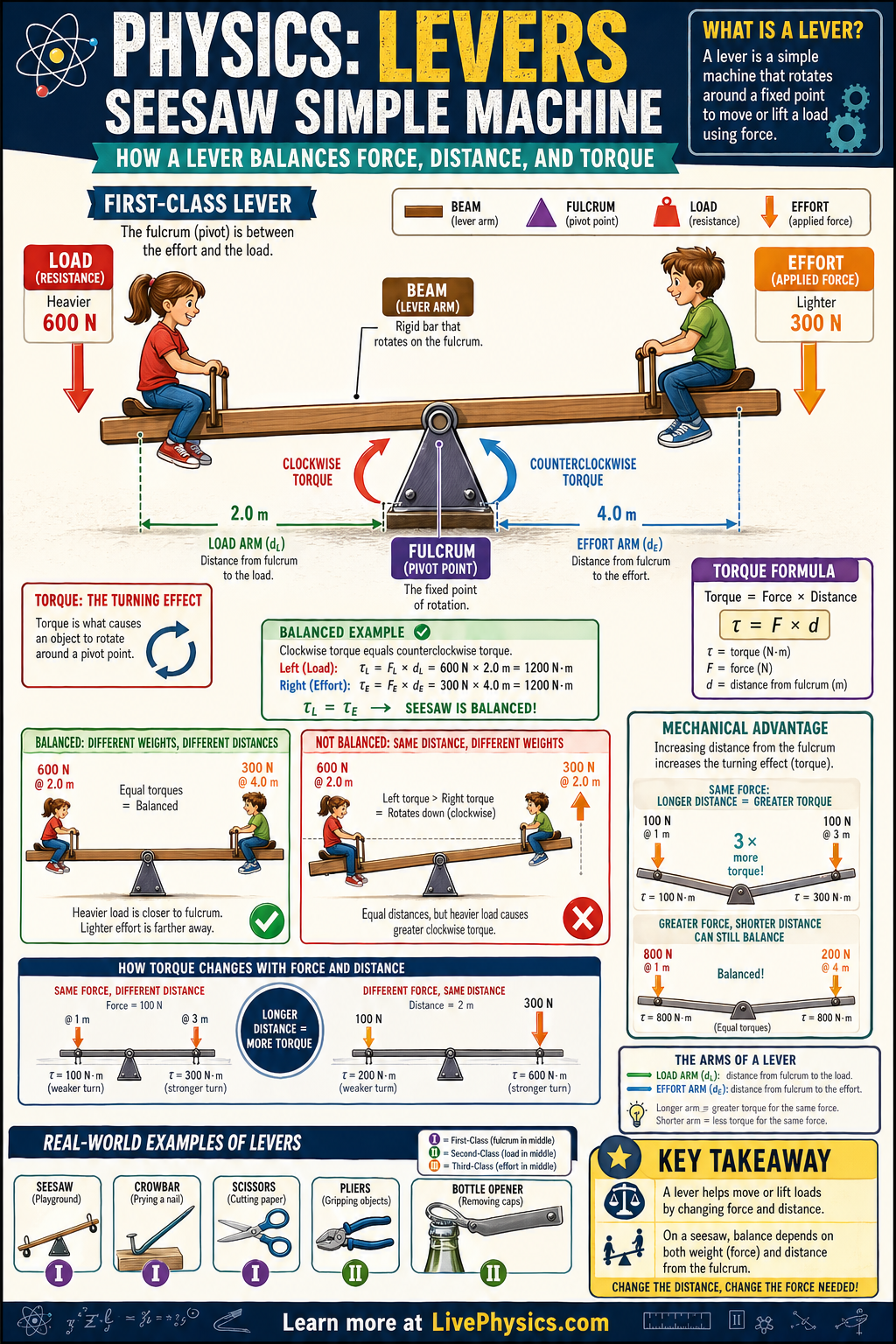

Click image to open full size
Levers and the Seesaw
Torque, Fulcrum, and Mechanical Advantage
Related Tools
Related Labs
A lever is one of the simplest machines, but it can greatly change how much force is needed to lift or balance an object. A seesaw is a classic example of a first class lever because the fulcrum sits between the effort force and the load. Studying levers helps students understand torque, rotational balance, and mechanical advantage. These ideas appear in playground equipment, tools, and many engineering systems.
A seesaw balances when the clockwise torque equals the counterclockwise torque about the fulcrum. Torque depends on both the force and the distance from the pivot, so a smaller force can balance a larger one if it acts farther away. In equation form, torque is given by tau = rF when the force is perpendicular to the beam. This is why moving closer to or farther from the fulcrum changes the motion so strongly.
Key Facts
- A first class lever has the fulcrum between the effort and the load.
- Torque for a perpendicular force is tau = rF.
- Rotational equilibrium occurs when sum of clockwise torques = sum of counterclockwise torques.
- For a balanced seesaw, F1d1 = F2d2.
- Mechanical advantage of an ideal lever is MA = output force / input force = effort arm / load arm.
- Increasing the distance from the fulcrum increases torque for the same force.
Vocabulary
- Lever
- A rigid bar that rotates around a fixed point to help move or balance a load.
- Fulcrum
- The pivot point about which a lever turns.
- Torque
- The turning effect of a force, found by multiplying force by its perpendicular distance from the pivot.
- Effort
- The input force applied to a machine to move or balance something.
- Load
- The object or resisting force that the machine acts on.
Common Mistakes to Avoid
- Using only the masses and ignoring distance from the fulcrum, which is wrong because balance depends on torque, not just on which side is heavier.
- Measuring the lever arm from the end of the beam instead of from the fulcrum, which is wrong because torque uses the perpendicular distance to the pivot point.
- Adding forces on opposite sides to test balance, which is wrong because rotational equilibrium requires comparing clockwise and counterclockwise torques.
- Assuming a longer side always has more force, which is wrong because a longer effort arm actually lets a smaller force produce the same torque.
Practice Questions
- 1 A 200 N child sits 1.5 m from the fulcrum on one side of a seesaw. How far from the fulcrum must a 150 N child sit on the other side to balance it?
- 2 One side of a lever has a 90 N load placed 0.40 m from the fulcrum. If the effort is applied 0.90 m from the fulcrum on the other side, what effort force is needed for balance?
- 3 Two students of different weights want to balance on a seesaw. Explain which student should sit farther from the fulcrum and why, using the idea of torque.
