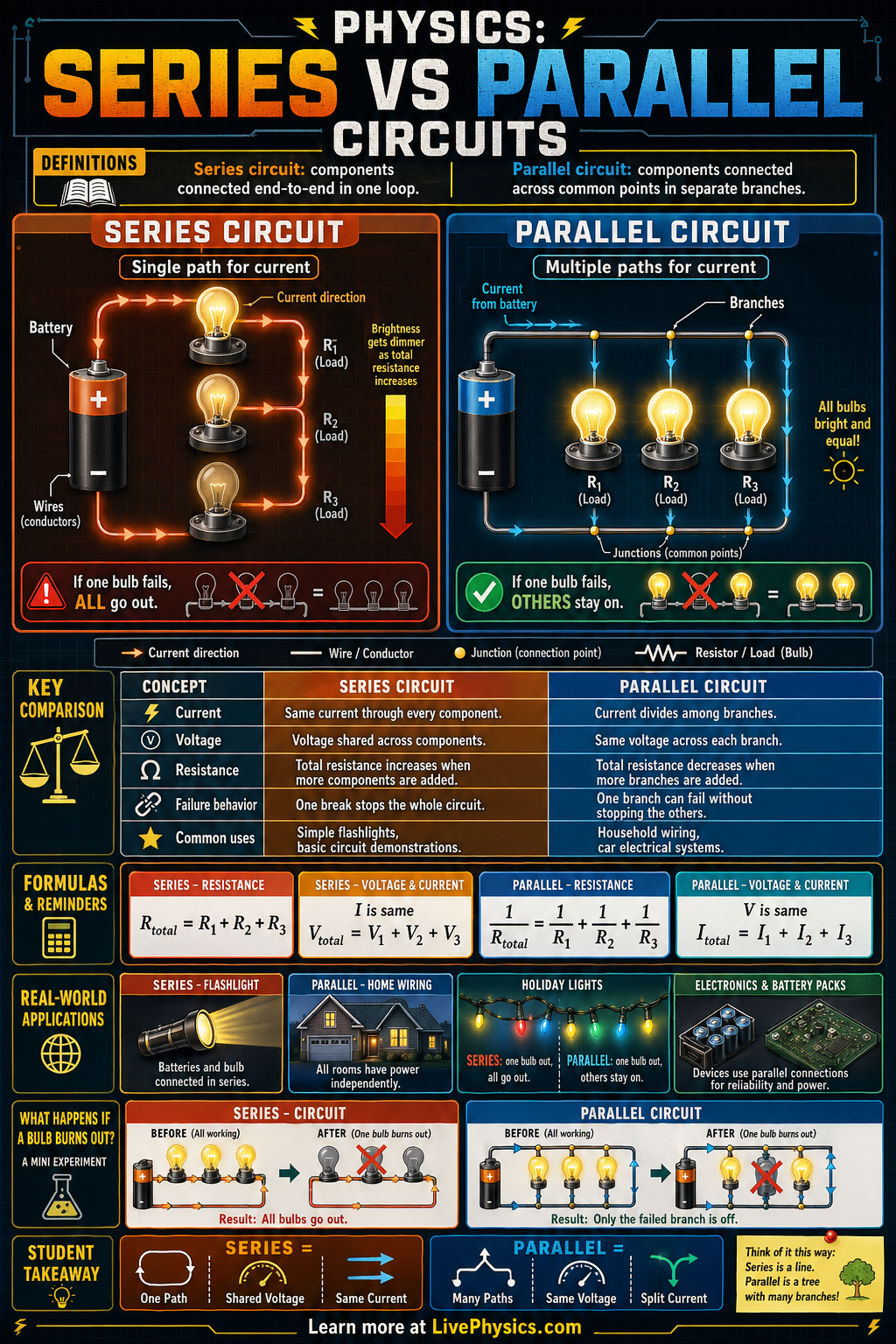

Electric circuits can be connected in different ways, and the two most common patterns are series and parallel. In a series circuit, components are arranged in one continuous loop, so the same current passes through each part. In a parallel circuit, components are connected on separate branches, giving current more than one path to follow.
Understanding the difference matters because it explains how lights, batteries, and household wiring behave.
The key ideas are how current, voltage, and resistance are shared in each type of circuit. In series, resistances add directly and the total current usually decreases as more devices are added. In parallel, each branch gets the full source voltage, and the total current is the sum of the branch currents.
These patterns help predict bulb brightness, battery drain, and what happens when one component fails.
Understanding Series vs Parallel Circuits
A useful way to analyse a circuit is to mark its junctions, often called nodes. A node is any connected piece of wire with no component between its points. Every point on one ideal node has the same electric potential.
In a branch circuit, each component connected between the same two nodes has the same potential difference across it. This is the physical reason that separate branches receive the supply voltage. At a junction, charge cannot build up steadily.
The amount of charge entering each second must equal the amount leaving each second. This conservation rule explains why the incoming current splits among branches.
Equivalent resistance is a shortcut that replaces a group of components with one resistor that takes the same total current from the source. For a chain of resistors, each added resistor makes it harder for charge to move through the only route. For branches, adding a new route makes movement easier overall.
That is why the equivalent resistance of parallel resistors is always smaller than the smallest individual branch resistance. The reciprocal rule can feel awkward at first.
A practical method is to find the reciprocal of each resistance, add those values, then take the reciprocal of the result. For two branches, the equivalent resistance can be found by multiplying the two resistances and dividing by their sum.
Resistance determines how voltage drops and current divides. In a series chain, a component with greater resistance has a greater voltage drop because the same current passes through every component. This is called voltage division.
It is used in sensors and electronic controls to create a chosen smaller voltage from a battery supply. In parallel branches, the lower resistance branch takes more current. A low resistance path can draw a very large current, which may heat wires or drain a battery quickly.
Bulbs offer a familiar example. Identical bulbs in a series string are usually dimmer than one bulb connected to the same battery.
Each bulb receives only part of the available voltage. Identical bulbs on separate branches can shine near their normal brightness, but the battery supplies more total current.
House wiring needs each appliance to work independently, so outlets and lamps are connected across the supply on separate branches. Turning off one lamp opens only its own branch. A blown bulb normally does not stop other lights.
This arrangement has an important safety cost. Many operating appliances together can make the total current too large for a cable. Fuses and circuit breakers are placed in series with the supply line.
They disconnect the circuit when current becomes unsafe. When solving circuit problems, first redraw the diagram neatly and identify nodes rather than trusting the shape of the wires. Then reduce clear groups step by step, use voltage equals current times resistance, and check whether the final current and voltage values obey conservation rules.
Never build circuits directly from a wall outlet. Use low voltage batteries or supervised laboratory power supplies.
Key Facts
- Series circuit:
- Parallel circuit:
- Series resistance:
- Parallel resistance:
- Ohm's law:
- Parallel current adds:
Vocabulary
- Series circuit
- A circuit in which components are connected one after another in a single path for current.
- Parallel circuit
- A circuit in which components are connected on separate branches so current has multiple paths.
- Current
- Current is the rate at which electric charge flows through a circuit, measured in amperes.
- Voltage
- Voltage is the electric potential difference that pushes charge through a circuit, measured in volts.
- Resistance
- Resistance is the opposition to current flow in a component, measured in ohms.
Common Mistakes to Avoid
- Assuming current is always the same everywhere in any circuit, which is wrong because current splits between branches in a parallel circuit and only stays the same through all components in series.
- Adding voltages across branches in a parallel circuit, which is wrong because each branch has the same voltage as the source rather than a summed voltage.
- Thinking adding more bulbs always makes total resistance larger, which is wrong because resistance increases in series but decreases when equal resistors are added in parallel.
- Believing one burned out bulb turns off every bulb, which is wrong because that happens in a simple series circuit but not in a parallel circuit where other branches can still work.
Practice Questions
- 1 Three 2 ohm resistors are connected in series to a 12 V battery. Find the total resistance and the current in the circuit.
- 2 Two resistors, 6 ohm and 3 ohm, are connected in parallel across a 12 V battery. Find the equivalent resistance and the total current.
- 3 A house uses parallel wiring for lamps and appliances. Explain why parallel wiring is more practical than series wiring when one device is switched off or fails.
