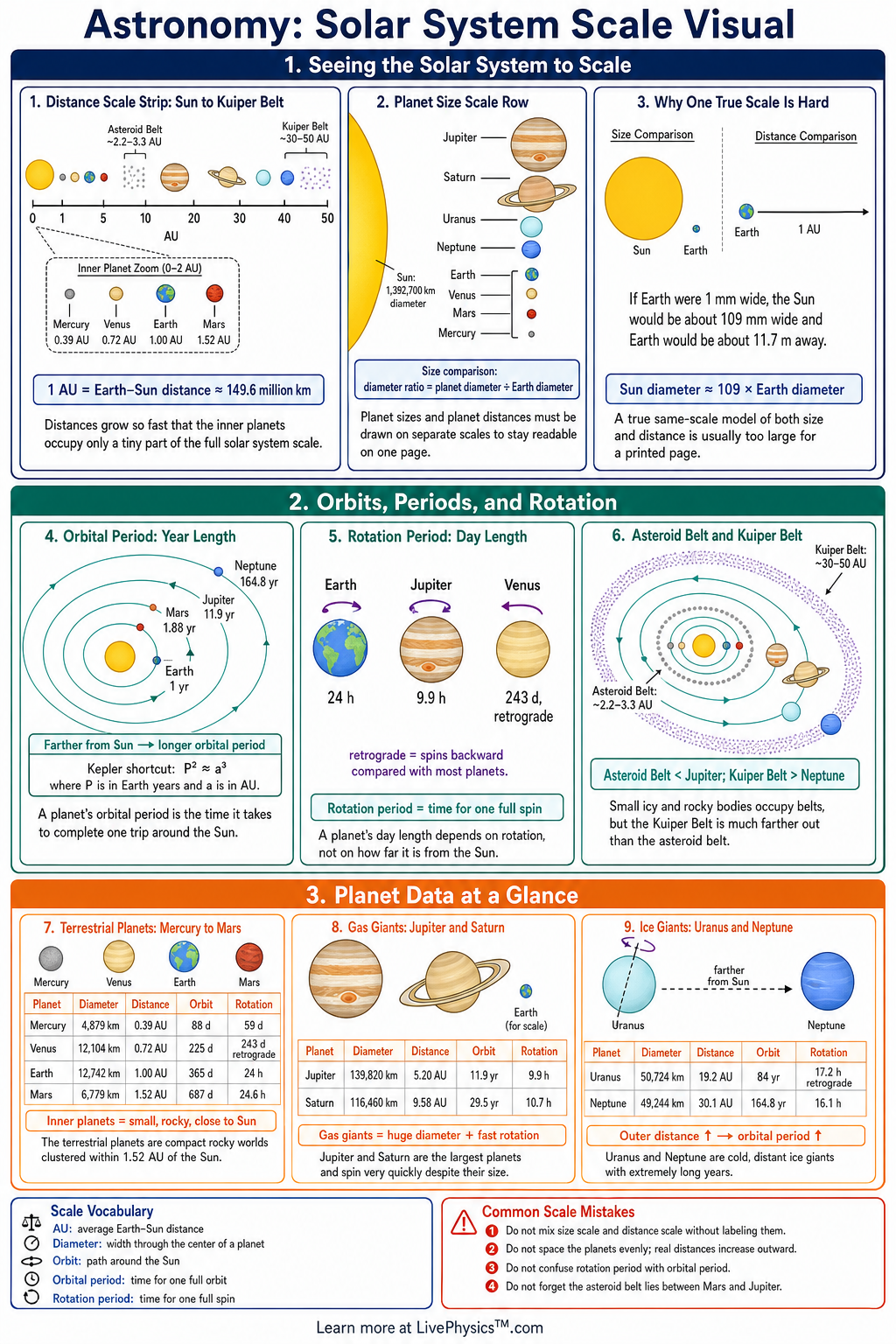

Solar System Scale Visual Cheat Sheet
A printable reference covering planet distances, scale models, astronomical units, light-time, and relative sizes for grades 4-10.
Related Tools
Related Worksheets
A Solar System scale visual helps students compare planet sizes and distances without mixing them up. The Solar System is so large that normal classroom drawings often shrink distances or enlarge planets too much. This cheat sheet gives students simple reference numbers and scale model rules for understanding how spread out the planets really are. It is useful for reading diagrams, building models, and checking whether a visual scale makes sense. The most important ideas are relative size, distance from the Sun, and the meaning of 1 astronomical unit. Earth is about 1 AU from the Sun, and the outer planets are many times farther away. In a scale model, every real distance is divided by the same scale factor, so the spacing stays proportional. Light-time also helps show scale because sunlight takes about 8.3 minutes to reach Earth but hours to reach the outer planets.
Key Facts
- 1 astronomical unit, or 1 AU, is the average distance from Earth to the Sun, about 150 million km.
- Scale distance = real distance divided by scale factor, so a 1:1,000,000,000 scale makes 150 million km become 0.15 km, or 150 m.
- Light travel time = distance divided by speed of light, and light travels about 300,000 km each second.
- Sunlight reaches Earth in about 8.3 minutes because Earth is about 150 million km from the Sun.
- The order of planets from the Sun is Mercury, Venus, Earth, Mars, Jupiter, Saturn, Uranus, and Neptune.
- Jupiter is the largest planet, with a diameter about 11 times Earth's diameter.
- Neptune is about 30 AU from the Sun, so it is about 30 times farther from the Sun than Earth is.
- Planet size scale and planet distance scale are often shown separately because using one true scale makes the planets tiny compared with the spaces between them.
Vocabulary
- Astronomical unit
- An astronomical unit, or AU, is the average distance from Earth to the Sun, about 150 million km.
- Scale model
- A scale model is a smaller or larger representation in which measurements are changed by the same ratio.
- Scale factor
- A scale factor is the number used to multiply or divide real measurements to make a model.
- Diameter
- Diameter is the distance across a planet or other round object through its center.
- Orbit
- An orbit is the curved path an object follows around another object due to gravity.
- Light-time
- Light-time is the amount of time light takes to travel from one place to another.
Common Mistakes to Avoid
- Drawing the planets evenly spaced is wrong because the distances between planetary orbits are not equal and generally become much larger farther from the Sun.
- Using the same page scale for planet sizes and distances without checking the numbers is wrong because the planets become extremely tiny compared with the spaces between them.
- Confusing diameter with distance from the Sun is wrong because diameter measures how wide a planet is, while distance from the Sun measures where its orbit is.
- Treating 1 AU as the distance to every planet is wrong because 1 AU is based on Earth's average distance from the Sun, not a universal planet spacing.
- Forgetting units in scale calculations is wrong because kilometers, meters, and centimeters must be converted correctly before comparing model distances.
Practice Questions
- 1 If Earth is 1 AU from the Sun and Mars is about 1.5 AU from the Sun, how many times farther from the Sun is Mars than Earth?
- 2 In a model where 1 AU equals 10 cm, how far from the Sun should Neptune be placed if Neptune is about 30 AU from the Sun?
- 3 If sunlight takes about 8.3 minutes to reach Earth, about how long would it take to reach a planet 5 AU from the Sun?
- 4 Why is it difficult to make one printed Solar System picture that shows both true planet sizes and true distances using the same scale?
