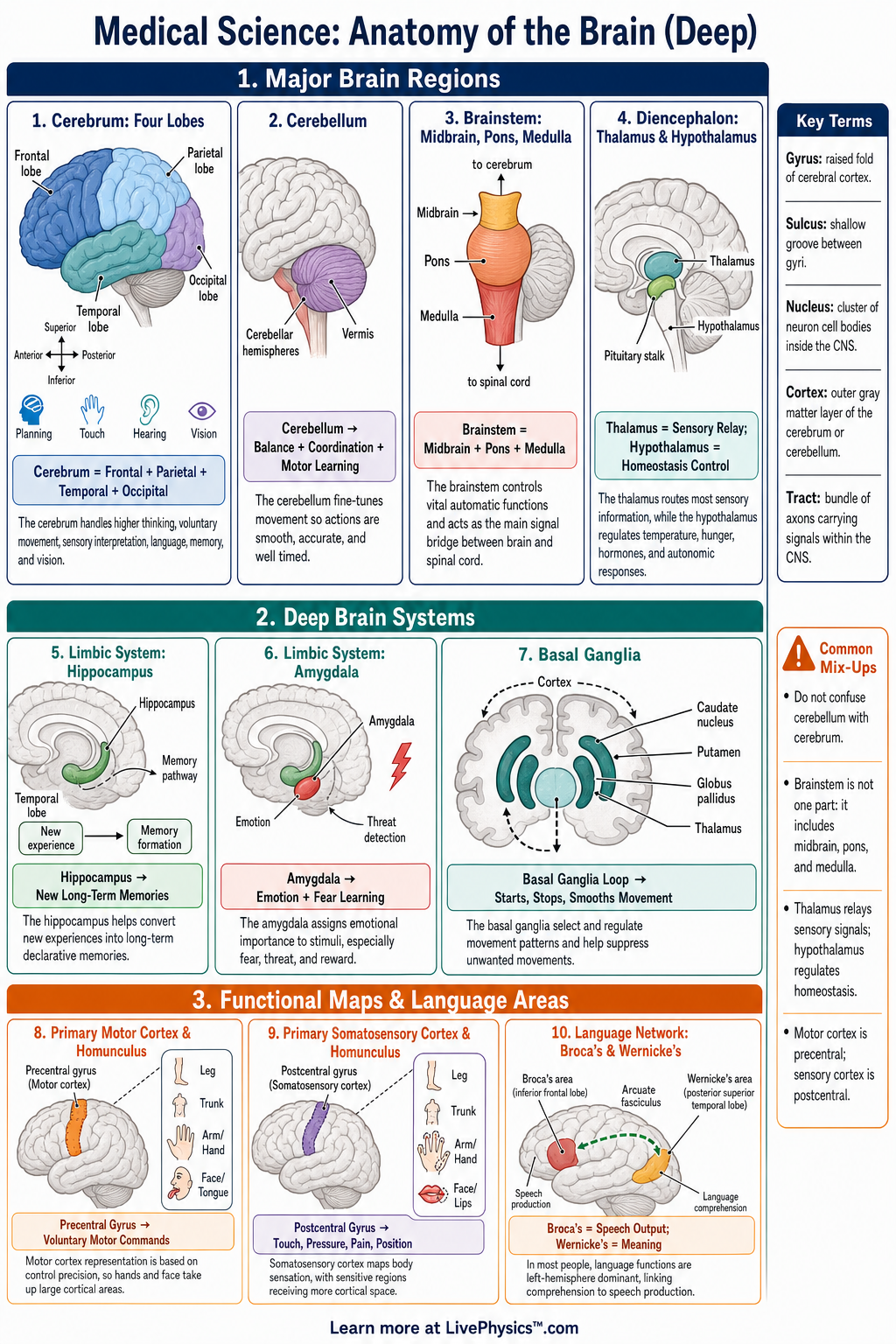

Anatomy of the Brain (Deep) Cheat Sheet

A printable reference covering cerebral lobes, deep brain nuclei, brainstem, cerebellum, limbic structures, and ventricular anatomy for grades 10-12.

Download PNG

Related Worksheets

Related Infographics

This cheat sheet covers deep anatomy of the brain, including major regions, internal structures, and pathways that support movement, sensation, memory, emotion, and automatic body control. Students need this reference because many brain structures have similar names but very different functions. A clear guide helps connect anatomy to physiology, clinical signs, and medical imaging.

Key Facts

The cerebrum is divided into frontal, parietal, temporal, and occipital lobes, each supporting different functions such as planning, sensation, hearing, memory, and vision.
The thalamus acts as a major relay station that sends most sensory information, except smell, to the cerebral cortex.
The hypothalamus helps regulate homeostasis by controlling body temperature, hunger, thirst, circadian rhythms, and pituitary hormone release.
The basal ganglia help initiate and smooth voluntary movement, and dysfunction can cause movement disorders such as tremor or rigidity.
The limbic system includes structures such as the hippocampus and amygdala, which are important for memory formation and emotional responses.
The brainstem includes the midbrain, pons, and medulla, and it controls vital functions such as breathing, heart rate, arousal, and reflexes.
The cerebellum coordinates balance, posture, timing, and motor learning but does not directly start voluntary movement.
Cerebrospinal fluid flows through the lateral ventricles, third ventricle, cerebral aqueduct, fourth ventricle, and then into spaces around the brain and spinal cord.

Vocabulary

Cerebral cortex: The outer layer of the cerebrum that processes conscious thought, sensation, voluntary movement, language, and perception.
Thalamus: A deep brain structure that relays most sensory and motor signals to the correct areas of the cerebral cortex.
Hypothalamus: A small but vital region that controls homeostasis and links the nervous system to the endocrine system through the pituitary gland.
Basal ganglia: A group of deep nuclei that help control movement initiation, movement accuracy, habit learning, and motor inhibition.
Brainstem: The lower part of the brain that connects to the spinal cord and controls many automatic survival functions.
Ventricles: Fluid-filled spaces inside the brain that contain cerebrospinal fluid and help cushion and support the central nervous system.

Common Mistakes to Avoid

Confusing the cerebellum with the cerebrum is wrong because the cerebrum handles higher thinking and conscious processing, while the cerebellum mainly coordinates movement and balance.
Saying the thalamus processes smell like other senses is wrong because olfactory information reaches cortical areas without first relaying through the thalamus.
Treating the brainstem as one structure with one job is wrong because the midbrain, pons, and medulla have different roles in eye movement, breathing, heart rate, arousal, and reflexes.
Assuming the basal ganglia create muscle strength is wrong because they mainly regulate the start, smoothness, and inhibition of movements rather than producing force directly.
Forgetting the order of cerebrospinal fluid flow is wrong because blockage at different points, such as the cerebral aqueduct, can cause different patterns of ventricular enlargement.

Practice Questions

1 A patient has damage to the occipital lobe. Which major function is most likely affected?
2 Put these cerebrospinal fluid structures in order: fourth ventricle, lateral ventricles, cerebral aqueduct, third ventricle.
3 A stroke affects the left motor cortex that controls the right hand. Which side of the body would most likely show weakness?
4 Why can a small injury to the brainstem be more immediately life-threatening than a similar-sized injury to part of the cerebral cortex?
