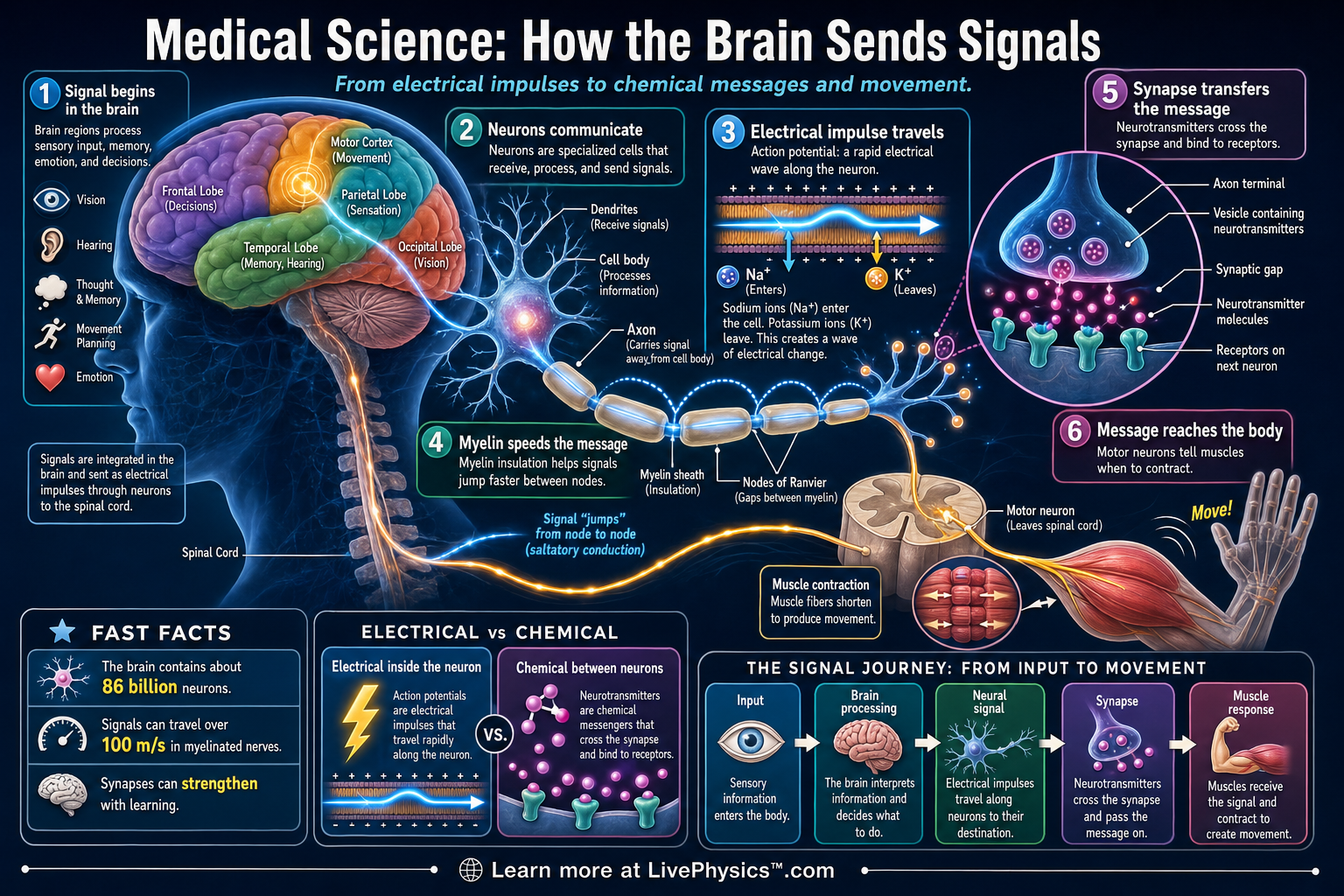

How the Brain Sends Signals
the Brain Sends Signals
Related Tools
Related Worksheets
Your brain sends signals using specialized cells called neurons, which form fast communication networks throughout the nervous system. These signals let you think, feel, move, breathe, and respond to the world around you. A simple action such as moving a finger requires electrical signals in the brain, chemical signals between neurons, and messages traveling through the spinal cord to muscles. Understanding this process helps explain reflexes, paralysis, anesthesia, neurological disease, and many medical treatments.
A nerve signal begins when a neuron changes its electrical charge across the cell membrane, producing an action potential. When the signal reaches the end of a neuron, chemicals called neurotransmitters cross a tiny gap called a synapse and pass the message to the next cell. In movement, signals often travel from the motor cortex through the spinal cord and then to motor neurons that activate muscle fibers. The whole process depends on ion movement, myelin insulation, synaptic transmission, and precise connections between cells.
Key Facts
- A neuron sends information using an electrical impulse called an action potential.
- Resting membrane potential is about -70 mV in many neurons.
- Action potentials follow the all-or-none principle, so a neuron either fires fully or does not fire.
- Signal speed can range from about 1 m/s in unmyelinated fibers to over 100 m/s in heavily myelinated fibers.
- Synaptic transmission uses neurotransmitters that cross the synaptic cleft and bind to receptors.
- Conduction time can be estimated with t = d/v, where t is time, d is distance, and v is signal speed.
Vocabulary
- Neuron
- A neuron is a specialized nerve cell that receives, processes, and transmits information in the nervous system.
- Action potential
- An action potential is a rapid electrical change that travels along a neuron's axon.
- Synapse
- A synapse is the tiny junction where one neuron passes a signal to another neuron, muscle cell, or gland cell.
- Neurotransmitter
- A neurotransmitter is a chemical messenger released by a neuron to communicate across a synapse.
- Myelin
- Myelin is a fatty insulating layer around some axons that helps nerve impulses travel faster.
Common Mistakes to Avoid
- Thinking electricity jumps directly from neuron to neuron. This is wrong because most neurons communicate across synapses using neurotransmitters, not a continuous wire-like connection.
- Assuming stronger stimuli make action potentials bigger. This is wrong because action potentials are all-or-none, and stronger stimuli usually increase firing frequency instead of spike size.
- Forgetting the role of myelin. This is wrong because myelin greatly increases signal speed by allowing impulses to jump between nodes of Ranvier.
- Confusing sensory neurons with motor neurons. This is wrong because sensory neurons carry information toward the central nervous system, while motor neurons carry commands away to muscles and glands.
Practice Questions
- 1 A nerve signal travels 1.2 m from the spinal cord to a muscle at 60 m/s. How long does the trip take in seconds?
- 2 An unmyelinated axon conducts at 2 m/s, while a myelinated axon conducts at 100 m/s. How many times faster is the myelinated axon?
- 3 A patient has damage to myelin around motor neurons. Explain how this could affect muscle movement and why the signal timing would change.
