Antibiotics Classes Reference cheat sheet - grade 11-12

Click image to open full size

Medical Science Grade 11-12

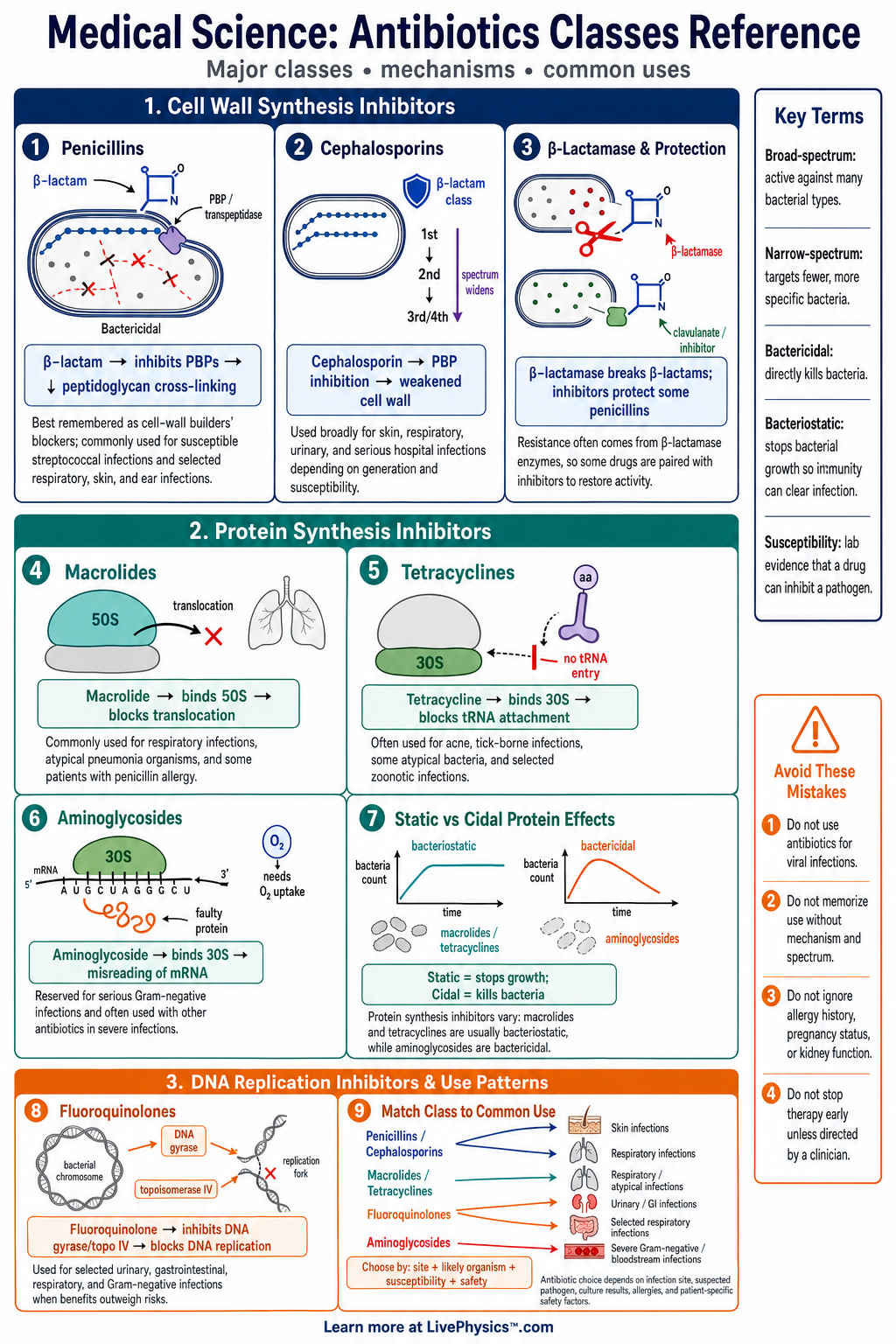

Antibiotics Classes Reference Cheat Sheet

A printable reference covering antibiotic classes, mechanisms of action, spectrum, resistance, and safe use principles for grades 11-12.

Download PNG

This cheat sheet covers the major classes of antibiotics and how they act on bacterial cells. It helps medical science students organize drug classes by target, such as cell wall synthesis, protein synthesis, DNA replication, and folate metabolism. Students need this reference because antibiotic names and mechanisms can look similar but have important differences.

It is intended for classroom learning, not for choosing or changing medical treatment.

Key Facts

  • Beta-lactams, including penicillins and cephalosporins, inhibit bacterial cell wall synthesis by blocking transpeptidase enzymes that cross-link peptidoglycan.
  • Glycopeptides such as vancomycin block cell wall synthesis by binding D-Ala-D-Ala ends of peptidoglycan precursors.
  • Macrolides, tetracyclines, aminoglycosides, and clindamycin inhibit bacterial protein synthesis by targeting either the 30S or 50S ribosomal subunit.
  • Fluoroquinolones inhibit DNA gyrase and topoisomerase IV, which prevents proper bacterial DNA replication and repair.
  • Sulfonamides and trimethoprim inhibit folate synthesis in sequence, with sulfonamides blocking dihydropteroate synthase and trimethoprim blocking dihydrofolate reductase.
  • Narrow-spectrum antibiotics target a smaller range of bacteria, while broad-spectrum antibiotics act against many types and can disrupt normal microbiota.
  • Bactericidal antibiotics kill bacteria directly, while bacteriostatic antibiotics slow bacterial growth so the immune system can clear the infection.
  • Antibiotic resistance can occur through enzyme destruction, altered drug targets, reduced permeability, efflux pumps, or bypass of the inhibited pathway.

Vocabulary

Antibiotic
A medicine that kills bacteria or slows their growth by targeting bacterial structures or processes.
Spectrum of activity
The range of bacteria that an antibiotic can effectively act against.
Bactericidal
Describes an antibiotic that kills bacteria rather than only slowing their growth.
Bacteriostatic
Describes an antibiotic that inhibits bacterial growth and reproduction without directly killing all bacteria.
Mechanism of action
The specific way a drug affects a cell, enzyme, pathway, or structure to produce its effect.
Antibiotic resistance
The ability of bacteria to survive exposure to an antibiotic that would normally stop or kill them.

Common Mistakes to Avoid

  • Confusing antibiotics with antivirals is wrong because antibiotics target bacteria, not viruses such as influenza or most common colds.
  • Assuming all broad-spectrum antibiotics are better is wrong because they can disrupt helpful bacteria and increase selective pressure for resistance.
  • Mixing up 30S and 50S ribosome targets is wrong because tetracyclines and aminoglycosides mainly target 30S, while macrolides and clindamycin mainly target 50S.
  • Thinking resistance means the human body is resistant is wrong because antibiotic resistance is a property of the bacteria, not the patient.
  • Ignoring mechanism of action when comparing drug classes is wrong because different mechanisms explain differences in use, side effects, and resistance patterns.

Practice Questions

  1. 1 A beta-lactam antibiotic blocks transpeptidase enzymes. Which bacterial structure is directly affected, and what happens to the bacterium?
  2. 2 A lab compares two antibiotics: Drug A inhibits DNA gyrase, and Drug B binds the 50S ribosomal subunit. Name one antibiotic class that matches each drug.
  3. 3 A student lists tetracyclines, aminoglycosides, macrolides, and fluoroquinolones as protein synthesis inhibitors. Which one does not belong, and what process does it target instead?
  4. 4 Why can unnecessary use of broad-spectrum antibiotics increase the risk of resistant bacterial infections in a population?

Understanding Antibiotics Classes Reference

A useful way to predict antibiotic activity is to connect bacterial structure with drug access. Gram-positive bacteria have a thick exposed peptidoglycan layer. Gram-negative bacteria have a thinner wall hidden behind an outer membrane.

That outer membrane acts as an extra barrier. Small channels called porins allow some substances to enter, but changes in these channels can reduce entry of a drug.

Some bacteria live inside host cells, while others form protective communities called biofilms on surfaces such as catheters or teeth. A drug may work well in a laboratory dish yet reach these locations poorly in the body.

The labels bactericidal and bacteriostatic are useful, but they are not absolute rules. The result can depend on the bacterial species, the drug concentration, and the infection site. A medicine that stops growth gives the immune system a better chance to remove bacteria.

This can be less reliable when a person has a severely weakened immune system or when bacteria are in places with limited immune access. Drug concentration matters too. Doctors consider whether enough medicine reaches the blood, lungs, urine, bone, or cerebrospinal fluid.

The minimum inhibitory concentration is the lowest concentration that prevents visible bacterial growth in a lab. Susceptibility testing compares this value with drug levels that can be reached safely.

Resistance is natural selection in action. In a mixed bacterial population, a few cells may already carry a gene that helps them survive a drug. Antibiotic exposure kills susceptible cells, leaving resistant cells with less competition.

Bacteria can pass resistance genes to offspring. They can transfer genes between unrelated bacteria through small loops of DNA called plasmids. This helps resistance spread quickly in hospitals, farms, and communities.

Combination treatment can sometimes reduce the chance that one resistant cell survives, especially in certain serious infections. It is not automatically better, since extra drugs can cause more side effects and disturb more normal bacteria.

In real life, antibiotics are used only for bacterial infections, not infections caused by viruses such as colds or influenza. A correct diagnosis may involve symptoms, an examination, a culture, or a rapid test. A culture can identify the organism and show which medicines are likely to work.

Safe use includes taking a prescribed medicine exactly as directed and not sharing leftover tablets. Diarrhea, rashes, and allergic reactions are different problems with different levels of risk.

Severe breathing difficulty, facial swelling, or widespread blistering rash needs urgent medical attention. When studying classes, focus on the link between the bacterial barrier, the drug target, likely resistance method, and the reason a particular spectrum may be useful or harmful.
