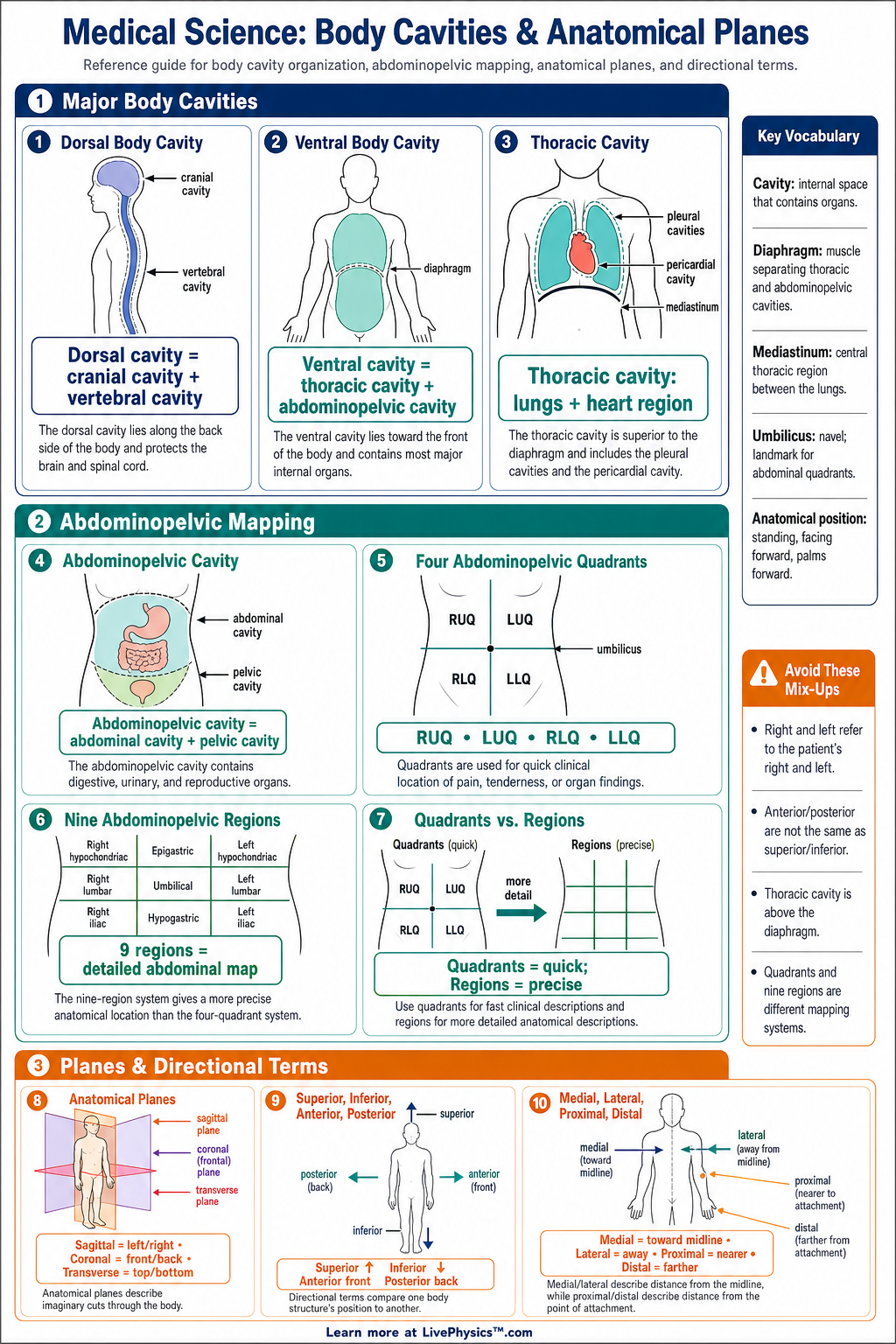

Body Cavities & Anatomical Planes Cheat Sheet
A printable reference covering body cavities, anatomical planes, directional terms, membrane layers, and major organs for grades 9-12.
Related Labs
Related Worksheets
Body cavities and anatomical planes help medical science students describe where organs are located and how the body is divided for study. This cheat sheet gives a quick reference for the major cavities, planes, and directional terms used in anatomy. Students need these terms to communicate clearly in biology, health science, medicine, and emergency care. A shared vocabulary helps prevent confusion when describing injuries, scans, or organ positions. The main body cavities include the dorsal cavity, which protects the brain and spinal cord, and the ventral cavity, which contains the thoracic and abdominopelvic cavities. Anatomical planes divide the body into sections, such as left and right, front and back, or upper and lower parts. Directional terms such as superior, inferior, anterior, and posterior describe body locations relative to each other. Serous membranes line several ventral cavities and reduce friction around organs.
Key Facts
- The dorsal body cavity includes the cranial cavity, which contains the brain, and the vertebral cavity, which contains the spinal cord.
- The ventral body cavity includes the thoracic cavity and the abdominopelvic cavity.
- The thoracic cavity contains the heart and lungs and is separated from the abdominopelvic cavity by the diaphragm.
- The abdominal cavity contains organs such as the stomach, liver, spleen, pancreas, kidneys, and most of the intestines.
- The pelvic cavity contains organs such as the urinary bladder, reproductive organs, and rectum.
- The sagittal plane divides the body into left and right parts, while the midsagittal plane divides it into equal left and right halves.
- The frontal plane divides the body into anterior and posterior parts, and the transverse plane divides it into superior and inferior parts.
- A serous membrane has a parietal layer lining the cavity wall and a visceral layer covering the organ surface.
Vocabulary
- Body cavity
- A space within the body that contains and protects internal organs.
- Anatomical position
- The standard body position with the person standing upright, facing forward, arms at the sides, and palms facing forward.
- Sagittal plane
- A vertical plane that divides the body into left and right portions.
- Frontal plane
- A vertical plane that divides the body into front and back portions.
- Transverse plane
- A horizontal plane that divides the body into upper and lower portions.
- Serous membrane
- A thin, slippery membrane that lines certain body cavities and covers the organs inside them.
Common Mistakes to Avoid
- Confusing dorsal and ventral is wrong because dorsal refers to the back side of the body, while ventral refers to the front side in humans.
- Using left and right from the viewer's perspective is wrong because anatomical directions are always based on the patient's left and right.
- Calling every vertical cut a sagittal plane is wrong because a frontal plane is also vertical but divides the body into anterior and posterior parts.
- Mixing up visceral and parietal membranes is wrong because visceral membranes cover organs, while parietal membranes line cavity walls.
- Placing the heart in the abdominal cavity is wrong because the heart is located in the thoracic cavity, specifically within the mediastinum.
Practice Questions
- 1 A CT scan slices the body horizontally at the level of the waist. Which anatomical plane is being used?
- 2 A student says the spinal cord is in the ventral cavity. Identify the correct cavity and explain the correction.
- 3 Name the two main subdivisions of the ventral body cavity and list one major organ found in each.
- 4 Why is anatomical position important when describing the location of an injury or organ?
