Solar and Lunar Eclipses
Solar and Lunar Eclipses
Related Tools
Related Worksheets
Related Cheat Sheets
Solar and lunar eclipses happen when the Sun, Earth, and Moon line up closely enough for one body to cast a shadow on another. These events are some of the clearest examples of orbital motion and light traveling in straight lines. Eclipses matter because they help us understand the geometry of the Earth Moon system and they have been used throughout history to test astronomical ideas. They also show that the Moon's orbit is tilted, which is why eclipses do not happen every month.

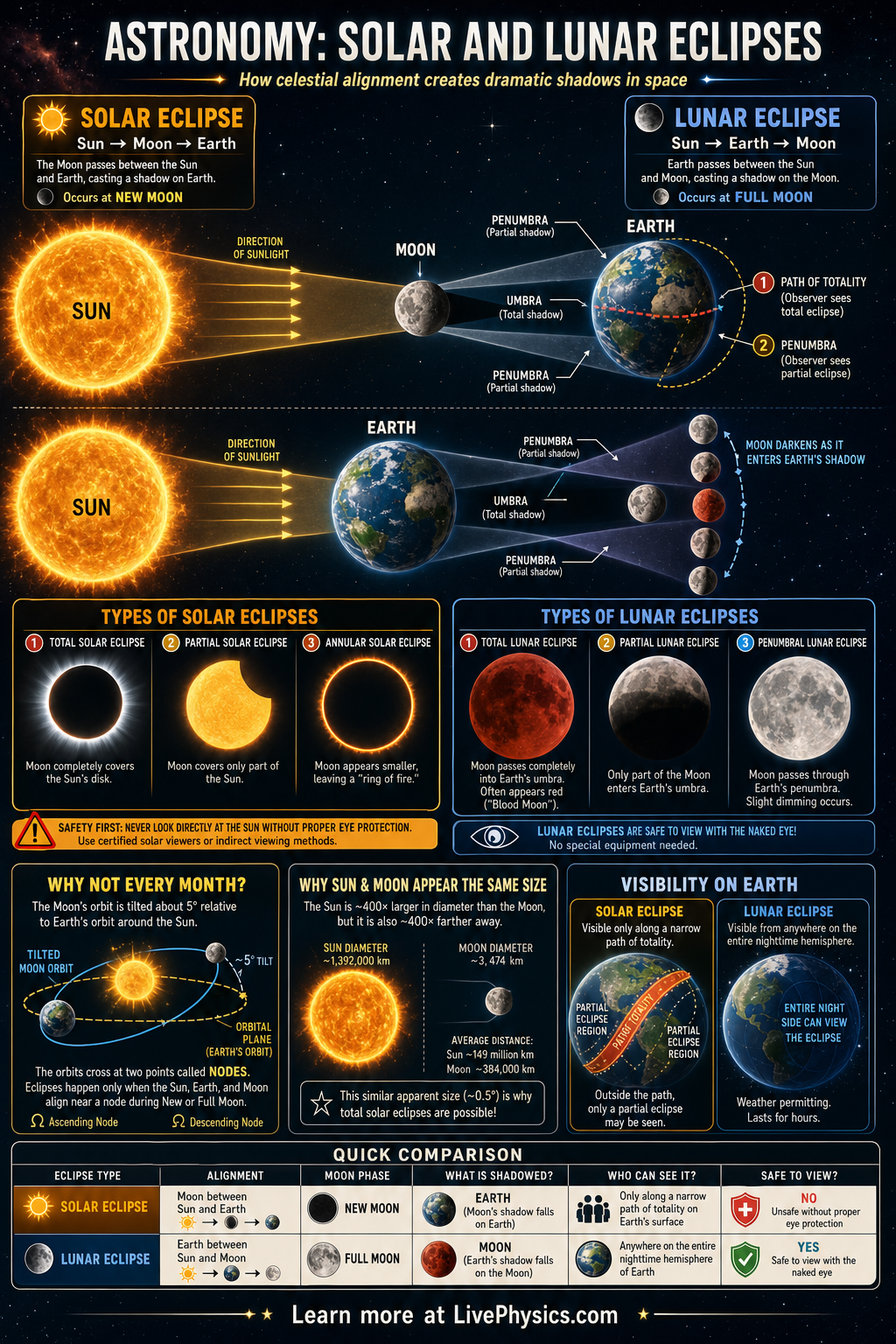

A solar eclipse occurs when the Moon moves between Earth and the Sun, so the Moon's shadow falls on Earth. A lunar eclipse occurs when Earth moves between the Sun and the Moon, so Earth's shadow falls on the Moon. The darkest central part of a shadow is called the umbra, while the lighter outer part is the penumbra. Depending on the exact alignment and distances involved, eclipses can be total, partial, or in the case of solar eclipses, annular.
Key Facts
- Solar eclipse: Sun - Moon - Earth alignment.
- Lunar eclipse: Sun - Earth - Moon alignment.
- The Moon's orbit is tilted by about 5 degrees relative to Earth's orbit around the Sun.
- Total solar eclipse occurs when the observer is in the Moon's umbra.
- Partial eclipse occurs when the observer is in the penumbra.
- Angular size formula: theta ≈ diameter / distance for small angles.
Vocabulary
- Umbra
- The umbra is the darkest part of a shadow where the light source is completely blocked.
- Penumbra
- The penumbra is the lighter outer part of a shadow where the light source is only partly blocked.
- Total eclipse
- A total eclipse happens when one object completely covers the visible disk of another for the observer.
- Annular eclipse
- An annular solar eclipse happens when the Moon appears slightly smaller than the Sun, leaving a bright ring visible.
- Orbital tilt
- Orbital tilt is the angle between one orbit and a reference plane, such as the Moon's orbit compared with Earth's orbit around the Sun.
Common Mistakes to Avoid
- Thinking eclipses happen every full moon and every new moon, which is wrong because the Moon's orbit is tilted so the three bodies usually do not line up exactly.
- Assuming a lunar eclipse is caused by Earth's nighttime darkness, which is wrong because a lunar eclipse specifically happens when the Moon passes through Earth's shadow.
- Believing a solar eclipse can be safely viewed with ordinary sunglasses, which is wrong because proper eclipse glasses or indirect viewing methods are needed to protect the eyes.
- Confusing total and annular solar eclipses, which is wrong because total means the Sun is fully covered while annular means a ring of sunlight remains visible.
Practice Questions
- 1 The Moon's average diameter is about 3474 km and its average distance from Earth is about 384400 km. Using theta ≈ diameter / distance, estimate the Moon's angular size in radians.
- 2 A student stands in the penumbra during a solar eclipse. Is the eclipse total or partial for that student, and why?
- 3 Explain why a solar eclipse can only happen at new moon but still does not happen every month.
