Electric motors and generators are closely related machines that connect electricity and motion. A motor uses electrical energy to produce mechanical rotation, while a generator uses mechanical rotation to produce electrical energy. These devices are essential in transportation, power plants, appliances, and industrial systems.

Understanding their similarities and differences helps students see how energy conversion works in real engineering systems.

Both machines rely on magnetic fields, coils of wire, and relative motion between conductors and magnets. In a motor, current in the coils experiences a magnetic force that creates torque and turns the shaft. In a generator, turning the shaft changes the magnetic flux through the coils and induces a voltage.

The same basic hardware can often operate in either mode, but the direction of energy flow and the governing physical effect are different.

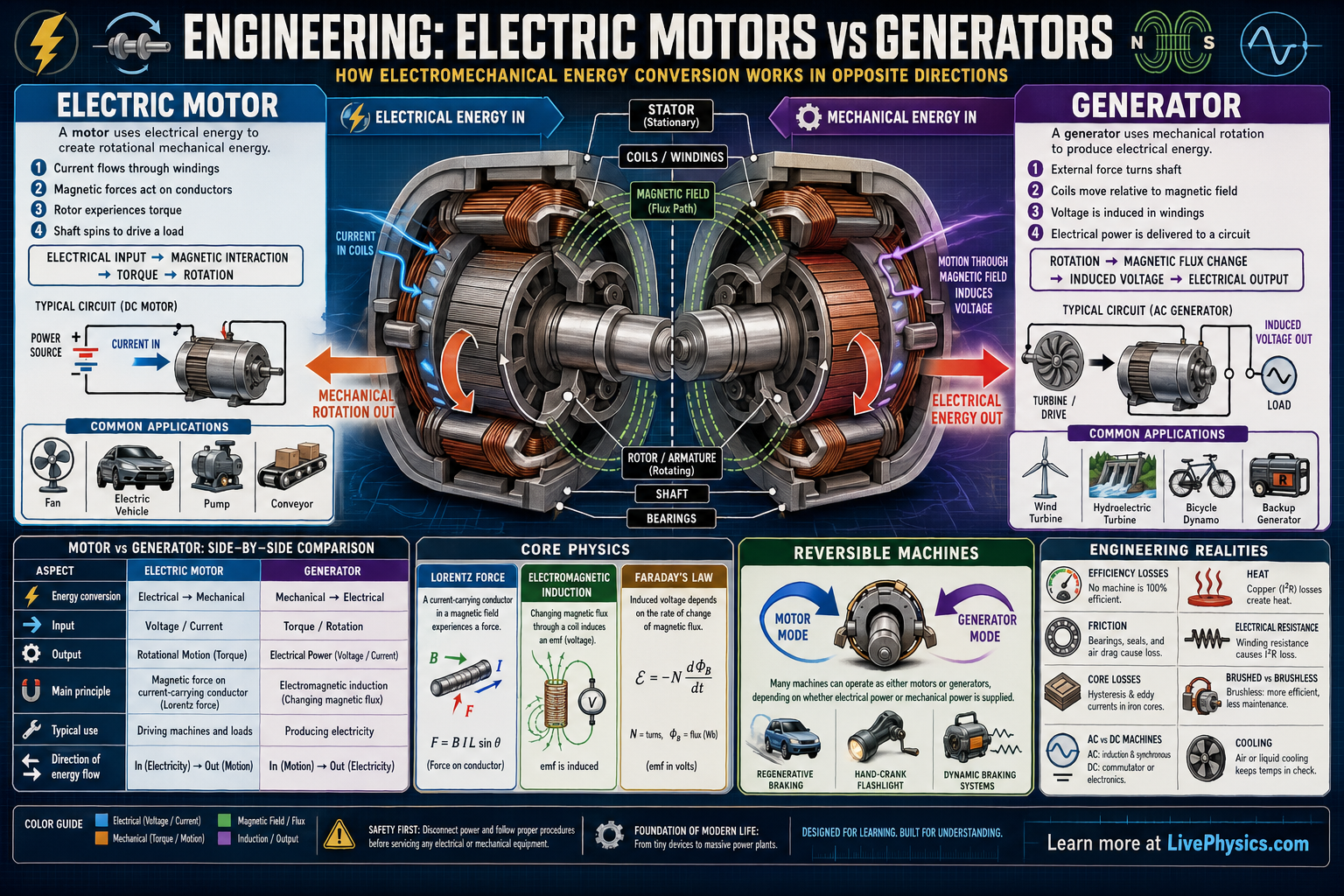

Understanding Electric Motors vs Generators

Inside many rotating machines, the stationary part is called the stator and the spinning part is called the rotor. Their magnetic fields must be arranged so that there is a turning effect rather than just a pull in one direction. In a simple direct current motor, brushes touch a split metal ring called a commutator.

The commutator reverses the coil current at the right moment. This keeps the turning effect pointing around the shaft. In many alternating current motors, electronics or the supply itself creates a rotating magnetic field in the stator.

The rotor continually tries to follow that moving field. This design is common in fans, pumps, washing machines, and electric vehicles.

Motor speed is not set by voltage alone. As a motor spins, its coils create an induced voltage that pushes against the incoming supply voltage. This is called back electromotive force.

At startup, the rotor is still, so this opposing voltage is very small. The motor can then draw a large current. That is why large motors may need starters, controllers, or soft start circuits.

When a load makes the shaft slow down, the back electromotive force falls and current rises. The motor then produces more turning effect. This feedback helps explain why a drill works harder when its bit meets a tough material.

Generator output depends on how quickly the magnetic field pattern changes at the coils. Faster rotation generally raises the produced voltage. A stronger field and more turns of wire can raise it too.

Many generators produce alternating current because the coil passes north and south magnetic regions in a repeating cycle. Power stations must control rotation speed carefully so the electrical frequency stays steady. A generator connected to a load becomes harder to turn.

The current it supplies creates a magnetic effect that resists the driving motion. This resistance is an example of energy conservation, since useful electrical output requires a matching mechanical input from a turbine, engine, bicycle wheel, or other source.

Real machines never convert all input energy into useful output. Wire resistance causes heating. Bearings create friction.

Magnetic materials lose some energy as their internal magnetic regions repeatedly change direction. Designers reduce these losses with thick copper windings, laminated steel cores, good bearings, cooling systems, and careful control of current. Students should track energy flow at every stage and distinguish voltage, current, power, force, and turning effect.

Measuring shaft speed, current, and temperature during a small motor experiment shows that performance changes with load. It also shows why stalled motors can overheat quickly, even when the shaft is not moving.

Key Facts

  • Motor energy conversion: electrical energy -> mechanical energy
  • Generator energy conversion: mechanical energy -> electrical energy
  • Magnetic force on a current-carrying wire: F = BIL sin(theta)
  • Induced emf in a generator: emf = -N(dPhi/dt)
  • Electrical power: P = VI
  • Rotational mechanical power: P = tau omega

Vocabulary

Rotor
The rotor is the rotating part of a motor or generator that turns with the shaft.
Stator
The stator is the stationary part of the machine that provides magnetic fields or supports windings.
Torque
Torque is the turning effect of a force that causes an object to rotate.
Electromagnetic induction
Electromagnetic induction is the production of voltage when magnetic flux through a conductor changes.
Commutator
A commutator is a segmented electrical contact that reverses current direction in some DC machines.

Common Mistakes to Avoid

  • Assuming motors and generators are completely different devices, which is wrong because both use very similar parts and electromagnetic principles with opposite energy flow.
  • Mixing up input and output energy, which is wrong because a motor takes in electrical power and delivers mechanical power, while a generator takes in mechanical power and delivers electrical power.
  • Thinking a constant magnetic field alone creates voltage, which is wrong because induced emf requires changing magnetic flux through the coil.
  • Ignoring losses and claiming 100% efficiency, which is wrong because real machines lose energy through resistance, friction, heating, and magnetic effects.

Practice Questions

  1. 1 A motor operates at 12 V and draws 5 A. Calculate the electrical input power to the motor.
  2. 2 A generator shaft provides a torque of 4 N m at an angular speed of 50 rad/s. Calculate the mechanical input power.
  3. 3 A student spins the shaft of a disconnected motor by hand and measures a voltage at its terminals. Explain why this happens and identify whether the machine is acting as a motor or a generator.
