A circle is the set of all points in a plane that are the same distance from one fixed point called the center. Circle vocabulary is important because it lets you describe diagrams clearly, measure curved shapes, and solve geometry problems accurately. In grade 8 and 9 geometry, circles connect distance, angles, coordinate planes, and formulas for length and area.
Knowing each part of a circle helps you understand both drawings and real objects such as wheels, clocks, targets, and round signs.

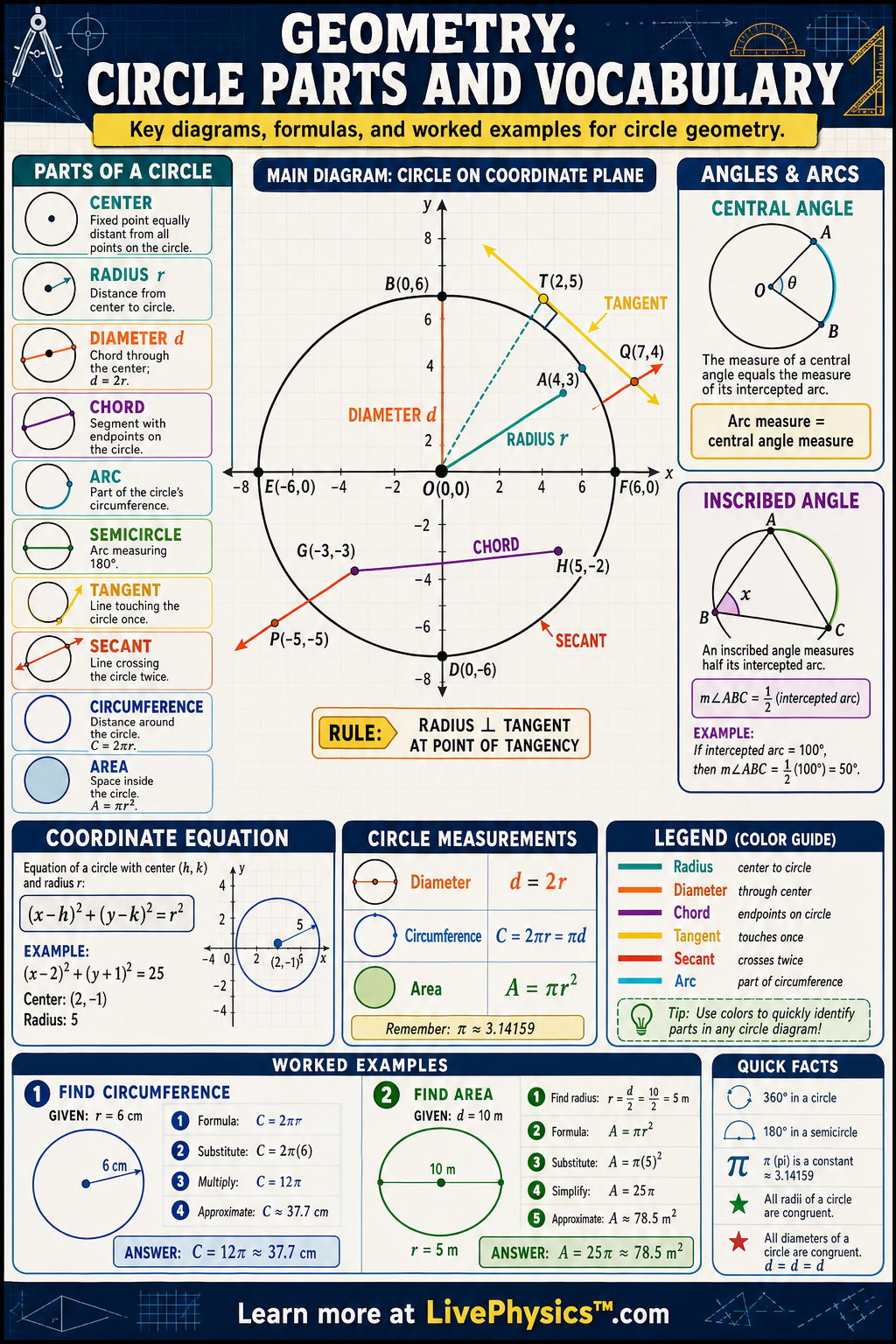

The radius, diameter, chord, secant, tangent, arc, and sector all describe different relationships inside or around a circle. On a coordinate plane, a circle centered at (0, 0) with radius r can be described by x^2 + y^2 = r^2. Angles formed by radii create sectors, and their measures help you find arc length and sector area.
Many circle problems become easier when you label the center, mark radii, and connect the diagram to the correct formula.
Understanding Circle Parts & Vocabulary
A useful way to read a circle diagram is to notice which objects have endpoints on the boundary. A chord is a straight piece that joins two boundary points. It does not need to go through the middle.
The longest possible chord goes through the center, so it splits the circle into two equal halves. Chords become important when comparing distances. In the same circle, a chord closer to the center is longer than a chord farther away.
Equal chords sit the same distance from the center. These facts help students make deductions from a diagram instead of relying on how the picture looks.
An arc is the curved part of the boundary between two points. A minor arc is the shorter route, while a major arc is the longer route. Two endpoints can create both kinds of arc, so names and labels matter.
Three letters are often used to name a major arc because they show which route is intended. A semicircle is an arc made by the endpoints of a diameter. It measures half a full turn.
Central angles control arc measures. If two radii make an angle of ninety degrees at the center, the matching minor arc is one quarter of the circle. This connection lets students turn angle information into curved length information.
A sector is the wedge-shaped region enclosed by two radii and an arc. It is like one slice of a pizza. A segment is different.
It is the region enclosed by a chord and its matching arc. A segment can look like a cap cut from the edge of the circle. Students often mix these regions up because both contain an arc.
Check the straight boundaries. A sector has two straight sides that meet at the center. A segment has one straight side, the chord.
For a sector, the fraction of the full area matches the fraction of a full turn made by its central angle. A sector with a sixty degree angle has one sixth of the whole circle's area.
Lines outside and through circles create more relationships. A secant crosses the boundary, enters the inside, then leaves through the boundary again. A tangent only meets the boundary at its contact point.
This is useful in designs such as road curves, gears, circular tracks, and the path of a belt around a pulley. The radius drawn to a tangent contact point forms a right angle with the tangent. This gives a reliable way to find missing angles or prove that a line is tangent.
When working on problems, mark every center point, boundary point, and intersection clearly. Then decide whether the question concerns a length, an angle, a curved arc, or a region. That first decision usually tells you which circle fact applies.
Key Facts
- A radius is a segment from the center of a circle to a point on the circle.
- A diameter passes through the center and has length d = 2r.
- The circumference of a circle is C = 2πr or C = πd.
- The area of a circle is A = πr^2.
- For a circle centered at the origin, the equation is x^2 + y^2 = r^2.
- A tangent line touches a circle at exactly one point and is perpendicular to the radius at that point.
Vocabulary
- Center
- The center is the fixed point inside a circle that is the same distance from every point on the circle.
- Radius
- A radius is a line segment from the center of a circle to any point on the circle.
- Diameter
- A diameter is a chord that passes through the center of the circle and is twice the radius.
- Chord
- A chord is a line segment with both endpoints on the circle.
- Tangent
- A tangent is a line that touches a circle at exactly one point.
Common Mistakes to Avoid
- Confusing radius and diameter is wrong because the diameter is twice as long as the radius, so using d when a formula needs r gives an answer that is too large.
- Calling any line through a circle a chord is wrong because a chord must be a segment with both endpoints on the circle.
- Using area and circumference formulas interchangeably is wrong because A = πr^2 measures square units while C = 2πr measures linear units.
- Forgetting that a tangent is perpendicular to the radius at the point of tangency is wrong because this 90 degree relationship is often needed to form right triangles and solve lengths.
Practice Questions
- 1 A circle has radius 7 cm. Find its diameter, circumference, and area in terms of π.
- 2 A circle centered at the origin has equation x^2 + y^2 = 64. What are its radius, diameter, circumference, and area?
- 3 A line touches a circle at point T, and a radius is drawn from the center to T. Explain what angle is formed between the tangent and the radius, and why this fact is useful.
