Inequalities describe values that are greater than, less than, at least, or at most a given number. They are important because many real situations involve ranges instead of one exact answer, such as temperature limits, budget constraints, and safe operating conditions. On number lines and coordinate planes, inequalities become visual, which helps students see all possible solutions at once.
Learning to read and draw these graphs builds strong connections between algebra and geometry.

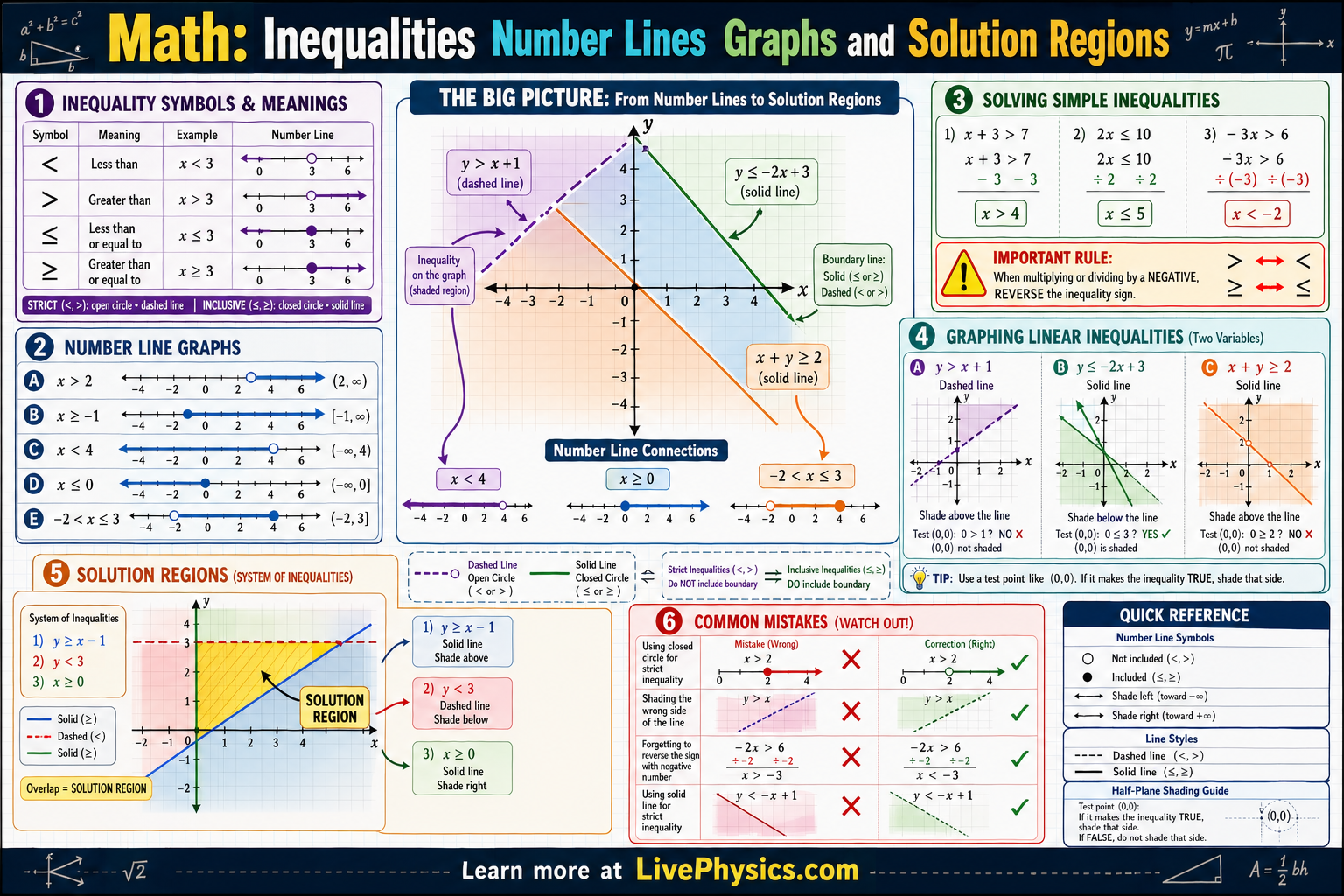

On a number line, a solution set is shown with an open or closed circle and a ray extending left or right. In two variables, an inequality like y > 2x + 1 is graphed using a boundary line and a shaded region that represents all ordered pairs that satisfy the statement. Solid boundary lines mean the line is included, while dashed lines mean it is not included.
When several inequalities are combined, the overlapping shaded area is the solution region that satisfies all conditions at the same time.
Understanding Inequalities
An inequality can be solved by doing the same operation to both sides, because the balance between the two quantities must be preserved. Adding or subtracting a number does not change which side is larger. Multiplying by a positive number does not change it either.
Negative numbers are different because they reverse order on the number line. For example, if three is less than five, then negative three is greater than negative five. This is why the comparison sign must flip when every part is multiplied or divided by a negative value.
Students often know this rule but forget it during several algebra steps. Circle the step where a negative factor is used, then reverse the sign immediately.
Checking a solution is one of the best ways to catch mistakes. Choose a value from the proposed solution set and substitute it into the original statement. The result should be true.
Then choose a value outside the set. The result should be false. This works especially well when a graph seems confusing.
For an inequality with two variables, pick a test point that is not on the boundary line. The point zero, zero is often convenient, unless the line passes through it. Substitute its coordinates into the inequality.
If the statement is true, shade the side containing that point. If it is false, shade the other side.
Compound inequalities describe two restrictions at once. A statement joined by the word and requires values that meet both restrictions. Its graph is the shared part, often an interval between two endpoints.
For example, a score that is at least sixty and less than ninety lies in one limited range. A statement joined by the word or accepts values that meet either restriction. Its graph may have two separate rays.
The words in the problem matter more than the appearance of the graph. Read them carefully before drawing.
In practical settings, and is common for allowed ranges such as a temperature kept above freezing and below a safety limit. Or is common when there are separate acceptable cases.
Graphs of two-variable inequalities are useful because each point represents a possible pair of quantities. A school fundraiser might need total spending to stay within a budget. A recipe may require amounts that meet a nutrition limit.
A business can compare cost with available money. In these situations, one inequality gives a half-plane of possible choices. Several inequalities create a feasible region, meaning the set of choices that obey every condition.
Pay attention to the boundary itself. If equality is permitted, points on the line work. If equality is excluded, they do not.
When reading a shaded graph, test a point, inspect the boundary style, and check whether all shaded regions must overlap. These habits make the algebra, graph, and real situation agree.
Key Facts
- x > a means all numbers to the right of a on a number line, using an open circle at a.
- means all numbers to the right of including , using a closed circle at .
- means all numbers to the left of , and means all numbers to the left including .
- For linear inequalities in two variables, use the boundary line from , then shade above for or and below for or .
- Use a dashed line for or , and a solid line for or .
- If you multiply or divide an inequality by a negative number, reverse the inequality sign: if a < b, then -a > -b.
Vocabulary
- Inequality
- A mathematical statement that compares two quantities using symbols such as <, >, <=, or >=.
- Boundary line
- The line that separates points that may satisfy a two-variable inequality from points that do not.
- Solution set
- The collection of all values or points that make an inequality true.
- Open circle
- A graph marker showing that an endpoint is not included in the solution.
- Solution region
- The shaded part of a graph where all points satisfy the inequality or system of inequalities.
Common Mistakes to Avoid
- Using a closed circle for x > 3, which is wrong because 3 is not included in the solution. Strict inequalities use an open circle or dashed boundary.
- Forgetting to reverse the inequality sign after multiplying or dividing by a negative number, which gives the opposite solution. For example, from -2x > 6, the correct result is x < -3.
- Shading the wrong side of a boundary line, which happens when students do not test a point. Check a simple point like (0,0) unless it lies on the line.
- Drawing a solid line for y < 2x + 1, which is wrong because points on the line are not included. Use a dashed line for strict inequalities.
Practice Questions
- 1 Solve and graph on a number line: 3x - 5 <= 10.
- 2 Graph the inequality y > -2x + 4. State whether the boundary line is solid or dashed, and tell which side of the line should be shaded.
- 3 A system has the inequalities and . Describe in words what the overlapping solution region represents and explain whether points on each boundary are included.
