Probability helps us measure how likely an event is to happen, from simple games to scientific experiments. Tree diagrams are a powerful way to organize all possible outcomes in a step by step process. They make it easier to see how events branch, count outcomes, and calculate probabilities correctly.
Learning this skill builds a strong foundation for statistics, genetics, and decision making.

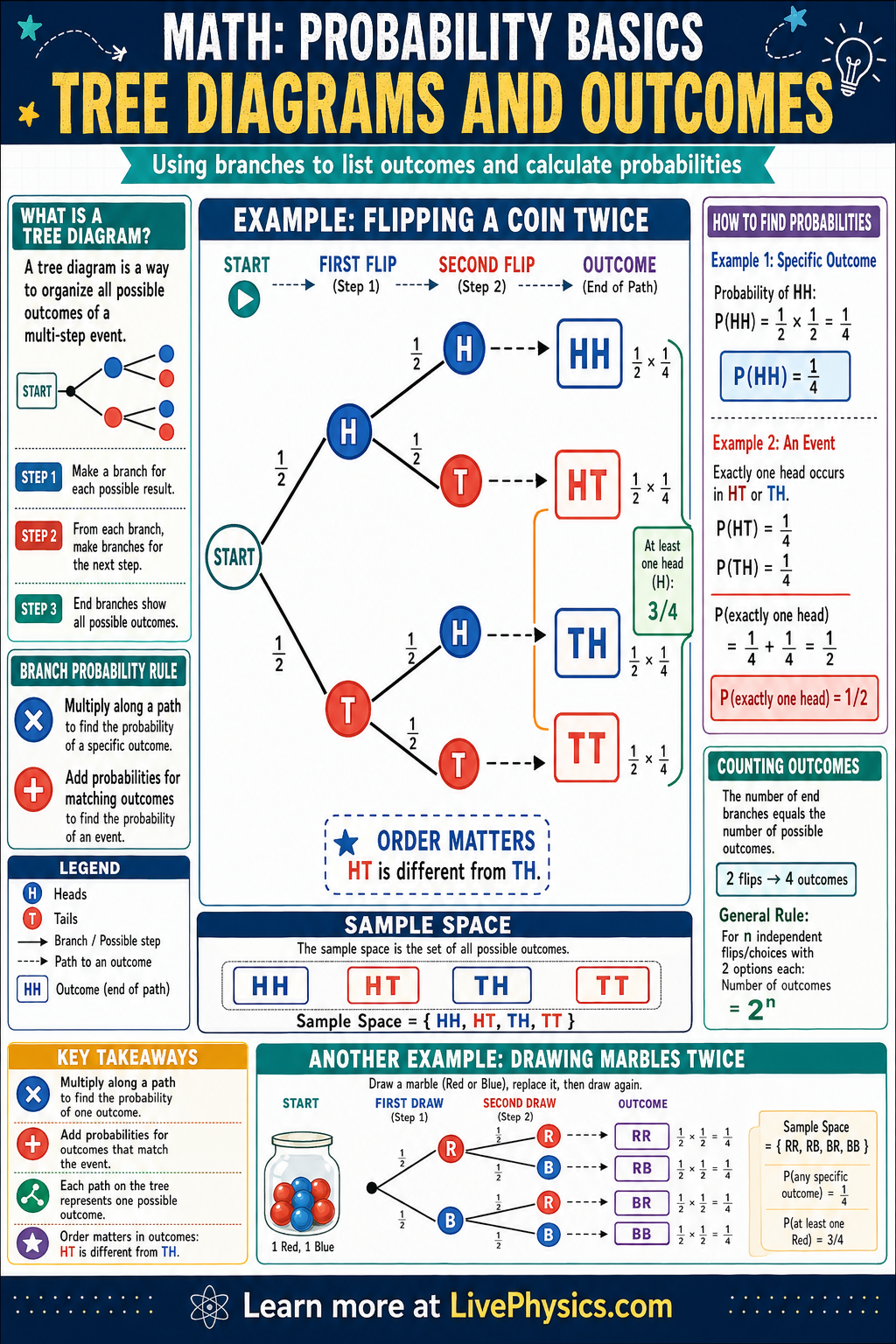

A tree diagram starts with one event and then splits into branches for each possible result. Each branch can split again if the experiment continues, such as flipping a coin twice or choosing items in sequence. The probability of one complete path is found by multiplying the probabilities along that path.
Once all paths are shown, you can add the probabilities of paths that match the event you want.
Understanding Probability Basics
A sample space is the full list of results that the experiment can produce. It must be complete before any counting begins. For a roll of a standard die, the sample space contains the six face values.
For two rolls, each result needs an ordered pair because a first roll of two followed by a second roll of five differs from five followed by two. Outcome tables are useful here. Put the first result along one side and the second result across the top.
Every cell represents one possible combined result. This prevents a common mistake of counting only the different totals instead of the individual ways to make each total.
Counting works cleanly only when outcomes have equal chances. The six faces of a fair die are equally likely, so each face gets the same share of the probability. The sums from rolling two dice are not equally likely.
A total of seven can occur in six different ways, while a total of two has only one way. A table shows this pattern clearly. Students should separate the outcome itself from a description of the outcome.
A total of seven is one event made from several equally likely outcomes. This distinction is important in board games, where some moves happen more often because more combinations create them.
A complementary event contains every outcome that is not in the event being studied. If an event is drawing a red card, its complement is drawing a card that is not red. Together, an event and its complement cover the entire sample space with no overlap.
This makes some calculations shorter. Finding the chance of at least one success is often easier by first finding the chance of no successes, then taking that amount away from one.
For example, repeated quality checks in a factory may focus on whether at least one item is faulty. The complement method avoids listing many separate cases.
Replacement changes the probabilities in a sequence. When an item is replaced after it is chosen, the contents of the group stay the same. Each new selection has the same probabilities as the first selection.
Without replacement, the group changes after every choice. Drawing one blue counter means there is one fewer blue counter and one fewer counter overall for the next draw. This is why later branches in a tree can have different values from earlier branches.
Do not multiply probabilities simply because two events occur in sequence. First decide whether the second probability depends on the first result. This idea appears in card games, raffle draws, sports selections, and surveys that choose people without repeats.
Careful language helps avoid errors. The word and usually points to outcomes that must occur together on one path. The word or means one event, the other event, or sometimes both, depending on the wording.
Events that cannot happen together can have their probabilities combined directly. Events that overlap need extra care because the shared outcomes must not be counted twice.
When checking work, make sure every possible final result appears once, no impossible result appears, and the probabilities across a complete set total one. A quick sketch, table, or list often reveals missing outcomes before the calculation begins.
Key Facts
- Probability of an event =
- For one coin flip: P(H) = 1/2 and P(T) = 1/2
- For two independent events on one path:
- For two coin flips, the outcomes are HH, HT, TH, TT
- If outcomes do not overlap:
- The sum of probabilities of all final branches in a complete tree = 1
Vocabulary
- Outcome
- A single possible result of an experiment, such as getting heads on a coin flip.
- Event
- A set of one or more outcomes that match a condition you are interested in.
- Tree diagram
- A branching diagram that shows all possible outcomes of a sequence of events.
- Independent events
- Events are independent when the result of one does not change the probability of the other.
- Sample space
- The complete list of all possible outcomes of an experiment.
Common Mistakes to Avoid
- Forgetting to list every branch, which makes the sample space incomplete and leads to wrong probabilities. Check that each stage of the experiment splits into all possible outcomes.
- Adding probabilities along one path, which is wrong because sequential events on the same path must be multiplied. Use multiplication for and situations like H then T.
- Assuming every event has the same probability, which is not always true in multi step experiments. Count or calculate the probability of each final branch carefully.
- Mixing up outcomes and events, which causes confusion when counting favorable cases. An outcome is one result like HT, while an event can include several outcomes like getting exactly one head.
Practice Questions
- 1 A fair coin is flipped twice. Draw a tree diagram and find the probability of getting exactly one head.
- 2 A bag has 3 red marbles and 2 blue marbles. One marble is chosen, replaced, and then another is chosen. Use a tree diagram to find the probability of getting red then blue.
- 3 Explain why the probabilities at the ends of a complete tree diagram must add up to 1.
