An electrocardiogram, or ECG, records the heart's electrical activity over time and helps clinicians detect rhythm problems, conduction delays, and signs of cardiac injury. For early medical students, ECG interpretation connects basic cardiac physiology to real patient care. Learning the normal waves and intervals makes it easier to spot dangerous abnormalities quickly.
A systematic approach also reduces errors when reading complex tracings.

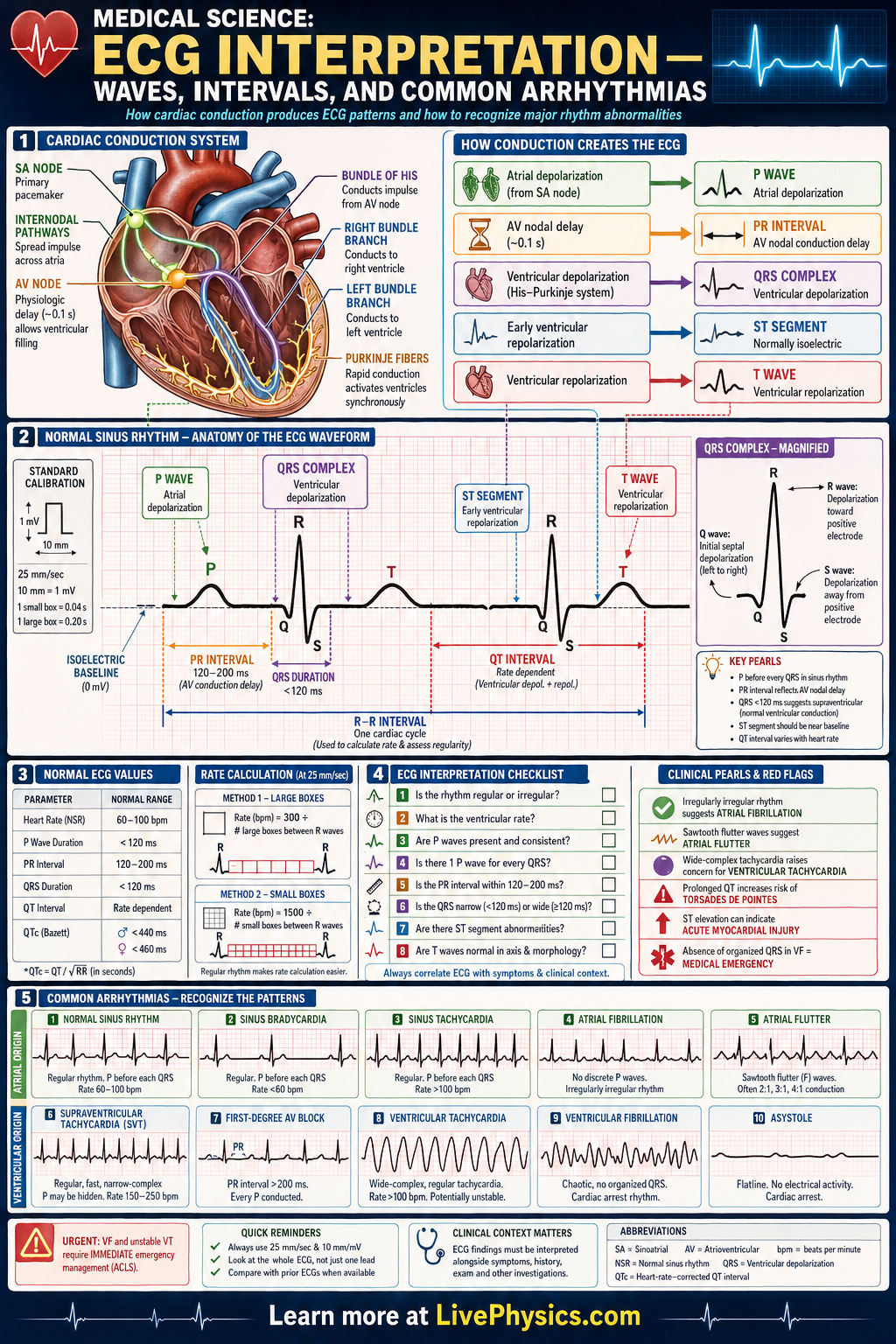

Each part of the ECG reflects a specific electrical event in the heart, from atrial depolarization to ventricular repolarization. The timing between waves shows how impulses move through the sinoatrial node, atrioventricular node, His Purkinje system, and ventricular muscle. Common arrhythmias change the rate, rhythm, wave appearance, or interval length in recognizable ways.
By comparing a tracing to normal values, students can identify patterns such as atrial fibrillation, sinus bradycardia, tachycardia, and heart block.
Understanding ECG Interpretation
An ECG is not a direct picture of the heart muscle squeezing. It measures tiny voltage differences at the skin. Electrodes on the arms, legs, and chest view the same electrical activity from different directions.
This matters because an electrical wave moving toward a lead usually creates an upward deflection, while a wave moving away usually creates a downward one. The chest leads are especially useful because they examine the heart across the horizontal plane.
A change seen in one lead can be caused by lead position or noise. A change appearing in nearby leads is more likely to reflect a real event in the heart.
Good interpretation starts before naming a rhythm. Check the recording quality, paper speed, calibration, and whether the baseline is steady. Then decide if the rhythm is regular or irregular.
Find the atrial activity and examine its relationship to each ventricular beat. A useful habit is to follow each atrial signal forward and ask whether it is followed by a ventricular complex. Next, measure important intervals in several beats rather than trusting one unusual beat.
If the rhythm is irregular, a single gap between beats cannot represent the whole tracing. Count beats over a longer strip to estimate the rate more reliably. This careful order prevents students from jumping too quickly to a diagnosis.
Rhythm problems often result from one of two broad mechanisms. An impulse may start in the wrong place, or the normal impulse may travel too slowly or fail to travel at all. Fast rhythms can arise when an abnormal focus fires repeatedly or when an electrical impulse travels in a loop and re-enters tissue it has already activated.
Slow rhythms may occur when the natural pacemaker fires slowly or when conduction through the atrioventricular node is impaired. A widening of the ventricular complex suggests that activation is taking an unusual route through the ventricles.
This can happen with a bundle branch block or when a beat begins in ventricular tissue. The shape of the tracing gives clues about the route, not just the speed.
Students meet ECGs in emergency care, routine preoperative checks, ambulance monitoring, sports medicine, and assessments of symptoms such as palpitations, fainting, chest discomfort, or shortness of breath. However, an ECG is only a brief sample. A person can have intermittent symptoms with a normal tracing between episodes, so longer monitoring may be needed.
Motion, shivering, loose electrodes, muscle tension, and electrical interference can create patterns that resemble arrhythmias. Always compare the tracing with the patient’s pulse, symptoms, and condition. A monitor that appears alarming does not automatically mean the patient is unstable.
In learning, focus first on recognizing normal patterns consistently. Then compare one abnormal feature at a time, such as an absent atrial signal, an early beat, a dropped ventricular beat, or a wide complex.
Key Facts
- P wave = atrial depolarization; QRS complex = ventricular depolarization; T wave = ventricular repolarization.
- Normal heart rate from ECG: Heart rate = 300 / number of large boxes between consecutive R waves.
- Normal PR interval = 0.12 to 0.20 s, which equals 3 to 5 small boxes.
- Normal QRS duration < 0.12 s, which is less than 3 small boxes.
- Normal QT interval varies with heart rate; corrected QT can be estimated by QTc = QT / square root of RR.
- Standard ECG paper speed = 25 mm/s, so 1 small box = 0.04 s and 1 large box = 0.20 s.
Vocabulary
- Depolarization
- Depolarization is the electrical activation of cardiac cells that triggers contraction.
- Repolarization
- Repolarization is the electrical recovery of cardiac cells after activation.
- PR interval
- The PR interval is the time from the start of atrial depolarization to the start of ventricular depolarization.
- QRS complex
- The QRS complex is the ECG waveform produced by ventricular depolarization.
- Arrhythmia
- An arrhythmia is any abnormal heart rhythm caused by altered impulse formation or conduction.
Common Mistakes to Avoid
- Confusing electrical activity with mechanical contraction, which is wrong because the ECG shows voltage changes, not the actual pumping force of the heart.
- Calling every irregular rhythm atrial fibrillation, which is wrong because premature beats, sinus arrhythmia, and heart block can also produce irregular patterns and need different clues for diagnosis.
- Ignoring paper speed and box size, which is wrong because interval and rate calculations depend on knowing that small and large boxes represent fixed time values.
- Measuring the PR, QRS, or QT interval from inconsistent points, which is wrong because intervals must be measured from the true onset and end of the waveform to avoid false diagnoses.
Practice Questions
- 1 An ECG shows 4 large boxes between consecutive R waves. What is the heart rate in beats per minute?
- 2 A patient's PR interval measures 6 small boxes and the QRS duration measures 2 small boxes. Calculate each interval in seconds and state whether each is normal.
- 3 An ECG has no distinct P waves, an irregularly irregular rhythm, and narrow QRS complexes. Which common arrhythmia is most likely, and what feature supports your conclusion?
