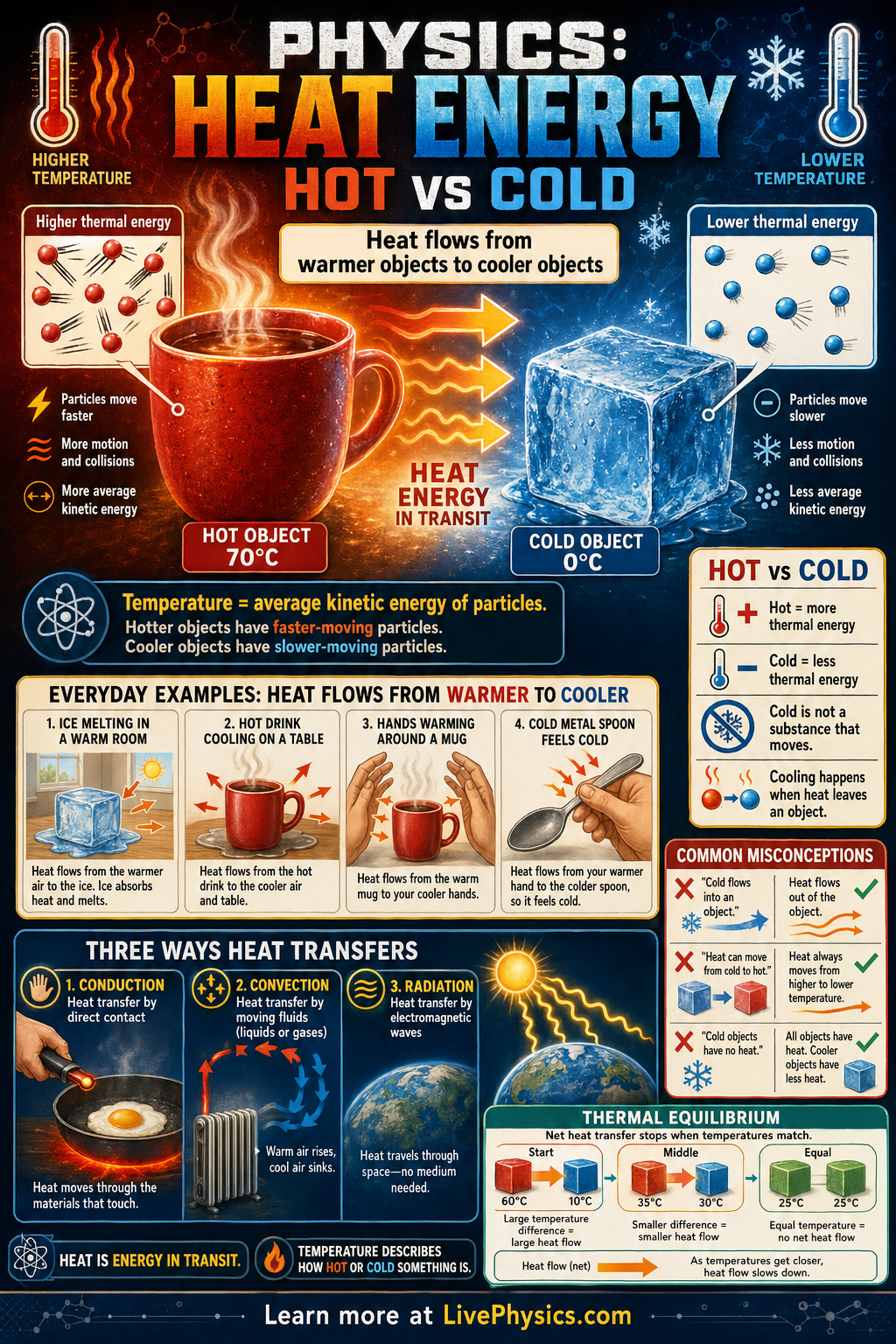

Heat Energy infographic - Hot vs Cold, Thermal Transfer, and Equilibrium

Click image to open full size

Physics

Heat Energy

Hot vs Cold, Thermal Transfer, and Equilibrium

Heat energy is the transfer of thermal energy caused by a temperature difference. A hotter object has particles with greater average kinetic energy than a colder object, so energy naturally moves from the hot object to the cold one. This idea explains everyday events such as ice melting in a drink, a spoon warming in soup, and a hand cooling when it touches metal.

Temperature tells how hot or cold something is, but heat describes energy in transit. When two objects at different temperatures interact, collisions between particles transfer energy until both objects reach thermal equilibrium. Cold does not flow into a warmer object. Instead, the warmer object loses thermal energy and the cooler object gains it.

Key Facts

  • Heat flows spontaneously from higher temperature to lower temperature.
  • Temperature measures average kinetic energy of particles, while heat is energy transferred between objects.
  • Thermal equilibrium occurs when two objects reach the same temperature and net heat transfer becomes zero.
  • Q = mcΔT relates heat transfer Q to mass m, specific heat c, and temperature change ΔT.
  • If an object warms up, ΔT = Tfinal - Tinitial is positive; if it cools down, ΔT is negative.
  • Energy conservation in thermal problems is often written as Qlost + Qgained = 0.

Vocabulary

Heat
Heat is thermal energy transferred from one object to another because of a temperature difference.
Temperature
Temperature is a measure of the average kinetic energy of the particles in a substance.
Thermal equilibrium
Thermal equilibrium is the state in which objects in contact have the same temperature and no net heat flows between them.
Specific heat capacity
Specific heat capacity is the amount of energy needed to raise the temperature of 1 kilogram of a substance by 1 degree Celsius.
Conduction
Conduction is heat transfer through direct contact between particles or objects.

Common Mistakes to Avoid

  • Saying that cold flows from a cold object to a hot object, which is wrong because heat transfer is energy moving from higher temperature to lower temperature.
  • Confusing heat with temperature, which is wrong because temperature measures particle motion while heat is energy transferred between objects.
  • Using Q = mcΔT with the wrong sign for ΔT, which is wrong because heating and cooling must be represented by positive or negative temperature change correctly.
  • Assuming larger objects are always hotter, which is wrong because temperature does not depend only on size and a small object can have a higher temperature than a large one.

Practice Questions

  1. 1 A 0.50 kg piece of aluminum with c = 900 J/kg°C cools from 80°C to 30°C. Calculate the heat transferred by the aluminum.
  2. 2 A 0.20 kg cup of water with c = 4186 J/kg°C is heated from 20°C to 35°C. How much heat energy does the water gain?
  3. 3 A warm metal spoon is placed into a cooler cup of tea. Explain the direction of heat transfer and describe what happens when thermal equilibrium is reached.
