Robot navigation is the process a robot uses to decide where it is, where it should go, and how to move safely. In a robotics classroom or competition, navigation helps a wheeled robot follow lines, avoid obstacles, reach targets, and explore an unknown field. Good navigation combines sensors, software, and motion control.
These basics are important because even a simple robot must constantly turn sensor data into driving decisions.

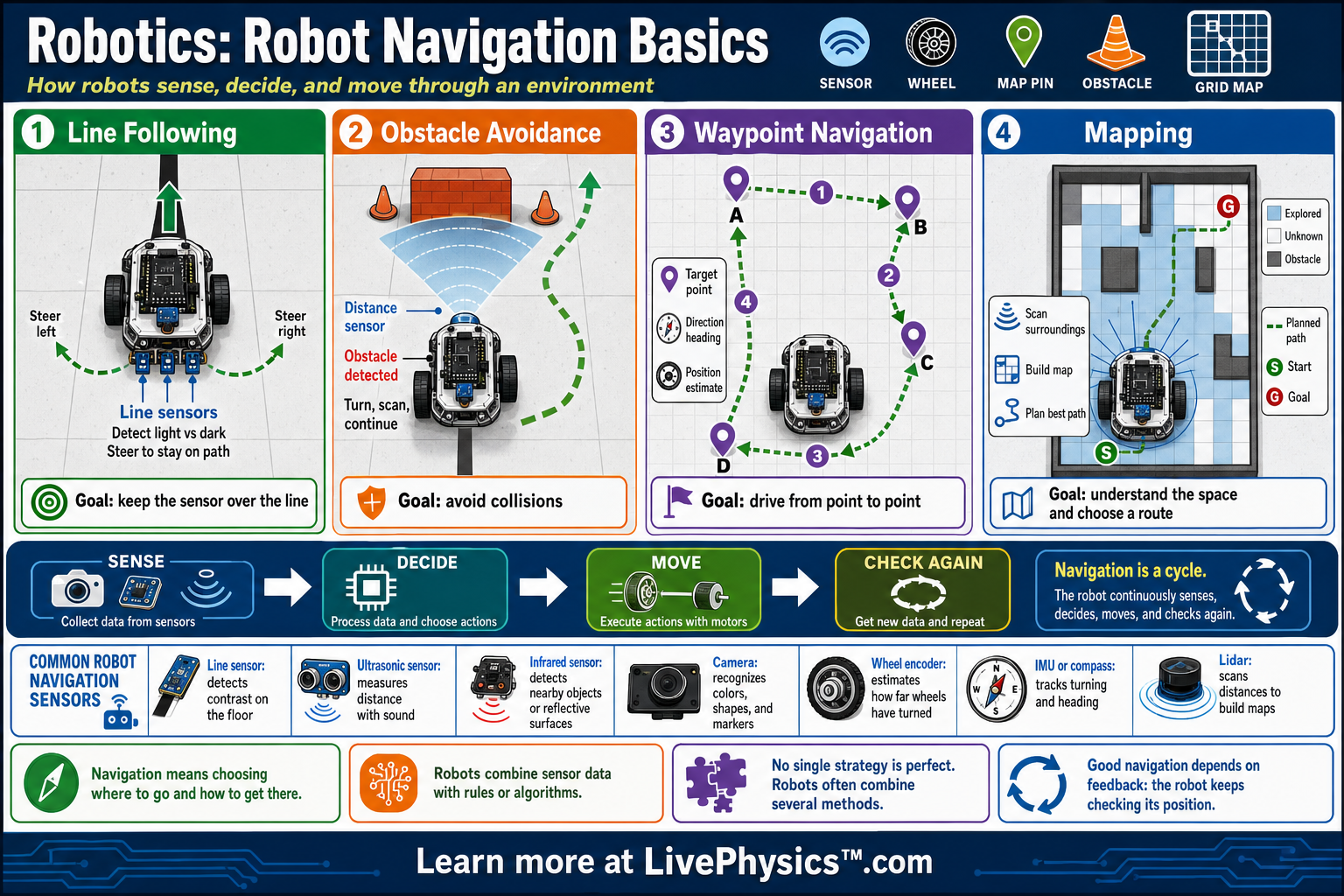

A robot usually navigates in a loop: sense the environment, decide on an action, move, then sense again. Line following uses light or color sensors to stay near a marked path, while obstacle avoidance uses distance sensors to stop or turn when something is too close. Waypoint navigation sends the robot between planned points using distance, direction, or position estimates.
Mapping is more advanced because the robot builds a model of the space and then plans a path through it.
Understanding Robot Navigation Basics
Line following depends on the difference between reflected light from the line and reflected light from the floor. A dark line usually reflects less light than a pale surface, but room lighting, shiny tape, and worn paint can change the readings. Students should calibrate sensors over both the line and the background before a run.
The robot then needs a target reading between those values. If the left sensor sees more line than the right sensor, the robot corrects in one direction. Small, frequent corrections make smoother motion.
Large corrections cause zigzagging. This is a useful early example of feedback control. The robot measures an error, changes its steering, then measures the remaining error.
Obstacle avoidance has a different problem. A distance sensor does not understand what an object is. It only reports a measurement that may be noisy or wrong.
Ultrasonic sensors send out sound pulses and measure the return time. Soft fabric may absorb sound. Sloped surfaces may reflect sound away from the receiver.
A narrow chair leg can be missed if the sensor beam passes beside it. For this reason, a robot should not react to one reading alone. It can compare several readings, use a safety margin, and slow down near possible obstacles.
Stopping distance matters too. A fast robot travels forward while its program detects the hazard and while the motors brake.
Waypoint navigation needs an estimate of position. On a classroom grid, positions may be marked with coordinates. Outdoors, a robot may use satellite signals.
Small indoor robots often estimate travel from wheel encoders. Each encoder counts wheel rotation, which can be converted into distance when the wheel size is known. This method is called odometry.
It works well over short distances, but errors build up. Wheels can slip, one motor can run slightly faster, or a robot can turn without moving exactly as expected.
A robot may therefore reach a point that its calculations say is correct while its real location is offset. Markers, cameras, or wall sensors can provide occasional position checks and reduce this drift.
Mapping adds a stored description of free space and blocked space. A common map divides the floor into small square cells. Each cell is marked as likely clear, likely occupied, or unknown.
The robot must keep updating this map while estimating its own location. This is difficult because a wrong position estimate places obstacles in the wrong cells. Once a map is useful, a path planner chooses a route that avoids blocked areas.
The shortest route is not always the best route. A path with tight turns or very small gaps may be unsafe for a real robot. Good planners leave clearance around walls and choose paths that match the robot's turning ability.
When learning navigation, pay attention to uncertainty. Sensors, wheels, and maps are never perfect, so reliable robots use careful limits, repeated measurements, and simple recovery behavior when they become lost.
Key Facts
- Navigation loop: sense, decide, move, repeat.
- Speed equation: v = d/t, where v is speed, d is distance, and t is time.
- Turn rate equation: omega = theta/t, where omega is angular speed, theta is turn angle, and t is time.
- Distance from wheel rotations: d = pi D N, where D is wheel diameter and N is wheel rotations.
- Obstacle rule example: if measured distance < safety distance, stop or turn.
- Waypoint path distance on a grid: d = sqrt((x2 - x1)^2 + (y2 - y1)^2).
Vocabulary
- Sensor
- A device that measures something about the robot or its environment, such as light, distance, color, or rotation.
- Line following
- A navigation method where a robot uses a light or color sensor to stay on or near a marked line.
- Waypoint
- A marked target position that a robot drives toward as one step in a larger route.
- Obstacle avoidance
- A behavior in which a robot detects objects in its path and changes motion to avoid hitting them.
- Map
- A stored model of the robot's surroundings that can show walls, open spaces, obstacles, and possible paths.
Common Mistakes to Avoid
- Ignoring sensor placement, because a line sensor too far from the ground or off center may read the path late or miss it completely.
- Driving too fast for the sensor update rate, because the robot may move past a line, wall, or waypoint before the program can react.
- Treating wheel rotations as perfect distance, because slipping wheels, uneven floors, and battery changes can make odometry inaccurate.
- Using only one navigation rule for every situation, because line following, obstacle avoidance, waypoint driving, and mapping solve different problems.
Practice Questions
- 1 A robot drives 2.4 m in 6 s while following a line. What is its average speed in m/s?
- 2 A robot wheel has a diameter of 6 cm. If the wheel turns 5 full rotations, about how far does the robot travel in centimeters? Use d = pi D N and pi = 3.14.
- 3 A robot must cross a practice field with a line path, two obstacles, three marked waypoints, and one unknown blocked area. Explain which navigation strategies it should use and in what order.
