Dot plots and stem-and-leaf plots are simple ways to organize and display small sets of numerical data. They help students see the shape of a distribution, identify repeated values, and estimate the center and spread of the data. These displays are especially useful when you want to keep the actual data values visible instead of hiding them inside bars or intervals.
Learning both methods builds a strong foundation for later topics like histograms, box plots, and measures of center.
A dot plot places a dot above each value on a number line, so stacks of dots show how often values repeat. A stem-and-leaf plot splits each number into a stem, usually the tens place, and a leaf, usually the ones place, so the data stay ordered and easy to read. Because both plots preserve individual values, they are excellent for comparing small data sets and spotting clusters, gaps, and outliers.

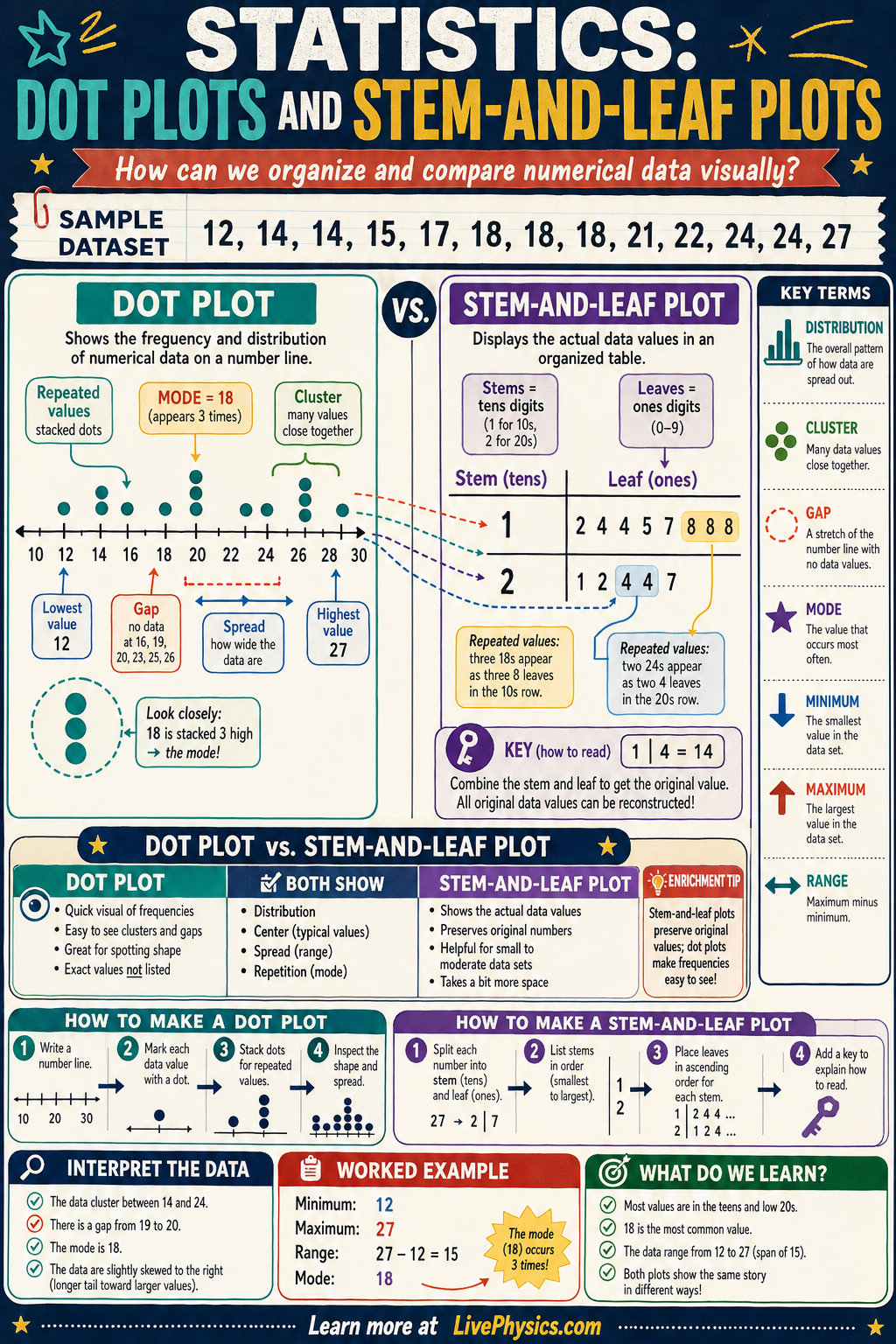

When the same data are shown in both formats, students can see that each display gives the same information in a different visual form.
Understanding Dot Plots and Stem-and-Leaf Plots
Good graphs begin with careful data handling. Put the numbers in order before making either display. This step makes missing values, repeated values, and unusually large or small values easier to catch.
For a dot plot, choose a number line that covers every value and uses equal steps. A scale that skips values can work, but the skipped part must be shown clearly. For a stem-and-leaf plot, write a key before interpreting the rows.
The key tells the reader exactly what each stem and leaf mean. This matters when measurements include decimals, such as times of twelve point three seconds or temperatures of eighteen point six degrees.
Once a display is made, its main value is in the pattern rather than any single number. A tall pile of dots or a row with many leaves shows a common result. Several nearby values form a cluster.
An empty stretch between values is a gap. One value far from the rest may be an outlier. These features can suggest real causes.
A gap in test scores might show two groups of students who had different levels of preparation. An outlier in travel times might come from a traffic delay.
It should not be removed just because it looks unusual. First check whether it was recorded correctly and consider what it tells you about the situation.
These displays help with measures of center because the ordered values remain available. The median can be found by counting inward from both ends until the middle value or middle pair is reached. The mode is the value with the greatest frequency.
The range describes the full width from the smallest result to the largest result, but it can be strongly affected by one extreme value. Looking at the entire shape prevents misleading conclusions.
Two classes can have the same average score while one class has tightly grouped scores and the other has scores spread widely across the scale. A visual display makes that difference clear.
Stem-and-leaf plots need consistent place value. If stems represent tens, every leaf must represent ones. A value of one hundred can require a new stem rather than forcing it into the ninety row.
Split stems can make a crowded plot easier to read. One row can hold leaves from zero through four, while the next row holds leaves from five through nine. This keeps long rows from hiding the pattern.
In science classes, these methods are useful for repeated measurements such as plant heights, pulse rates, or reaction times. Students should pay close attention to units, rounding, and the key. A plot can be neatly drawn yet still be wrong if values were rounded differently or measured in different units.
Key Facts
- A dot plot shows each data value as one dot placed above its position on a number line.
- In a stem-and-leaf plot, value = 10 x stem + leaf for two-digit whole numbers.
- The leaves in each row should be written in ascending order.
- Frequency =
- Range =
- For small data sets, both dot plots and stem-and-leaf plots preserve the original data values.
Vocabulary
- dot plot
- A graph that shows each data value as a dot above a number line.
- stem-and-leaf plot
- A table-like display that separates each number into a stem and a leaf to keep values ordered.
- frequency
- The frequency of a value is the number of times it appears in a data set.
- distribution
- The distribution describes how data values are spread out across possible values.
- outlier
- An outlier is a value that is much larger or much smaller than most of the other data.
Common Mistakes to Avoid
- Placing dots between tick marks on a dot plot, which is wrong because each dot must sit exactly above its actual data value on the number line.
- Writing stem-and-leaf leaves out of order, which is wrong because unordered leaves make the data harder to read and can hide the true shape of the distribution.
- Using inconsistent place values for stems and leaves, which is wrong because every number in the plot must be split the same way for the display to make sense.
- Forgetting that repeated values need repeated dots or repeated leaves, which is wrong because leaving out duplicates changes the frequencies and misrepresents the data set.
Practice Questions
- 1 A class recorded these quiz scores: 12, 15, 15, 17, 18, 21, 21, 24, 26. Make a dot plot and a stem-and-leaf plot for the data, then find the range.
- 2 The daily temperatures for one week were 63, 65, 65, 66, 68, 70, 72, 72, 72, 74. Create a stem-and-leaf plot using tens as stems and ones as leaves. Then state the frequency of 72 and the range of the data.
- 3 A data set has several repeated values and one unusually large value. Explain how that pattern would appear in a dot plot and in a stem-and-leaf plot.
