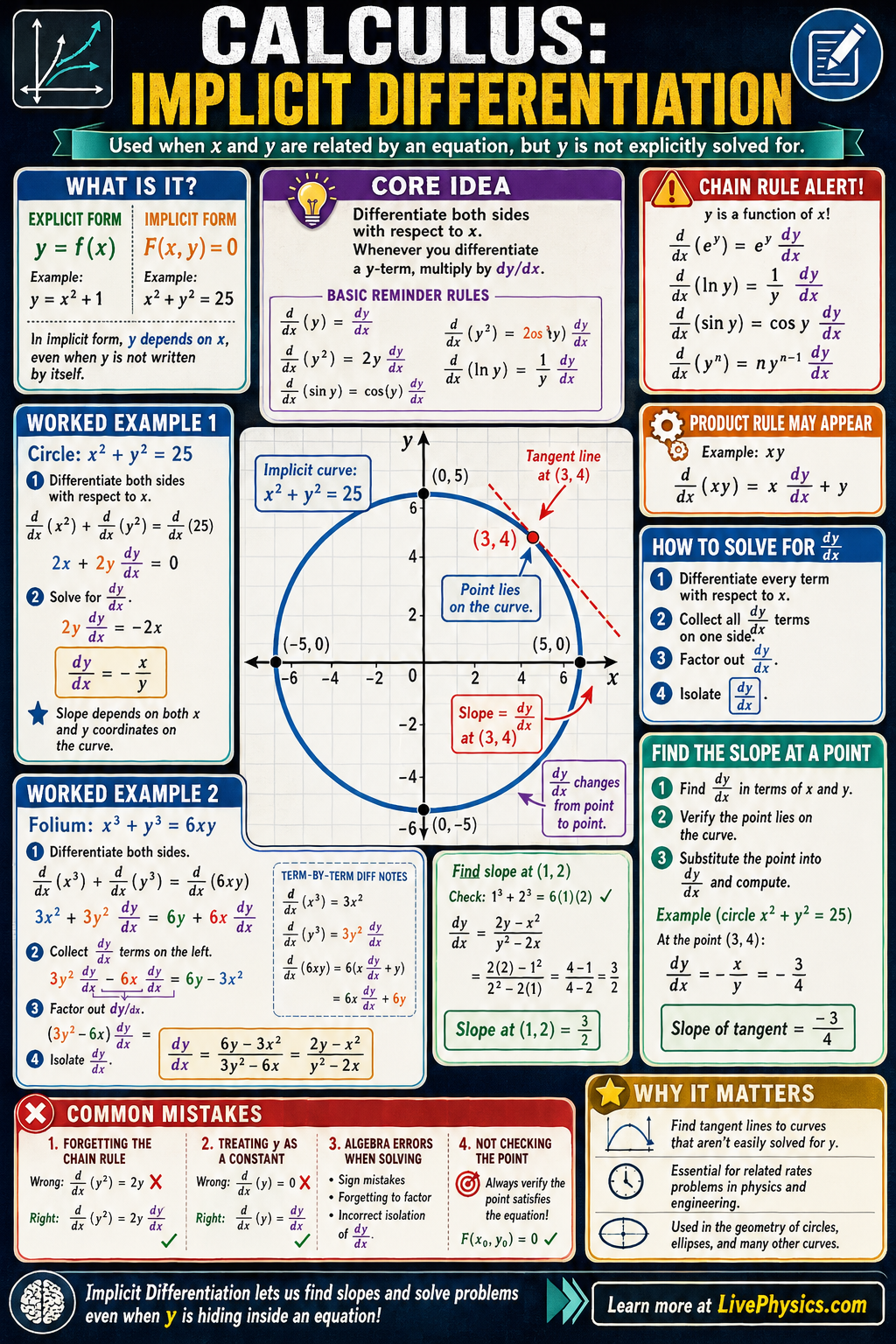

Implicit Differentiation Infographic

Implicit differentiation is a method for finding derivatives when $x$ and $y$ are mixed together in one equation, such as $x^2 + y^2 = 25$ . It matters because many important curves cannot be written neatly as $y = f(x)$ , yet we still need slopes, tangent lines, and rates of change on those curves. This technique lets us differentiate both sides of an equation and solve for $\frac{dy}{dx}$ .

It is especially useful in geometry, physics, and related rates problems.

The key idea is to treat $y$ as a function of $x$ , even when the equation does not isolate $y$ . When differentiating any term containing $y$ , you must use the chain rule, so for example $\frac{d}{dx}(y^3) = 3y^2 \frac{dy}{dx}$ . After differentiating every term, collect the $\frac{dy}{dx}$ terms on one side and solve algebraically.

The result gives the slope of the tangent line at points on the curve, and sometimes a second derivative can be found by differentiating again.

Understanding Implicit Differentiation

An implicit equation can describe more than one output for the same input. A circle is the familiar case. For most horizontal positions, it has an upper point and a lower point.

These are two branches of the same curve. A single formula for y would need a plus or minus choice, which can hide useful structure. Implicit work keeps the whole curve together.

The derivative found at a point describes the branch passing through that point. This is why the coordinates of the point matter whenever a numerical slope is needed.

The chain rule appears because y changes when x changes. Think of y as a hidden input that responds to movement in x. A term such as the sine of y does not differentiate to cosine of y alone.

Its derivative is cosine of y times the derivative of y with respect to x. The same idea applies to roots, exponentials, logarithms, and powers involving y. Students often remember the extra derivative on simple powers but forget it inside other functions.

A useful habit is to circle every y before differentiating. Then check that each circled y has produced a factor involving the derivative of y with respect to x.

Mixed terms need extra care because both parts vary. For a product such as x times y, use the product rule. One part comes from differentiating x while holding y in place, giving y.

The other comes from holding x in place while differentiating y, giving x times the derivative of y with respect to x. This result is not the same as treating y as a constant. Constants truly stay fixed, but y is linked to x by the original equation.

In related rates problems, the same reasoning connects changing measurements. The radius and height of a filling tank, for example, may be connected by a volume equation even if neither measurement is written as a direct function first.

A derivative formula may fail at certain points, and that failure has geometric meaning. If solving creates a denominator that becomes zero, the curve may have a vertical tangent, a corner, or a point where the usual local branch description breaks down. On a circle, points farthest left or right have vertical tangents, so their slopes are not ordinary finite numbers.

At top or bottom points, the tangent is horizontal. Always substitute the point only after finding the general derivative, unless the task clearly asks for one point from the start. Then inspect the result.

A zero numerator often indicates a horizontal tangent. A zero denominator signals that more thought is needed.

For a second derivative, differentiate every term again, including factors containing the first derivative. The first derivative is itself a changing quantity, not a constant.

Key Facts

If $F(x,y) = 0$ , then differentiate both sides with respect to $x$ and solve for $\frac{dy}{dx}$ .
Chain rule with $y$ terms: $\frac{d}{dx}(y^n) = n y^{n-1} \frac{dy}{dx}$ .
Example: $x^2 + y^2 = 25$ gives $2x + 2y \frac{dy}{dx} = 0$ , so $\frac{dy}{dx} = -\frac{x}{y}$ .
Product example: $\frac{d}{dx}(xy) = x \frac{dy}{dx} + y$ .
Tangent line at $(a,b)$ : $y - b = m(x - a)$ , where $m = \frac{dy}{dx}$ evaluated at $(a,b)$ .
Second derivative often requires differentiating $\frac{dy}{dx}$ implicitly again and then substituting the first derivative.

Vocabulary

Implicit equation: An equation that relates x and y together without necessarily solving for y alone.
Implicit differentiation: A method of differentiating both sides of an equation with respect to $x$ to find $\frac{dy}{dx}$ .
Chain rule: A differentiation rule used when a variable like $y$ depends on $x$ , causing a factor of $\frac{dy}{dx}$ to appear.
Tangent line: A line that touches a curve at a point and has the same instantaneous slope there.
$\frac{dy}{dx}$: Notation for the derivative of y with respect to x, representing the slope of the curve.

Common Mistakes to Avoid

Forgetting the chain rule on $y$ terms, which is wrong because $y$ depends on $x$ , so $\frac{d}{dx}(y^n)$ must include $\frac{dy}{dx}$ .
Differentiating $xy$ as $x \frac{dy}{dx}$ only, which is wrong because $xy$ is a product and needs the product rule: $\frac{d}{dx}(xy) = x \frac{dy}{dx} + y$ .
Plugging in a point before solving for $\frac{dy}{dx}$ , which is wrong because it can make the algebra harder or hide needed derivative terms.
Assuming every implicit curve gives one y value for each x, which is wrong because many implicit relations fail the vertical line test and can have multiple branches.

Practice Questions

1 Find $\frac{dy}{dx}$ for the curve $x^2 + y^2 = 36$ , then find the slope at the point $(3, 3\sqrt{3})$ .
2 For the equation $x^3 + y^3 = 6xy$ , use implicit differentiation to find $\frac{dy}{dx}$ .
3 Explain why differentiating y^2 with respect to x gives 2y dy/dx instead of just 2y.
