Electricity can move through a circuit in two main ways: direct current, or DC, and alternating current, or AC. Understanding the difference matters in engineering because each type is better for certain devices, power systems, and energy transfer problems. Batteries, solar cells, wall outlets, motors, and electronics all depend on choosing the right kind of current.

Engineers compare AC and DC by looking at how charge flows, how voltage changes with time, and how easily power can be controlled or transmitted.

In DC circuits, current flows in one direction and the voltage is usually steady, which makes DC useful for electronics, batteries, and many control systems. In AC circuits, current reverses direction periodically, often in a sine-wave pattern, which makes AC convenient for power grids because transformers can raise or lower voltage efficiently. A typical AC voltage can be written as v(t) = Vmax sin(2πft), where f is frequency.

Modern engineering often combines both forms, using rectifiers, inverters, and converters to change AC to DC or DC to AC when needed.

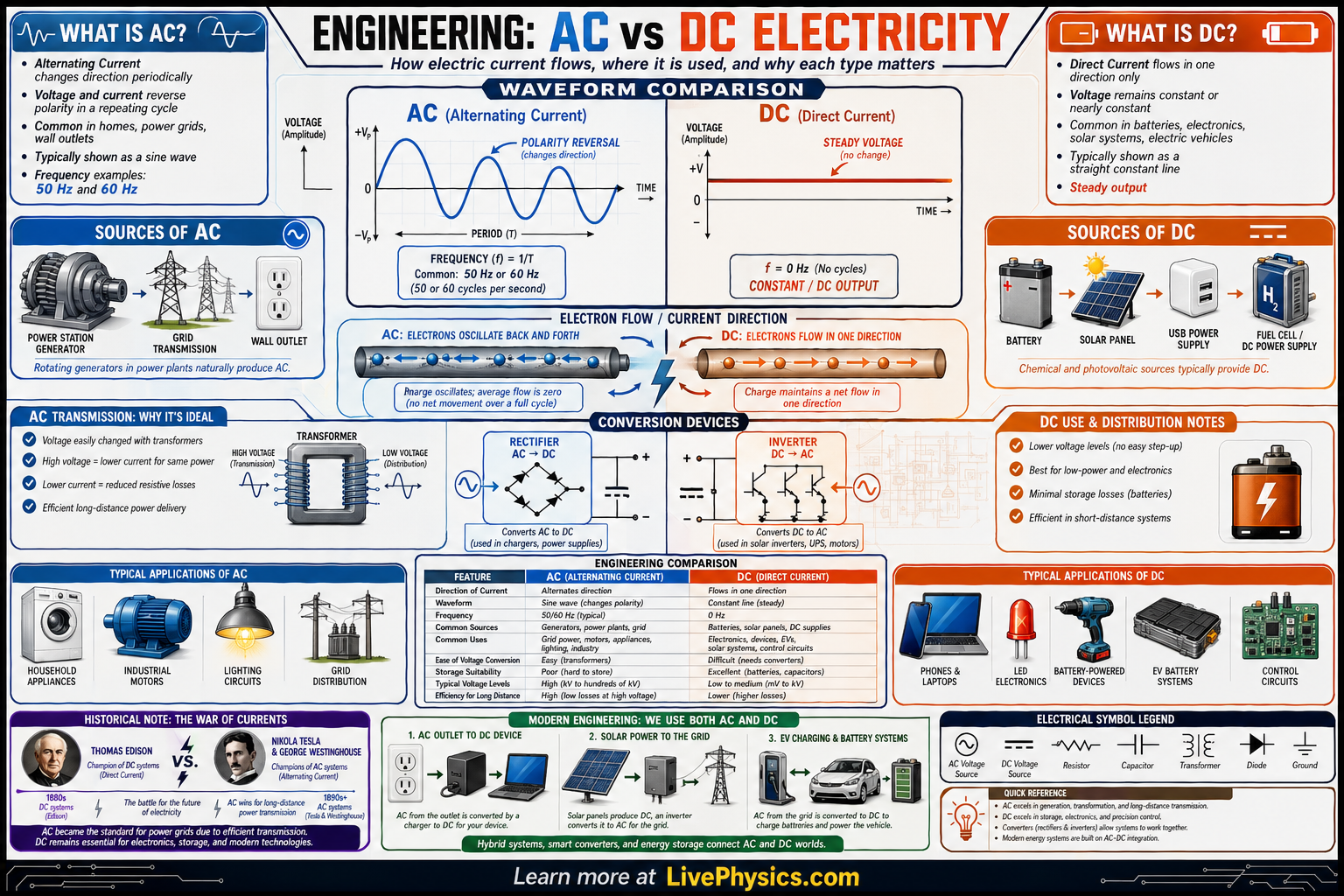

Understanding AC vs DC Electricity

A waveform is a graph of voltage over time. It helps engineers see more than the direction of current. The height shows how strongly charges are pushed at a given moment.

The spacing between repeated peaks shows frequency. A household outlet may be described by one voltage value, but that value is usually an effective heating value, not the highest point reached by the waveform.

This is called root mean square voltage. It allows AC supplies to be compared fairly with DC supplies because equal root mean square voltage across the same resistor produces equal average heating.

Transformers work through changing magnetic fields. A coil connected to an AC source produces a magnetic field that continually changes. A nearby coil experiences that changing field, which creates a voltage in the second coil.

The number of wire turns in each coil sets whether the output voltage is higher or lower. A steady DC supply creates a magnetic field that becomes constant after switch on. A constant field does not keep inducing voltage in the other coil.

This is why ordinary transformers need changing current. High voltage transmission reduces current for a given amount of power. Lower current means less energy lost as heat in transmission wires.

Most electronic devices do not run directly from outlet power. A phone charger first changes the incoming AC into DC with a rectifier. Diodes in the rectifier act like one way gates for charge flow.

The resulting output has bumps rather than a perfectly steady level. Capacitors store charge briefly and fill in many of those dips. Further circuits regulate the voltage to protect delicate components.

Laptop adapters, televisions, LED lamps, and game consoles use related stages. Solar panels and batteries provide DC, while an inverter uses rapidly controlled switches to create AC for appliances or for sending solar energy into the grid.

Real circuits are not made only of resistors. Coils, called inductors, resist changes in current. Capacitors resist sudden changes in voltage.

In AC circuits these parts can shift the timing between voltage and current. As a result, some energy moves back and forth between the source and the components instead of becoming useful work or heat. Engineers call this reactive power.

It matters in motors, fluorescent lighting, industrial equipment, and long cables. When studying AC, pay attention to peak value, effective value, frequency, phase shift, and power loss.

Keep track of whether a stated voltage is a peak value or an effective value. Mixing them causes many calculation errors and can lead to choosing parts with unsafe voltage ratings.

Key Facts

  • DC current flows in one direction, while AC current changes direction periodically.
  • Electrical power is P = VI.
  • For a resistor, Ohm's law is V = IR.
  • A sinusoidal AC voltage can be modeled as v(t) = Vmax sin(2πft).
  • In many countries, power line frequency is f = 50 Hz or f = 60 Hz.
  • For sinusoidal AC, Vrms = Vmax / sqrt(2).

Vocabulary

Direct current
Direct current is electric current that flows in only one direction through a circuit.
Alternating current
Alternating current is electric current that repeatedly reverses direction over time.
Frequency
Frequency is the number of complete AC cycles that occur each second, measured in hertz.
Transformer
A transformer is a device that changes AC voltage levels using magnetic induction.
Rectifier
A rectifier is a circuit or device that converts AC into DC.

Common Mistakes to Avoid

  • Assuming AC always has a higher voltage than DC, which is wrong because either AC or DC can exist at many different voltage levels depending on the source and circuit design.
  • Thinking electrons travel from the power plant to every appliance in AC systems, which is wrong because in AC the charges mainly oscillate locally while energy is transferred through the electric field in the circuit.
  • Using peak AC voltage as if it were the effective value, which is wrong because household AC ratings are usually given in RMS, not maximum voltage.
  • Believing transformers work with DC the same way they work with AC, which is wrong because a transformer needs changing current to produce changing magnetic flux.

Practice Questions

  1. 1 A 12 V battery powers a resistor and produces a current of 3 A. Find the resistance using Ohm's law.
  2. 2 An AC source has a peak voltage of 170 V. Calculate its RMS voltage using Vrms = Vmax / sqrt(2).
  3. 3 A phone charger is plugged into a wall outlet but charges a battery with DC. Explain why the charger must convert the electrical output before it reaches the battery.
