Red-light camera systems use engineering to detect when a vehicle enters an intersection after the signal has turned red. The goal is to improve safety by discouraging drivers from crossing during a red light, when side traffic or pedestrians may already have the right of way. A typical system combines traffic signals, pavement sensors, cameras, timing electronics, and image processing.
Each part must work together so the system records evidence only when the vehicle crosses the stop line too late.

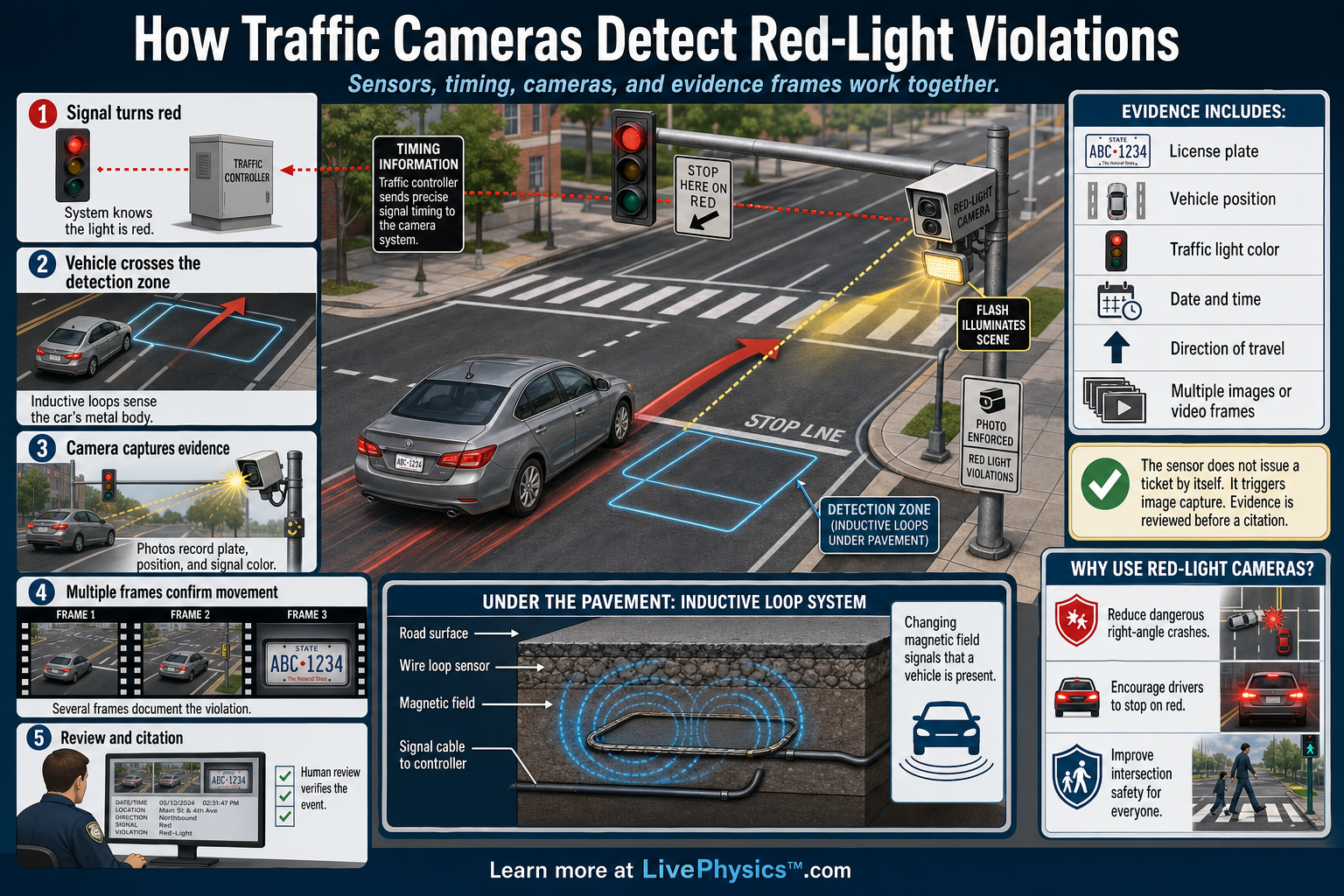

Understanding How Traffic Cameras Detect Red-Light Violations
An inductive loop is a wire coil placed in a narrow cut in the road surface. The coil is connected to electronics in a roadside cabinet. It produces a changing magnetic field.
When a vehicle with a large metal body moves over the loop, it changes the loop's electrical inductance. The controller notices this change as a vehicle presence signal. The system must be tuned carefully because a small motorcycle, a high truck, or a car stopped near the edge of a loop can produce different signals.
Road repairs, broken wires, and water entering pavement cuts can affect reliability. Technicians test loops after installation and check them again during maintenance.
The controller needs an accurate common clock. It receives the exact moment when the traffic signal changes from yellow to red. This timing is normally obtained from the signal controller, not guessed from the image.
When a loop changes state, the camera system stores a time stamp for that event. It can compare the crossing time with the red start time. A very short delay may be built into the system to prevent a trigger at the instant of the signal change.
This helps account for electrical switching times. The recorded red time shows how long the light had been red when the vehicle reached the detection point.
Two loops can provide more information than one. Their known separation gives the system a distance. The time between detections gives an estimate of speed.
Speed equals distance divided by time. A short travel time means a higher estimated speed. This information can help select the best camera timing.
A fast vehicle may need images taken closer together than a slow vehicle. The system does not use speed alone to decide every violation.
Its main task is to establish the vehicle's path relative to the stop line and the intersection. Lane specific sensors matter because several vehicles may pass through nearby lanes at nearly the same time.
Images are arranged as a sequence rather than a single snapshot. One frame can show the vehicle near or beyond the stop line. A later frame can show it farther into the intersection.
The signal state, lane markings, date, time, location, and plate image may be stored with the record. Clear plate reading can be difficult at night, in rain, or when headlights create glare. Infrared illumination is often used because it can light the plate without producing a distracting visible flash.
Students should notice that the engineering problem is not simply taking a photograph. It is linking sensor data, signal timing, camera position, and vehicle identity into a record that can be checked by a person. A vehicle already in the intersection before red, an emergency vehicle, or a permitted turn may require review under local traffic rules.
Key Facts
- A violation is usually detected when the signal is red and a vehicle crosses the stop line after the red phase begins.
- Inductive loop sensors use changes in magnetic field to detect metal vehicles above the pavement.
- Speed can be estimated with two sensors: v = d / t, where d is the distance between sensors and t is the time between detections.
- Multiple photos or video frames help show the signal color, vehicle position, and license plate over time.
- Time after red begins is called red time: red time = detection time - red start time.
- Evidence is stronger when the photos show the car before the intersection, inside the intersection, and the red signal clearly.
Vocabulary
- Inductive loop sensor
- A wire loop embedded in the road that detects a vehicle by sensing a change in the magnetic field caused by metal.
- Stop line
- The painted line where drivers are supposed to stop before entering an intersection.
- Red phase
- The time interval when a traffic signal shows red for a lane or direction of travel.
- Evidence frame
- A photo or video image used to show important details such as signal color, vehicle position, time, and license plate.
- Timestamp
- A recorded time attached to sensor data or images so events can be matched in the correct order.
Common Mistakes to Avoid
- Assuming the camera alone detects the violation. In many systems, pavement sensors trigger the camera, while the camera records visual evidence.
- Ignoring the stop line position. A violation depends on when the vehicle enters the intersection area, not just when it appears somewhere in the photo.
- Thinking one blurry photo is enough proof. Systems usually use multiple frames and timestamps to document signal color, car movement, and license plate information.
- Confusing yellow light entry with red-light entry. If the vehicle crosses the stop line before the red phase begins, it is usually not counted the same way as entering after red.
Practice Questions
- 1 Two pavement sensors are 4.0 m apart. A car triggers the first sensor and then the second sensor 0.25 s later. What is the car's speed in m/s?
- 2 A red signal begins at 12.00 s on the system clock. A vehicle crosses the stop line at 13.35 s. How long after the red began did the vehicle enter the intersection?
- 3 A camera image shows a car in the middle of the intersection while the light is red, but there is no image showing when it crossed the stop line. Explain why engineers use multiple frames and sensor timestamps instead of relying on that one image.
