Industrial sensors help machines measure position, motion, temperature, pressure, flow, and other physical conditions. This cheat sheet gives students a quick reference for common sensor types used in manufacturing, robotics, automation, and control systems. It is useful for comparing sensor outputs, choosing the right device, and understanding how measurements become electrical signals.
Key Facts
- A proximity sensor detects nearby objects without physical contact, and common types include inductive, capacitive, ultrasonic, and photoelectric sensors.
- An inductive proximity sensor detects metal objects using an electromagnetic field, while a capacitive proximity sensor can detect many materials by sensing changes in capacitance.
- A digital sensor output is usually ON or OFF, while an analog sensor output changes continuously, such as 0 to 10 V or 4 to 20 mA.
- Sensor span equals maximum input value minus minimum input value, so span = max range - min range.
- Measurement error can be calculated as error = measured value - true value.
- Percent error can be calculated as percent error = absolute error / true value x 100%.
- Resolution is the smallest change a sensor can detect, and higher resolution means smaller changes can be measured.
- For a linear sensor, output can often be modeled by output = slope x input + offset.
Vocabulary
- Sensor
- A device that detects a physical condition and converts it into an electrical signal or readable output.
- Proximity Sensor
- A sensor that detects whether an object is nearby without needing direct contact.
- Encoder
- A sensor that measures position, speed, or direction of a rotating or moving part.
- Calibration
- The process of comparing and adjusting a sensor so its output matches a known standard.
- Accuracy
- How close a sensor reading is to the true or accepted value.
- Resolution
- The smallest change in input that a sensor can reliably detect.
Common Mistakes to Avoid
- Confusing accuracy with resolution is wrong because a sensor can show very small changes but still be far from the true value.
- Using the wrong sensor type for the material is wrong because inductive sensors detect metal well, but they are not the best choice for plastic, glass, or liquid targets.
- Ignoring the sensor range is wrong because readings outside the rated range may be clipped, unstable, or inaccurate.
- Mixing up analog and digital outputs is wrong because an analog output gives changing values, while a digital output only switches between states such as ON and OFF.
- Skipping calibration is wrong because sensors can drift over time, causing the machine to make decisions from incorrect measurements.
Practice Questions
- 1 A pressure sensor has a range from 0 psi to 200 psi. What is its span?
- 2 A temperature sensor reads 76 degrees C when the true temperature is 80 degrees C. What is the measurement error?
- 3 A level sensor has a true value of 50 cm and an absolute error of 2 cm. What is the percent error?
- 4 A robot must detect both metal brackets and plastic bins on a conveyor. Which sensor type would be more flexible than an inductive proximity sensor, and why?

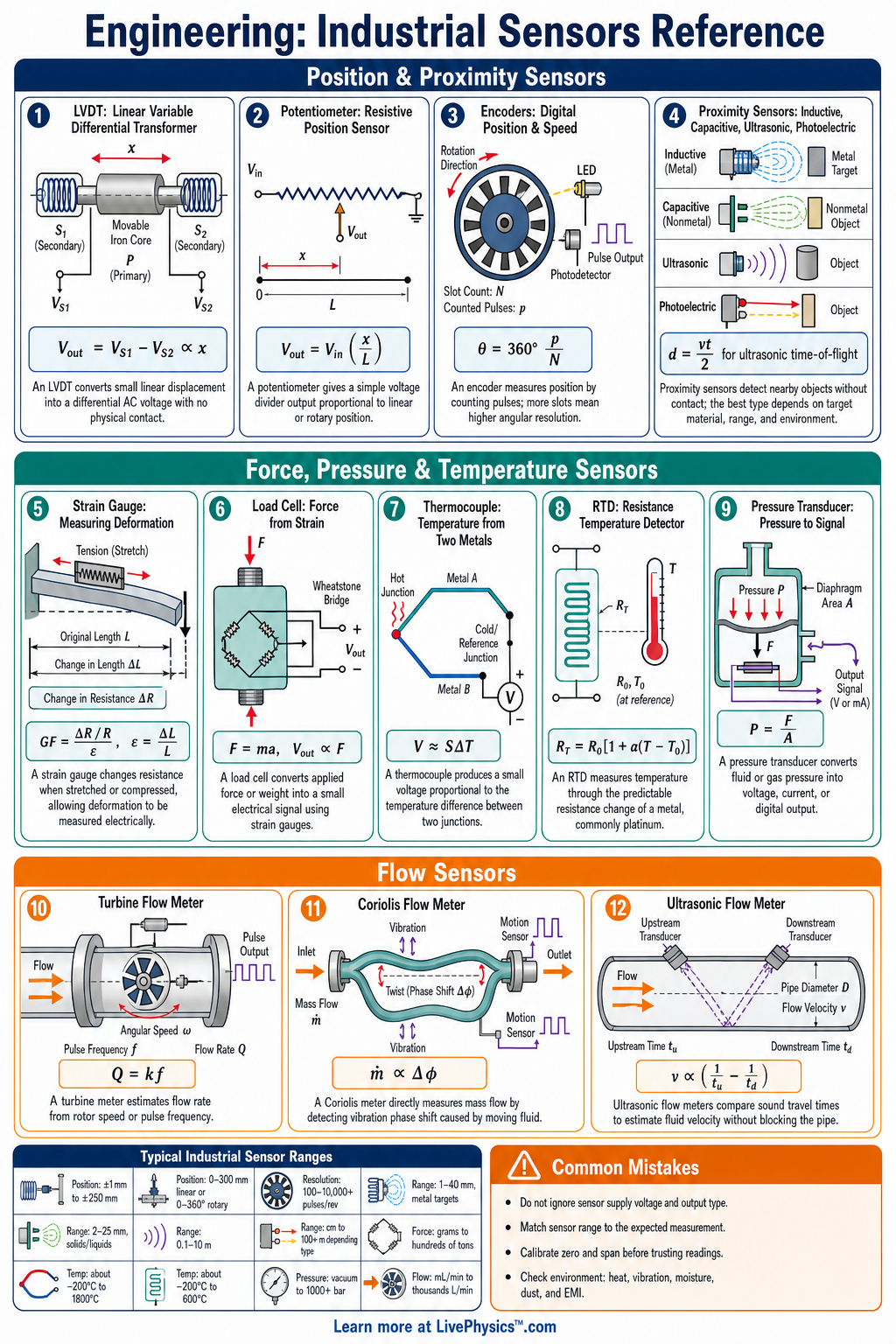

Understanding Industrial Sensors Reference
A sensor is only one part of a measurement system. Its sensing element responds to a physical change, then internal electronics turn that response into a usable signal. A controller reads the signal and makes a decision.
In a conveyor system, a sensor may report that a part has arrived. The controller can then stop a belt, start a robot, or count the item.
The final action depends on more than the sensor. Wiring, power supply quality, software settings, and the mechanical position of the sensor all affect the result.
Choosing a sensor means matching its operating principle to the job. Metal parts near a machine tool are often detected with inductive sensing because oil, dust, and visible light usually cause little trouble. A photoelectric sensor can detect an object from farther away, but its performance can change with object color, surface shine, or dirty lenses.
Ultrasonic sensing uses sound, so it can find clear plastic or glass that may be difficult for light based sensors. Engineers must consider target material, sensing distance, speed, temperature, vibration, moisture, and available mounting space.
Signal type matters because industrial equipment often runs over long cables in electrically noisy places. Motors, relays, welders, and variable speed drives can create interference. A simple switching signal is useful when a machine only needs to know whether a condition has been reached.
A continuously changing signal is needed when the exact value matters, such as tank level or hydraulic pressure. Current signals are common in factories because the same current can be measured reliably even when a cable has some resistance. Correct grounding, shielding, connector quality, and cable routing help prevent false readings.
Accuracy is not the same as resolution or repeatability. Accuracy describes how close a reading is to the real value. Resolution describes the smallest change that can appear in the reading.
Repeatability describes whether the sensor gives nearly the same result when it measures the same condition many times. A sensor can show very small changes while still being consistently offset from the true value. Calibration finds this offset and checks the relationship between input and output.
For a linear device, output equals slope times input plus offset. Calibration may adjust the slope, the offset, or both.
Students should pay attention to units, ranges, tolerances, and test conditions. A pressure sensor rated for one range may be damaged if the system pressure goes beyond its safe limit. A temperature probe may respond slowly because heat needs time to move into the sensing element.
When testing a sensor, change one condition at a time and record the reading. Compare measurements with a trusted reference.
Then calculate error as measured value minus true value. This habit helps separate a sensor problem from a wiring problem, a programming problem, or a poorly designed mechanical setup.
