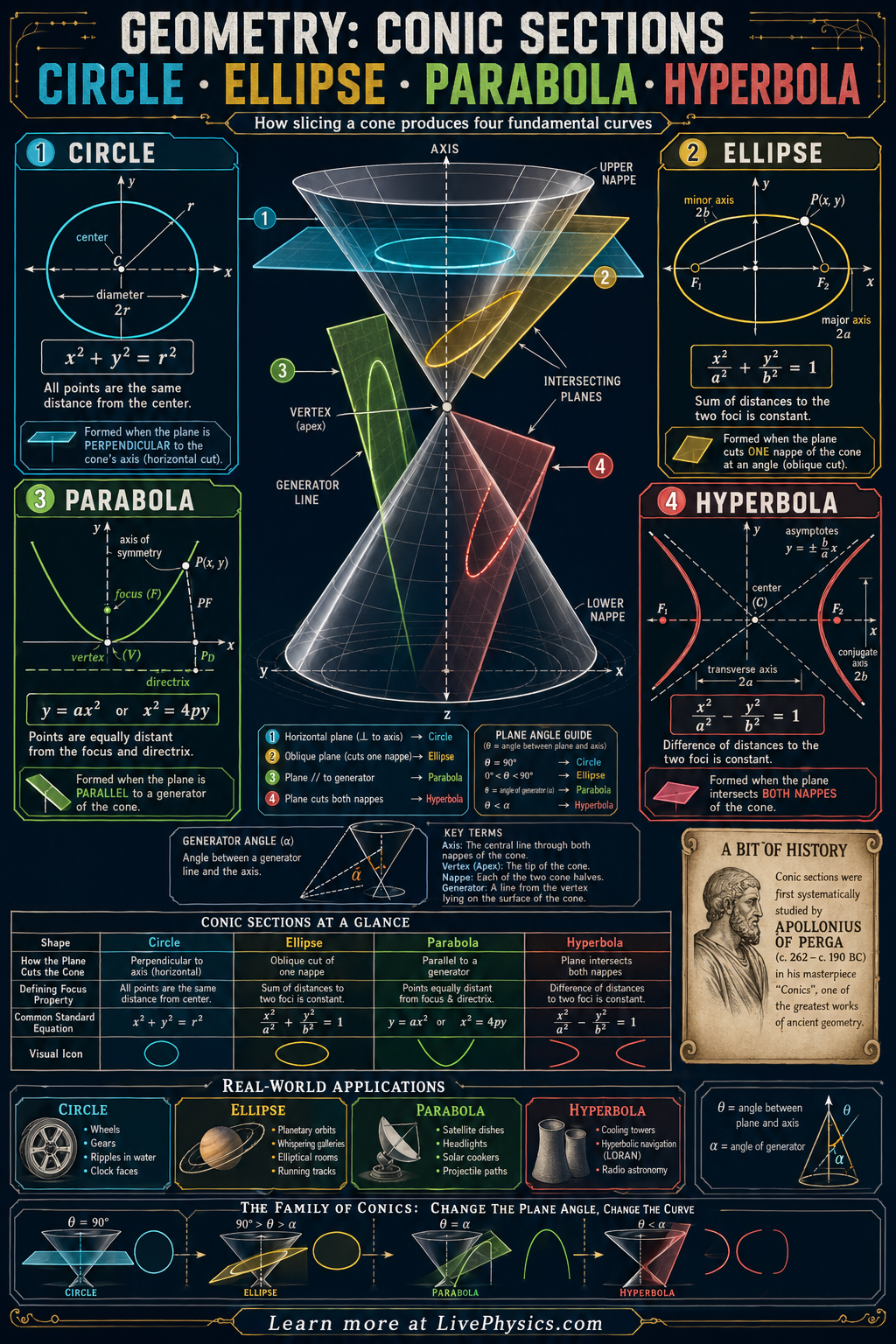

Conic sections are the curves formed when a plane cuts through a double cone, and they include the circle, ellipse, parabola, and hyperbola. These shapes appear throughout science, engineering, and astronomy because they describe orbits, lenses, antennas, and many kinds of motion. Learning how each curve is created helps students connect geometry to real physical systems. It also builds a foundation for analytic geometry, where equations describe shapes precisely.

The type of conic depends on the angle and position of the cutting plane relative to the cone. A horizontal slice gives a circle, a tilted slice through one nappe gives an ellipse, a slice parallel to a slanted side gives a parabola, and a steeper slice cutting both nappes gives a hyperbola. Each conic has a standard equation and special geometric features such as a center, vertex, focus, or asymptotes. These shared ideas make conic sections a powerful topic that links algebra, geometry, and real world modeling.

Key Facts

  • Circle standard form: (x−h)2+(y−k)2=r2(x - h)^2 + (y - k)^2 = r^2
  • Ellipse standard form: (x−h)2/a2+(y−k)2/b2=1(x - h)^2/a^2 + (y - k)^2/b^2 = 1
  • Parabola standard form: (x−h)2=4p(y−k)(x - h)^2 = 4p(y - k) or (y−k)2=4p(x−h)(y - k)^2 = 4p(x - h)
  • Hyperbola standard form: (x−h)2/a2−(y−k)2/b2=1(x - h)^2/a^2 - (y - k)^2/b^2 = 1
  • For an ellipse, c2=a2−b2c^2 = a^2 - b^2 and eccentricity e=c/ae = c/a with 0<e<10 < e < 1
  • For a hyperbola, c2=a2+b2c^2 = a^2 + b^2 and asymptotes are y−k=±ba(x−h)y - k = \pm\frac{b}{a}(x - h)

Vocabulary

Conic section
A curve formed by the intersection of a plane and a double cone.
Focus
A fixed point used to define a conic by distances from points on the curve.
Directrix
A fixed line used with a focus to define a parabola or other conics through a distance rule.
Vertex
A key point on a conic, such as the turning point of a parabola or an endpoint of a major axis.
Asymptote
A line that a hyperbola approaches but does not reach as the graph extends outward.

Common Mistakes to Avoid

  • Confusing the conic by the slice angle, which is wrong because each curve depends on whether the plane cuts one nappe, both nappes, or is parallel to a side of the cone. Always compare the plane's angle to the cone's side.
  • Using the wrong sign pattern in the equation, which is wrong because circles and ellipses use added squared terms while hyperbolas use subtraction. Check whether both squared terms have the same sign or opposite signs.
  • Assuming a parabola has a center, which is wrong because a parabola has a vertex and axis of symmetry but no center like a circle, ellipse, or hyperbola. Identify the defining features before graphing.
  • Mixing up aa, bb, and cc in ellipse and hyperbola formulas, which is wrong because cc measures focus distance while aa and bb describe axis lengths. Use c2=a2−b2c^2 = a^2 - b^2 for ellipses and c2=a2+b2c^2 = a^2 + b^2 for hyperbolas.

Practice Questions

  1. 1 A circle has center (2, -1) and radius 5. Write its equation in standard form.
  2. 2 An ellipse is centered at the origin with a = 6 and b = 4, with the major axis along the x-axis. Write its equation and find c.
  3. 3 A plane cuts a double cone and is parallel to one slanted side of the cone. Which conic section is formed, and why does that orientation produce this shape?
