Geometry Grade 9-12

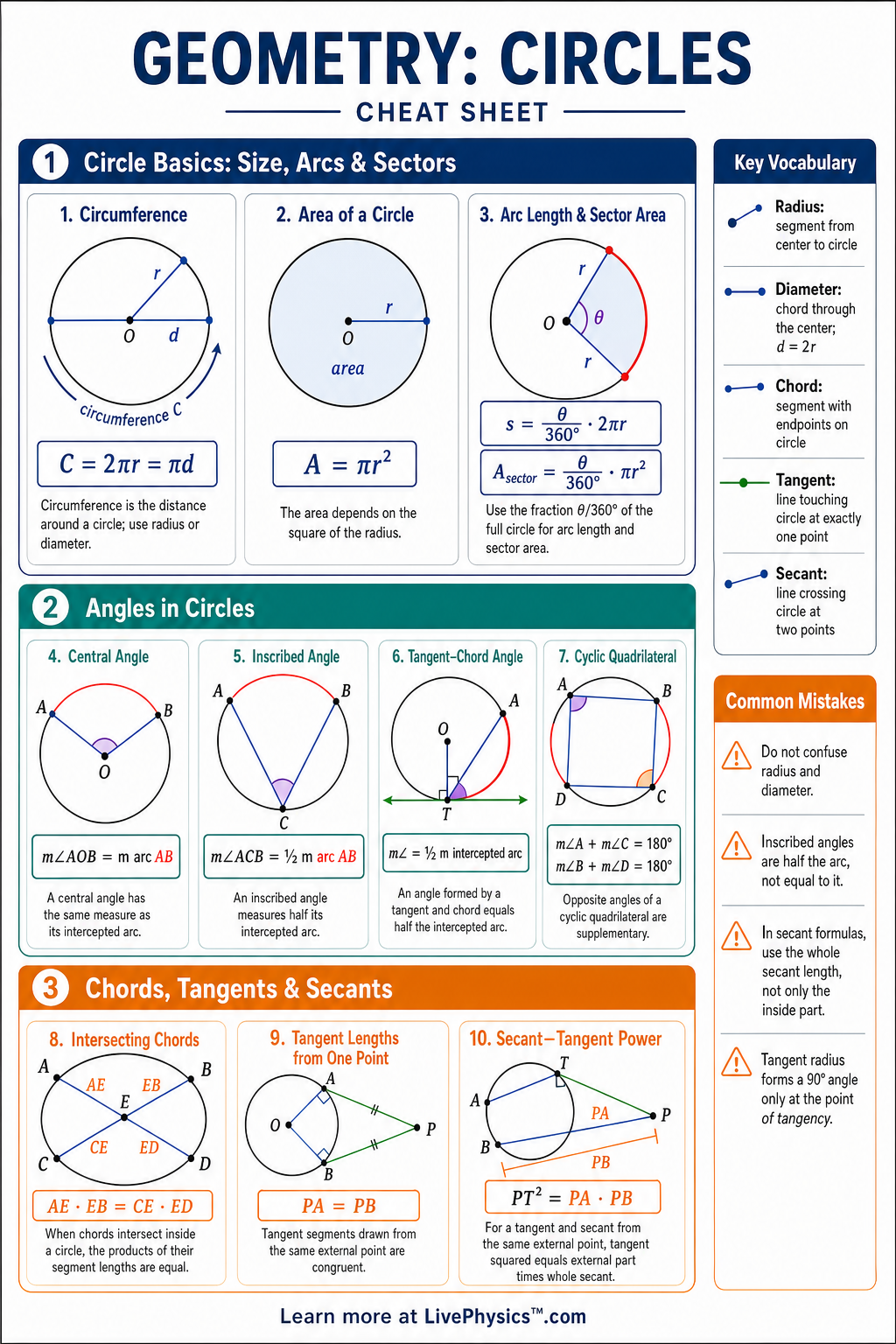

Circles Cheat Sheet

A printable reference covering circle circumference, area, arcs, sectors, chords, tangents, secants, and circle equations for grades 9-12.

TopicsGeometryShapesArea and PerimeterMeasurementAlgebraGraphs
Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

Study as Flashcards

Geometry: Circles covers the measurements, angles, lines, and equations connected to circles. Students need this cheat sheet because circle problems often combine diagrams, algebra, and angle relationships in one question. It is useful for reviewing formulas, identifying which theorem applies, and checking work on homework, quizzes, and tests.

The most important ideas are radius, diameter, circumference, area, arc length, sector area, and the relationships among chords, tangents, and secants. Central angles, inscribed angles, and intercepted arcs are closely connected. Coordinate geometry adds the standard circle equation (x−h)2+(y−k)2=r2(x - h)^2 + (y - k)^2 = r^2, where (h,k)(h,k) is the center and rr is the radius.

Key Facts

  • The diameter is twice the radius, so d=2rd = 2r and r=d2r = \frac{d}{2}.
  • The circumference of a circle is C=2πrC = 2\pi r or C=πdC = \pi d.
  • The area of a circle is A=πr2A = \pi r^2.
  • Arc length is s=θ360∘⋅2πrs = \frac{\theta}{360^\circ} \cdot 2\pi r when θ\theta is measured in degrees.
  • Sector area is A=θ360∘⋅πr2A = \frac{\theta}{360^\circ} \cdot \pi r^2 when θ\theta is measured in degrees.
  • An inscribed angle equals half its intercepted arc, so m∠ABC=12mAC^m\angle ABC = \frac{1}{2}m\widehat{AC}.
  • A tangent line is perpendicular to the radius at the point of tangency, so radius⊥tangent\text{radius} \perp \text{tangent}.
  • The standard equation of a circle is (x−h)2+(y−k)2=r2(x - h)^2 + (y - k)^2 = r^2.

Vocabulary

Radius
A radius is a segment from the center of a circle to any point on the circle.
Diameter
A diameter is a chord that passes through the center of the circle and has length d=2rd = 2r.
Chord
A chord is a segment whose endpoints both lie on the circle.
Tangent
A tangent is a line that touches a circle at exactly one point and is perpendicular to the radius at that point.
Secant
A secant is a line that intersects a circle at two points.
Central Angle
A central angle is an angle whose vertex is the center of the circle and whose sides are radii.

Common Mistakes to Avoid

  • Using diameter instead of radius in area formulas is wrong because A=πr2A = \pi r^2 requires the radius, not the diameter.
  • Forgetting to square the radius in A=πr2A = \pi r^2 is wrong because area is measured in square units and grows with r2r^2.
  • Treating an inscribed angle as equal to its intercepted arc is wrong because an inscribed angle is half the measure of its intercepted arc.
  • Using 360∘360^\circ formulas with radians is wrong because s=θ360∘⋅2πrs = \frac{\theta}{360^\circ} \cdot 2\pi r assumes the angle is measured in degrees.
  • Writing the circle equation with the wrong signs is wrong because (x−h)2+(y−k)2=r2(x - h)^2 + (y - k)^2 = r^2 has center (h,k)(h,k), so (x+3)2(x + 3)^2 means the center has xx-coordinate −3-3.

Practice Questions

  1. 1 A circle has radius 6 cm6\text{ cm}. Find its circumference and area in terms of π\pi.
  2. 2 A sector has radius 10 m10\text{ m} and central angle 72∘72^\circ. Find the arc length and sector area.
  3. 3 Find the center and radius of the circle (x−4)2+(y+2)2=49(x - 4)^2 + (y + 2)^2 = 49.
  4. 4 Explain why a tangent line must be perpendicular to the radius drawn to the point of tangency.

Understanding Circles

Pi is not an arbitrary number placed into circle formulas. It comes from comparing the distance around every circle with its width through the center. No matter whether a circle is tiny or enormous, that comparison stays the same.

Area grows faster than circumference because area fills a two dimensional region. If a radius doubles, the boundary distance doubles, but the covered region becomes four times as large. This is why the radius is squared in area work.

Always label circumference in linear units, such as centimeters, while area needs square units, such as square centimeters. Mixing these units is a common sign that a calculation has gone wrong.

Arcs and sectors are fractions of a complete turn. A central angle tells how much of the full circle has been selected. For example, a ninety degree central angle selects one quarter of the boundary and one quarter of the interior.

This fraction idea works because a full turn contains three hundred sixty degrees. Arc length measures curved distance, while sector area measures a wedge shaped region. Students often confuse these because both use the same central angle.

First decide whether the question asks for a distance along an edge or an amount of surface inside a region. In real life, this distinction appears when measuring a slice of a circular track versus the painted area of a fan blade or a pizza slice.

Line relationships become easier when the diagram is read carefully. A chord has both endpoints on the circle. A secant passes through the circle, so it meets the circle at two points.

A tangent touches at exactly one point. The right angle formed by a radius and a tangent is useful because it turns many circle drawings into right triangle problems. Two tangents drawn from the same outside point have equal lengths.

When chords cross inside a circle, the product of the two pieces of one chord equals the product of the two pieces of the other chord. Related product rules apply when secants or tangents begin outside the circle. Mark the relevant points before choosing a rule, since a theorem that fits one line arrangement may not fit another.

Coordinate circle problems are really distance problems. Every point on a circle sits the same distance from its center. The equation records that fixed distance by combining horizontal change and vertical change from the center.

Signs deserve close attention. A center located right of the origin produces a subtraction inside the horizontal parentheses, while a center left of the origin produces an addition there. This feels backward at first because the equation is measuring a point's difference from the center.

To graph accurately, plot the center first, then move one radius up, down, left, and right. To check whether a point lies on the circle, substitute its coordinates and see whether its squared distance from the center matches the squared radius. Keep the radius positive before squaring it.
