Angles in circles connect geometry ideas like arcs, chords, tangents, and secants into a set of useful rules. These relationships help students find unknown angle measures and arc measures without needing every side length. They appear often in middle and high school geometry because one diagram can contain many connected facts.
Learning these patterns makes circle problems faster and more organized.
The key idea is that an angle in or around a circle is linked to the arc it intercepts. A central angle matches its intercepted arc, while an inscribed angle is half of its intercepted arc. Angles formed by tangents and secants outside the circle depend on the difference of two arcs, and angles formed inside the circle by intersecting chords depend on the average of two arcs.
Once students identify where the vertex is, they can choose the correct theorem and solve carefully.
Understanding Angle Relationships in Circles
The most reliable first step is to locate the vertex, which is the point where the two rays meet. A vertex at the center uses the center of the circle as its reference point. A vertex on the rim uses points on the circle.
A vertex strictly inside the circle usually comes from crossing chords. A vertex outside comes from lines that enter or touch the circle.
This location tells you which relationship belongs to the picture before you do any arithmetic. Many mistakes happen when students choose a rule because two lines look familiar rather than because the vertex is in the correct place.
Next, identify the exact arcs connected to the angle. Trace each ray from the vertex until it reaches the circle, then note its endpoint. Those endpoints divide the circle into arcs.
For an angle made inside the circle by two chords, the needed arcs are the arc between the angle's endpoints and the arc between the endpoints of its vertical angle. They are not always the two nearest arcs in the drawing. For an exterior angle, distinguish the near intersection points from the far intersection points.
The larger arc usually reaches between the far points, while the smaller arc reaches between the near points. Writing the point names on a rough sketch can prevent reversed subtraction.
A diameter creates several useful shortcuts. An angle with its vertex on the circle that intercepts a semicircle has a measure of ninety degrees. This fact is often called the angle in a semicircle theorem.
It explains why a triangle drawn with a diameter as one side is a right triangle. The full circle measures three hundred sixty degrees, so all arcs around it must add to three hundred sixty degrees. A semicircle measures one hundred eighty degrees.
These totals let you find a missing arc before using an angle relationship. They are especially helpful when a diagram labels minor arcs but the problem needs a major arc.
Circle angle ideas appear in designs with round parts, such as clock faces, wheels, stadium tracks, and circular road layouts. On an analog clock, the hands form central angles at the clock's center. In surveying or computer graphics, lines of sight can meet a circular boundary from inside or outside, creating the same geometric structures found in textbook diagrams.
The practical setting may look different, but the reasoning stays the same. A measured turn around a center corresponds to part of the boundary, while lines meeting from an outside point compare two portions of that boundary.
Careful notation matters more than speed. Keep angle measures and arc measures separate, even when they have the same numerical value in one special situation. Mark known values directly on the correct arc or angle.
Check whether an arc is minor or major, since the same endpoints can name two different paths around a circle. At the end, use common sense. An inscribed angle intercepting a small arc should be small.
An exterior angle should be smaller than half the difference it uses. A quick size check often catches an incorrect arc choice or a subtraction done in the wrong order.

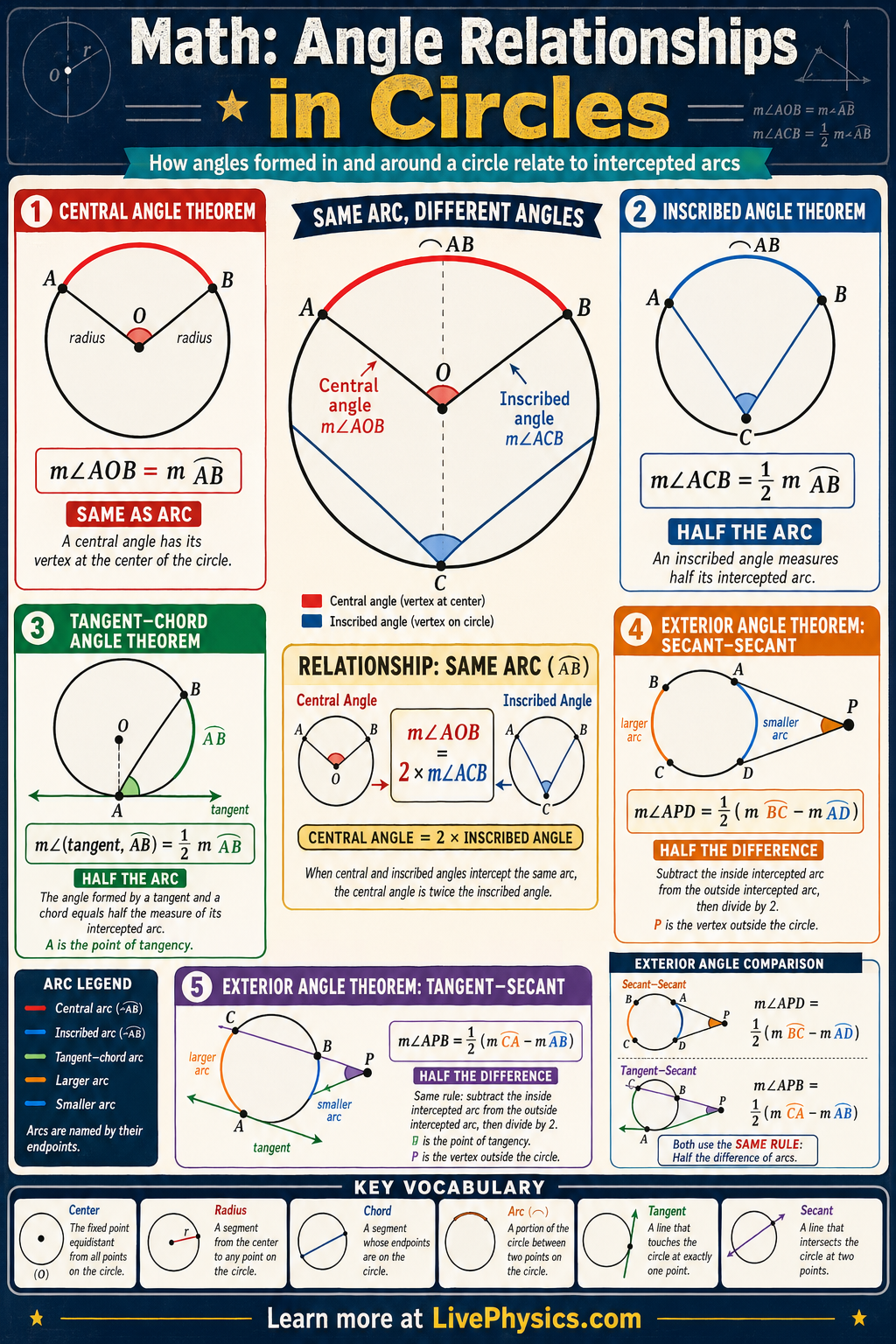

Key Facts
- Central angle measure = measure of its intercepted arc
- Inscribed angle measure = (1/2)(intercepted arc)
- If two inscribed angles intercept the same arc, then the angles are equal
- Angle formed by a tangent and a chord = (1/2)(intercepted arc)
- Angle formed by two chords intersecting inside a circle = (1/2)(arc1 + arc2)
- Angle formed outside a circle by two secants or by a tangent and a secant = (1/2)(larger intercepted arc - smaller intercepted arc)
Vocabulary
- Central angle
- A central angle is an angle whose vertex is at the center of the circle.
- Inscribed angle
- An inscribed angle is an angle whose vertex lies on the circle and whose sides are chords.
- Intercepted arc
- An intercepted arc is the arc cut off by the sides of an angle in a circle diagram.
- Tangent
- A tangent is a line that touches a circle at exactly one point.
- Secant
- A secant is a line that crosses a circle at two points.
Common Mistakes to Avoid
- Using the inscribed angle rule for every angle, which is wrong because only angles with vertices on the circle equal half their intercepted arc. First identify whether the vertex is at the center, on the circle, inside, or outside.
- Adding arcs instead of subtracting them for an outside angle, which is wrong because tangent-secant and secant-secant angles use half the difference of the intercepted arcs. Always subtract the smaller arc from the larger arc first.
- Forgetting that a central angle equals the arc exactly, which is wrong because students sometimes divide by 2 when they should not. Only inscribed and tangent-chord style angle formulas use one half.
- Mixing up arc measure and angle measure, which is wrong because they are related but not always equal. Check whether the problem asks for an arc in degrees or an angle in degrees before writing the final answer.
Practice Questions
- 1 A central angle intercepts an arc of 92 degrees. What is the measure of the central angle?
- 2 An inscribed angle intercepts an arc of 146 degrees. Find the measure of the inscribed angle.
- 3 Two different inscribed angles intercept the same arc in a circle. Explain how their measures compare and why.
