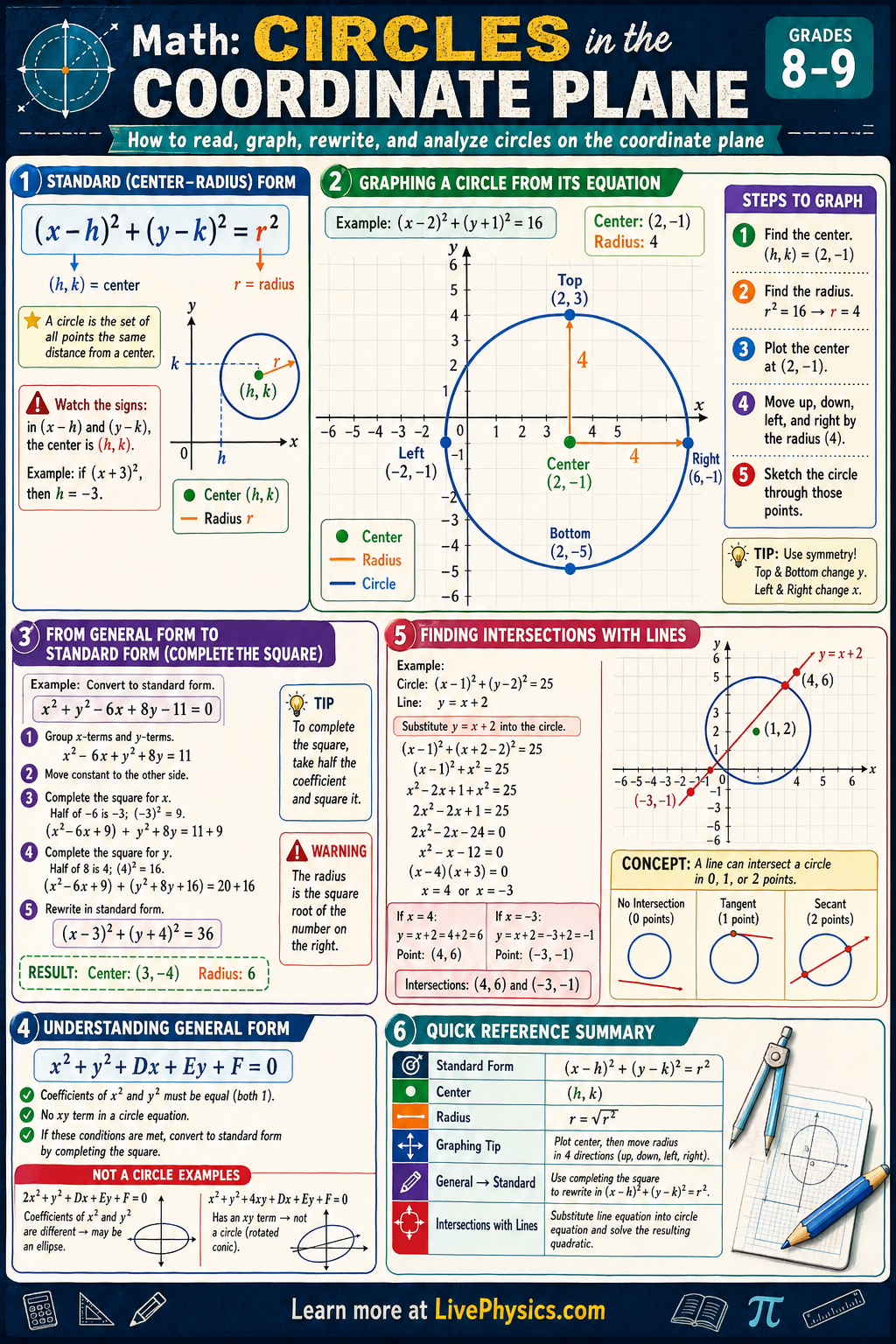

Circles in the Coordinate Plane infographic - Standard Form, Graphing, and Intersections

Click image to open full size

Math

Circles in the Coordinate Plane

Standard Form, Graphing, and Intersections

Download PNG Save to Pinterest

Related Tools

Related Labs

Related Worksheets

Related Cheat Sheets

A circle in the coordinate plane connects geometry and algebra by showing how a shape can be described with an equation. Students use circles to graph points, measure distance from a center, and solve problems that combine visual reasoning with symbolic work. This idea matters because it appears in geometry, algebra, physics, and computer graphics. Learning the equation of a circle helps students move between a graph and an equation with confidence.

The standard form of a circle is (x−h)2+(y−k)2=r2(x - h)^2 + (y - k)^2 = r^2, where (h,k)(h, k) is the center and rr is the radius. This form makes graphing easier because you can read the center and radius directly from the equation. If a circle is written in a longer general form, you can rewrite it by completing the square. Circles can also intersect lines, and those intersection points are found by solving a system of equations.

Key Facts

  • Standard form of a circle: (x−h)2+(y−k)2=r2(x - h)^2 + (y - k)^2 = r^2
  • Center of the circle is (h, k) and radius is r
  • If the equation is (x+3)2+(y−2)2=25(x + 3)^2 + (y - 2)^2 = 25, then the center is (−3,2)(-3, 2) and the radius is 55
  • A circle with center (0,0)(0, 0) has equation x2+y2=r2x^2 + y^2 = r^2
  • To graph a circle, plot the center, then move r units up, down, left, and right to mark key points
  • To find where a line and circle intersect, substitute the line equation into the circle equation and solve

Vocabulary

Circle
A set of all points in a plane that are the same distance from one fixed point.
Center
The fixed point inside a circle from which every point on the circle is equally far.
Radius
The distance from the center of a circle to any point on the circle.
Standard form
The equation form (x−h)2+(y−k)2=r2(x - h)^2 + (y - k)^2 = r^2 that shows a circle's center and radius directly.
Completing the square
An algebra method used to rewrite a quadratic expression so a circle equation can be put into standard form.

Common Mistakes to Avoid

  • Reading the center signs incorrectly, because in (x−h)2+(y−k)2=r2(x - h)^2 + (y - k)^2 = r^2 the center is (h,k)(h, k), so opposite signs often appear inside the parentheses.
  • Using rr instead of r2r^2, because the equation equals the square of the radius, not the radius itself.
  • Forgetting to complete the square for both x and y terms, because a circle in general form must be rewritten in both variables to reveal the true center and radius.
  • Assuming every line intersects a circle twice, because a line can touch once at a tangent point or miss the circle completely.

Practice Questions

  1. 1 Find the center and radius of the circle (x−4)2+(y+1)2=16(x - 4)^2 + (y + 1)^2 = 16.
  2. 2 Rewrite x2+y2−6x+8y−11=0x^2 + y^2 - 6x + 8y - 11 = 0 in standard form by completing the square, then state the center and radius.
  3. 3 A line and a circle form a system. Explain how the number of solutions tells whether the line misses the circle, touches it once, or crosses it twice.
