Robotics is a way to solve real problems by building machines that can sense, think, and act. The engineering design process helps teams move from an idea to a working robot step by step. In a classroom makerspace, students can use wheels, motors, sensors, wires, and code to turn sketches into a machine that performs a task.
This process matters because good robots are improved through teamwork, testing, and learning from mistakes.

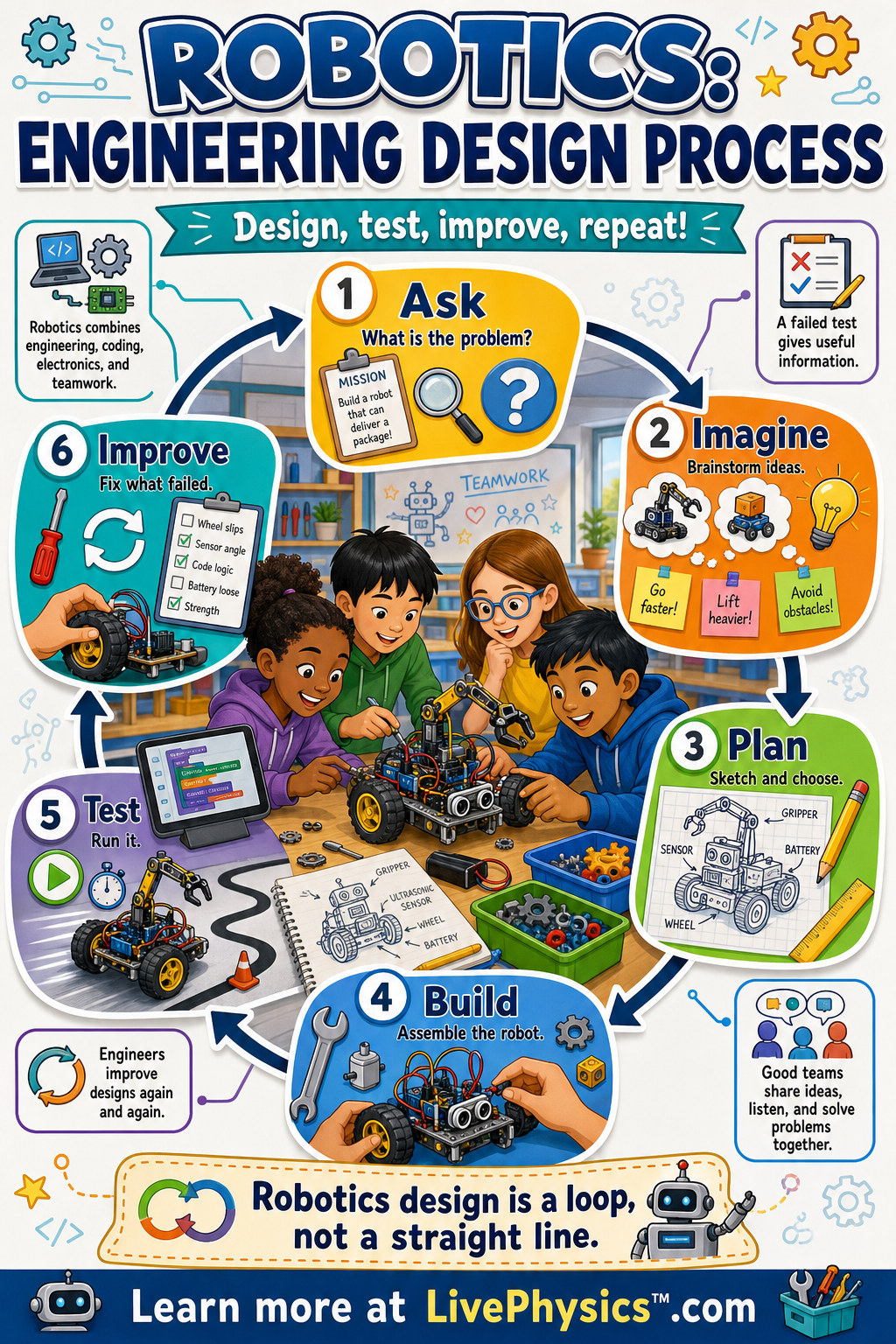

The six-step cycle is Ask, Imagine, Plan, Build, Test, and Improve. A team first defines the problem, brainstorms possible solutions, chooses a plan, and builds a robot model. Then they test how well the robot works, collect evidence, and change the design to make it better.
Since robots often do not work perfectly the first time, repeating the cycle is a normal and important part of engineering.
Understanding Engineering Design Process for Robotics
A useful design problem has clear success criteria and real limits. A robot might need to carry a small load across a marked floor, stop near a wall, or sort objects by colour. The team must decide what counts as success before choosing parts.
They may set a target time, a maximum size, a budget, or a safety rule. Limits matter because an idea that works in theory may use too much power, fall apart, or be too large for the course.
Writing requirements in simple, measurable statements prevents arguments later. It gives the team evidence for deciding whether a change actually helped.
Planning links the physical robot to its program. A motor can turn a wheel, but the wheel size affects how far the robot travels per rotation. Teams can find the wheel circumference by multiplying pi by the wheel diameter.
This helps them estimate the number of motor rotations needed for a route. Gear choices create a tradeoff. A gear system can give more turning force for pushing a load, though it usually reduces speed.
Sensors need careful placement as well. A distance sensor pointed too high may miss a short object.
A line sensor placed far from the wheels can make turns less accurate because the robot reacts late. A labelled sketch, a parts list, and a simple flowchart for the code can reveal these problems before construction begins.
Testing should produce data rather than impressions. A team can measure travel time, stopping distance, turning angle, number of successful runs, or battery level. Speed is found by dividing distance by time, so equal distances make comparisons easier.
Repeating each trial helps because small differences in wheel grip, battery charge, or starting position can change a result. A fair test changes one feature at a time. If a team changes the wheel size, motor power, sensor position, and code together, it cannot tell which change caused the result.
A results table is valuable even when the robot fails. It turns a frustrating failure into a clue about what to change next.
Robots often have faults that come from the connection between hardware and code. A robot that turns the wrong way may have a reversed motor wire or an incorrect direction command. A robot that moves unevenly may have a loose wheel, unequal motor speeds, or a blocked axle.
A sensor may give unreliable readings because of bright light, shiny surfaces, or nearby objects. Students should check simple causes first, such as power, wires, wheel movement, and sensor readings. Then they can inspect the program in small sections.
In real workplaces, engineers use the same habit when designing warehouse machines, medical devices, farm equipment, or space vehicles. Careful notes, safe testing, and honest results make the next version more reliable.
Key Facts
- Engineering design cycle: Ask, Imagine, Plan, Build, Test, Improve.
- A robot usually has sensors to gather information, a controller to make decisions, and actuators to create motion.
- Speed = distance ÷ time.
- Wheel circumference = pi × diameter.
- A fair test changes only one design feature at a time so the team knows what caused the result.
- Iteration means repeating the design cycle to make the robot stronger, faster, safer, or more accurate.
Vocabulary
- Robot
- A robot is a machine that can follow instructions to sense its surroundings and perform actions.
- Sensor
- A sensor is a device that detects information such as light, distance, touch, sound, or color.
- Actuator
- An actuator is a part, such as a motor or servo, that makes a robot move.
- Prototype
- A prototype is an early model built to test an idea before making a final design.
- Iteration
- Iteration is the process of testing, improving, and trying again.
Common Mistakes to Avoid
- Skipping the Ask step is wrong because the team may build a robot that does not solve the actual problem.
- Building before making a plan is wrong because sketches, measurements, and part choices help prevent wasted time and materials.
- Changing many parts at once during testing is wrong because the team cannot tell which change made the robot better or worse.
- Thinking failure means the project is over is wrong because failed tests give useful evidence for improving the robot.
Practice Questions
- 1 A robot travels 120 centimeters in 6 seconds. What is its average speed in centimeters per second?
- 2 A robot wheel has a diameter of 7 centimeters. Using pi = 3.14, what is the wheel circumference?
- 3 A team tests a robot gripper, but it drops a block every time it turns. Which step of the engineering design cycle should the team use next, and what is one change they could try?
