Robot motors turn electrical energy into motion, which lets a robot drive, lift, grab, point, and position parts. Choosing the right motor matters because each type is best at a different kind of motion. A wheel needs smooth continuous spinning, while a gripper may need to stop at a set angle.
Understanding DC motors, servo motors, and stepper motors helps students design robots that move reliably.

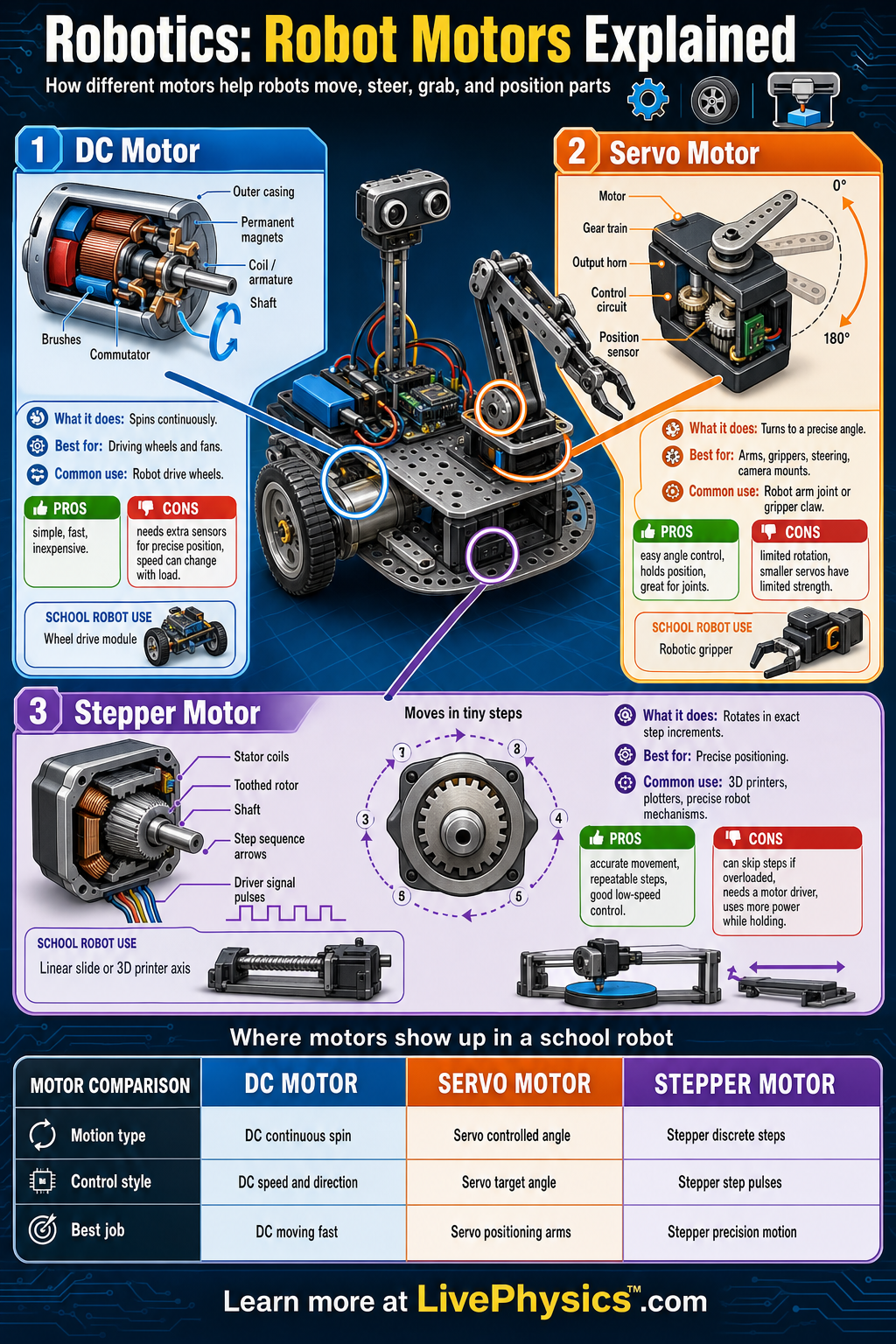

Understanding Robot Motors Explained
A motor does not produce the same turning force in every situation. Its turning force is called torque. A robot may need high torque to start moving from rest, climb a ramp, or lift an object.
Once the robot is moving, it may need less torque. Motors usually spin fastest when they have little load. As the load increases, their speed falls and their current draw rises.
If the load becomes too large, the motor can stall. During a stall, it stops turning but still draws current. This can drain batteries quickly, overheat the motor, or damage a motor driver.
A DC motor needs a circuit that can safely control more current than a microcontroller pin can provide. For a wheeled robot, this circuit is often an H bridge motor driver. It lets the controller choose forward motion, reverse motion, braking, or coasting.
Speed is commonly controlled with pulse width modulation. The driver switches power on and off very quickly. A longer on time sends more average power to the motor.
This is why a robot can move slowly without using a lower battery voltage. Friction, wheel size, surface grip, and robot mass all affect the final speed.
A servo contains a small motor, gears, a position sensor, and control electronics. The external controller sends timed pulses rather than direct power for each movement. The servo compares the requested position with its measured position.
It then turns until the difference is small. This feedback system is useful for a robot arm or sensor mount because the motor keeps correcting against small disturbances. A servo can still struggle when an arm is too heavy or a joint is blocked.
Its gears may strip if forced by hand. Some servos are modified for continuous rotation, but then the command controls speed and direction rather than a known angle.
Stepper motors are common in devices that must place parts in repeatable locations, such as small plotters, camera sliders, and three dimensional printers. A driver energizes coils in a planned sequence, pulling the rotor from one position to the next. The controller can use full steps or smaller microsteps for smoother movement.
Counting commands gives an estimated position, yet this estimate is not guaranteed. A stepper can miss steps if it accelerates too fast, meets too much resistance, or receives too little current.
The controller may continue counting even though the shaft did not move. Accurate machines often use a limit switch at startup to find a known home position.
Motor choice starts with the job, then continues with careful testing. Measure the battery voltage while the robot is pushing or lifting, since voltage can drop under load. Check the current rating of the battery, wires, switch, and driver.
A supply that is adequate for one motor may fail when several motors start together. Gear ratio matters because it trades speed for torque.
Learn to observe stalling, slipping wheels, shaking mechanisms, and missed steps. These symptoms reveal whether the problem is mechanical, electrical, or in the control code.
Key Facts
- DC motors spin continuously when powered, and reversing the voltage polarity reverses the spin direction.
- Servo motors move to a commanded angle, often from 0° to 180°, using internal feedback.
- Stepper motors move in fixed angle steps, so position can be controlled by counting steps.
- Rotational speed is often measured in revolutions per minute, rpm.
- Power = voltage x current, or P = VI.
- Gear reduction increases torque but decreases output speed.
Vocabulary
- DC motor
- A DC motor is a motor that spins continuously when connected to direct current electricity.
- Servo motor
- A servo motor is a motor with control electronics and feedback that moves to a specific angle.
- Stepper motor
- A stepper motor is a motor that turns in small fixed steps for precise positioning.
- Torque
- Torque is the twisting force that helps a motor turn a wheel, arm, or gear.
- Gear ratio
- A gear ratio compares input turns to output turns and shows how gears trade speed for torque.
Common Mistakes to Avoid
- Using a DC motor for exact arm angles, which is wrong because a basic DC motor does not know its own position without extra sensors and control.
- Assuming a servo can spin like a wheel motor, which is wrong because most hobby servos are designed for limited angle motion such as 0° to 180°.
- Ignoring torque when choosing a motor, which is wrong because a motor with enough speed may still stall if it cannot produce enough twisting force.
- Powering motors directly from a microcontroller pin, which is wrong because motors usually need more current than the pin can safely provide and should use a motor driver.
Practice Questions
- 1 A robot wheel uses a DC motor spinning at 120 rpm. How many full rotations does the wheel make in 10 seconds?
- 2 A stepper motor has a step angle of 1.8°. How many steps are needed to turn exactly 90°?
- 3 A school robot needs one motor for drive wheels, one for a gripper, and one for a small precise sliding platform. Choose DC motor, servo motor, or stepper motor for each job and explain your choices.
