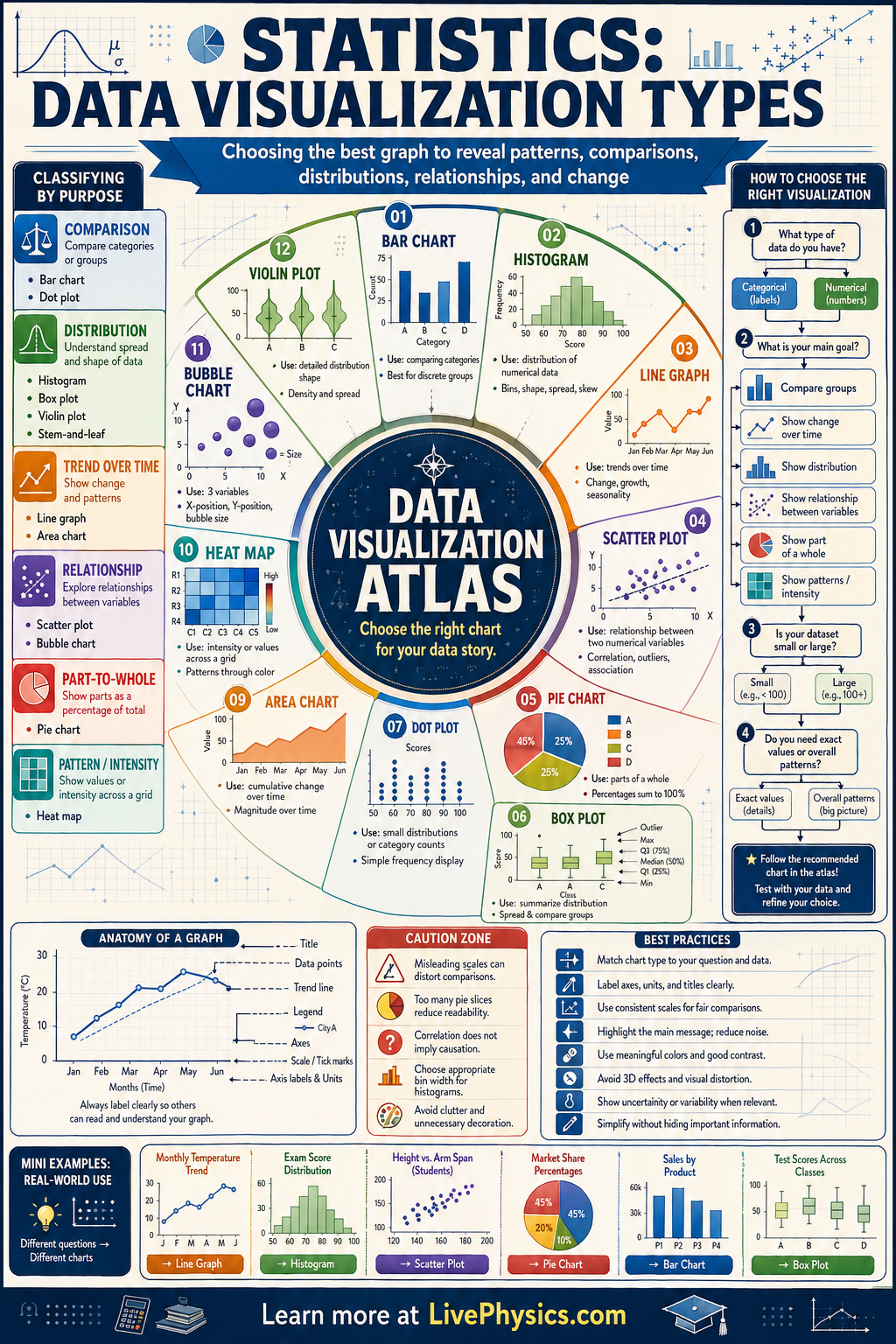

Data Visualization Types
Choosing the Right Graph
Related Labs
Data visualization turns raw numbers into pictures that are easier to interpret. Different graph types are designed for different kinds of data and different questions. Choosing the right display helps students spot patterns, compare groups, and communicate results clearly. A poor graph choice can hide important information or even suggest the wrong conclusion.
Each visualization emphasizes a different feature of a dataset, such as center, spread, trend, proportion, or relationship. Bar graphs are useful for comparing categories, while histograms and box plots show how numerical data are distributed. Line graphs highlight change over time, and scatter plots reveal associations between two variables. Learning when to use each type is a core skill in statistics because the graph should match both the data type and the message.
Key Facts
- Bar graph: best for comparing counts or values across categories.
- Histogram: best for showing the distribution of one quantitative variable using intervals called bins.
- Line graph: best for showing trends or changes over time in ordered data.
- Scatter plot: best for examining the relationship between two quantitative variables.
- Pie chart: shows parts of a whole, where category percentage = (category value / total) x 100%.
- Mean of a dataset: mean = (sum of all values) / number of values.
Vocabulary
- Categorical data
- Data sorted into groups or labels, such as eye color or favorite subject.
- Quantitative data
- Numerical data that measure or count something, such as height or test score.
- Distribution
- The overall pattern of how data values are spread out across possible values.
- Bin
- A value interval used to group numerical data in a histogram.
- Correlation
- A measure of how strongly two quantitative variables change together.
Common Mistakes to Avoid
- Using a bar graph for continuous numerical data, which is wrong because histograms are designed to show distributions of quantitative values grouped into intervals.
- Connecting unrelated category values with lines, which is wrong because line graphs imply an ordered sequence such as time.
- Choosing a pie chart with too many small categories, which is wrong because the slices become hard to compare accurately.
- Ignoring axis labels or uneven scales, which is wrong because missing units or distorted intervals can mislead the reader about the size of differences or trends.
Practice Questions
- 1 A class survey shows 12 students prefer soccer, 8 prefer basketball, 5 prefer tennis, and 15 prefer swimming. Which graph type is most appropriate to compare these preferences, and what percentage of the class prefers swimming?
- 2 A teacher records quiz scores of 10 students: 62, 68, 70, 72, 75, 75, 80, 84, 90, 94. Which graph type would best show the distribution of these scores, and what is the mean score?
- 3 A scientist wants to study whether hours of sleep are related to test performance for 50 students. Which graph type should be used, and what feature of the graph would suggest a positive relationship?
