Segment relationships in circles connect geometry diagrams to exact equations for missing lengths. These theorems help students solve problems involving chords, secants, and tangents without measuring directly. They are important because many circle problems look different on the surface but follow the same small set of patterns.
Learning to identify the pattern is the key step in solving them correctly.
Each theorem compares products or equal lengths created by lines that intersect a circle. For intersecting chords, the products of the chord segments are equal. For secants and tangents drawn from the same outside point, the outside part and the whole length work together in a predictable equation.
Once you label the segments carefully, you can translate the picture into an algebra equation and solve for the unknown.
Understanding Segment Relationships in Circles
These rules come from one deeper idea called the power of a point. A point has a fixed numerical relationship to a circle, based on where the point lies. When two lines pass through the same point, each line creates a matching length result.
For chords crossing inside the circle, the crossing point splits both chords. For lines beginning outside the circle, the common starting point controls the relationship. The diagrams may have different sizes or directions, but the shared point is what makes the calculation valid.
In formal geometry, many of these results can be proved by finding similar triangles. Similar triangles have equal angle measures and proportional side lengths, which leads to the needed products.
Careful labeling matters more than quick multiplication. On a secant, identify the part from the outside point to the first point where the line enters the circle. That is the external segment.
Then find the full distance from the outside point to the far point where the line leaves the circle. This full distance is the whole secant. It includes both the external part and the section inside the circle.
Students often use only the inside part by mistake. A useful habit is to write the whole length as the external length plus the internal length before building any equation. This prevents a common error when the unknown is on one part of a longer line.
Tangents have an extra geometric feature that helps with diagrams. A radius drawn to the point of tangency forms a right angle with the tangent line. This fact can help identify a true tangent when a radius is shown.
Two tangent segments from one outside point have matching lengths because the two right triangles formed with the center are congruent. The radius lengths match, the two triangles share the distance from the center to the outside point, and both have right angles. This explains why the two tangent pieces can be treated as equal even when they point in very different directions.
These relationships appear whenever a drawing includes a circular boundary and straight paths from a common point. They can model sight lines around a circular pond, supports touching a round tank, or paths that pass through a circular region on a map. In school problems, do not trust the drawing to be to scale.
A short-looking segment may have a larger labeled value. First decide whether the shared point is inside or outside the circle. Next classify each line by how it meets the circle.
Then mark every endpoint and write a length expression in words before substituting numbers. Finally, check whether the answer is reasonable. A length must be positive, and a whole secant must be longer than its external part.

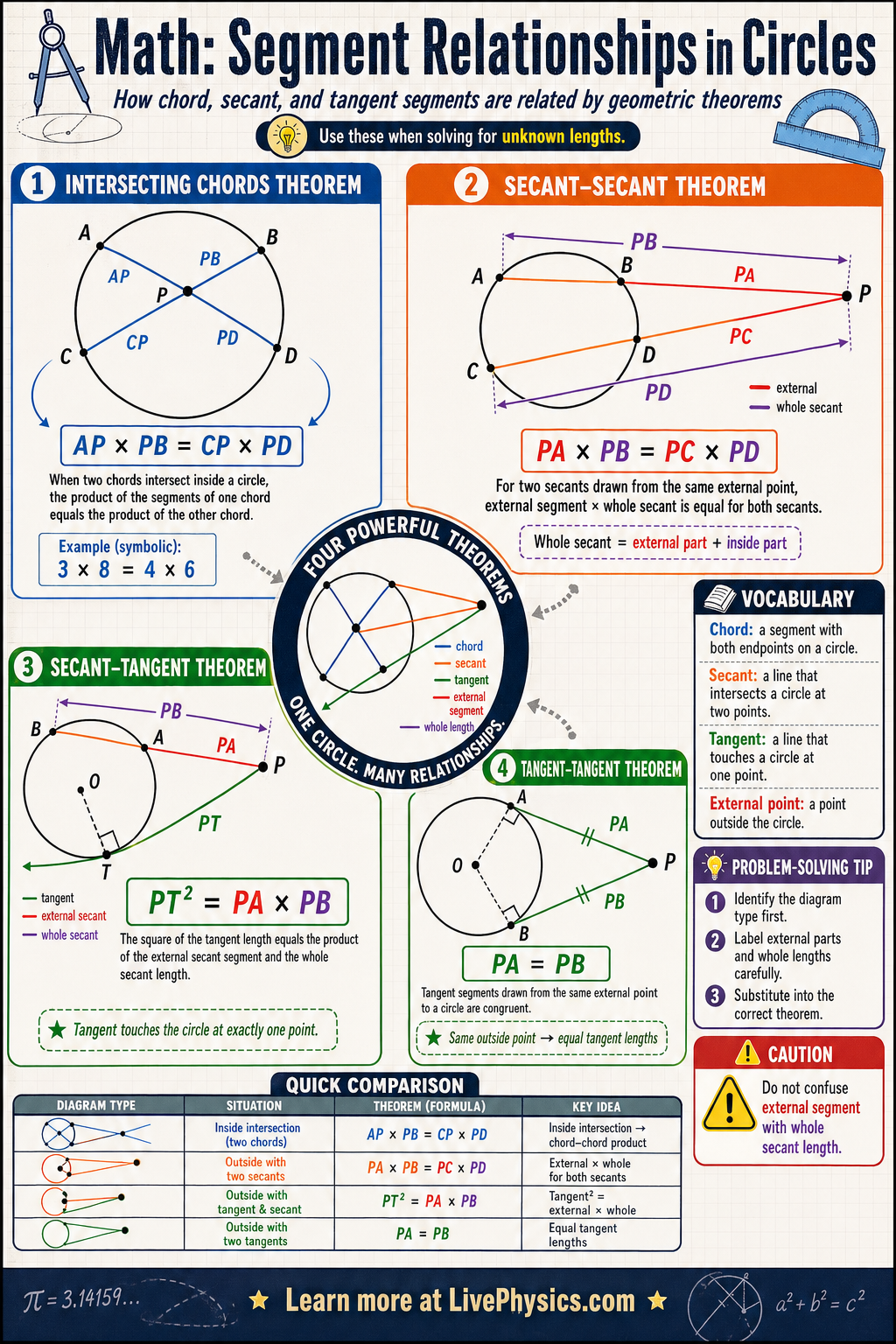

Key Facts
- Intersecting chords theorem: if two chords intersect inside a circle, then .
- Secant-secant theorem: if two secants are drawn from the same outside point, then .
- Secant-tangent theorem: if a secant and a tangent are drawn from the same outside point, then .
- Tangent-tangent theorem: if two tangents are drawn from the same outside point, then .
- Whole secant length = external segment + internal segment.
- A tangent touches a circle at exactly one point, while a secant cuts through the circle at two points.
Vocabulary
- Chord
- A chord is a line segment whose endpoints both lie on the circle.
- Secant
- A secant is a line that intersects a circle at two points.
- Tangent
- A tangent is a line that touches a circle at exactly one point.
- External segment
- An external segment is the part of a secant outside the circle from the outside point to the first intersection.
- Whole secant
- A whole secant is the entire distance from the outside point through the circle to the far intersection point.
Common Mistakes to Avoid
- Using only the inside part of a secant as the whole length, which is wrong because the theorem uses the entire secant from the outside point to the far intersection.
- Mixing up the intersecting chords theorem with the secant-secant theorem, which is wrong because chords intersect inside the circle while secants start from a point outside the circle.
- Adding segment lengths when the theorem requires multiplication, which is wrong because these circle relationships are product equations such as .
- Assuming any two segments from an outside point are equal, which is wrong because only two tangents from the same outside point have equal lengths.
Practice Questions
- 1 Two chords intersect inside a circle. One chord is split into segments of lengths 4 and 9. The other chord is split into segments of lengths 6 and x. Find x.
- 2 From a point outside a circle, one secant has an external segment of 5 and an internal segment of 7. A tangent from the same point has length t. Find t.
- 3 A student writes the equation 3*8 = 4*x for a diagram with two secants drawn from the same outside point, where 8 and x are only the inside parts of the secants. Explain why this setup is incorrect and describe what lengths should be used instead.
