Fourier Series Reference cheat sheet - grade college

Click image to open full size

Math Grade college

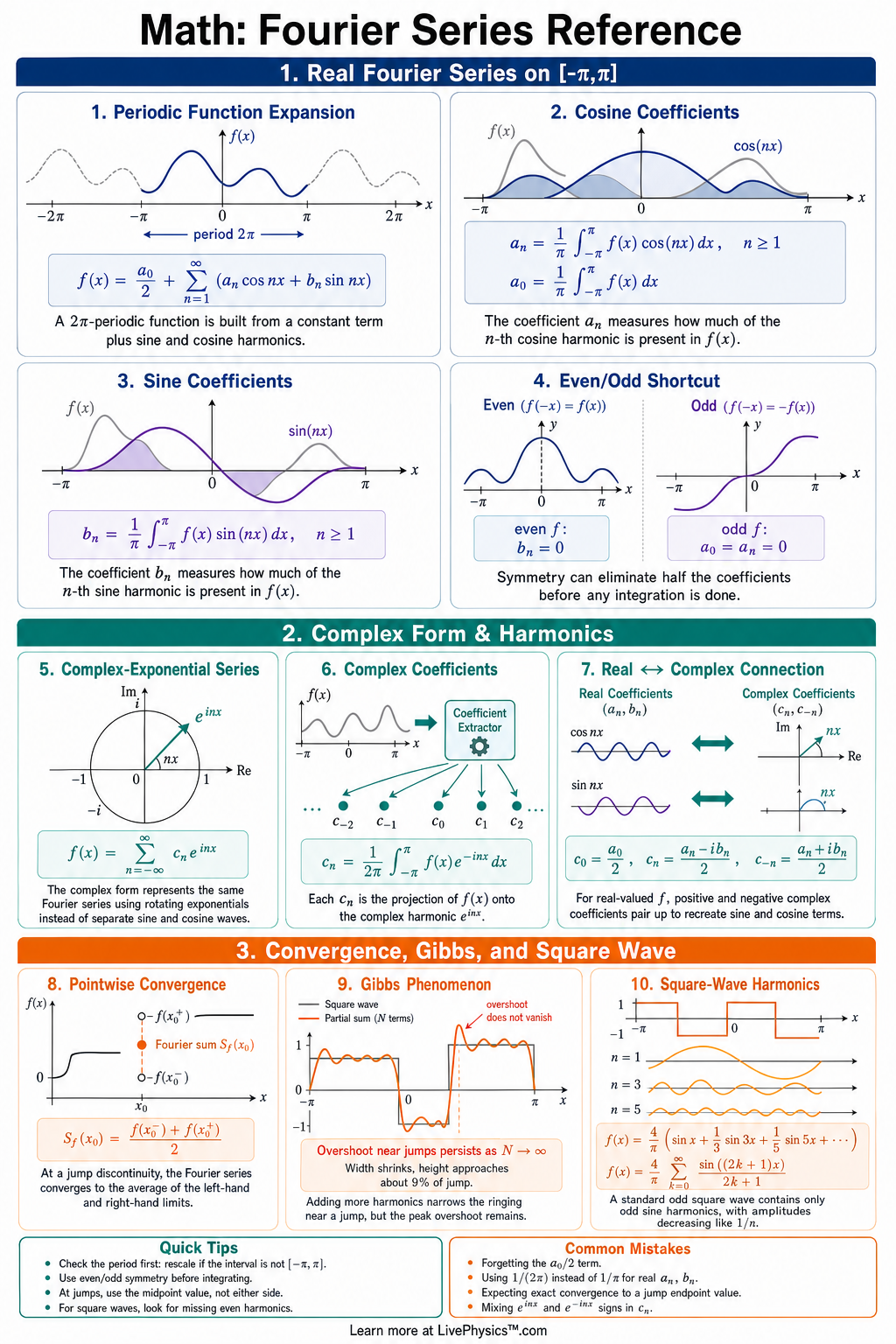

Fourier Series Reference Cheat Sheet

A printable reference covering Fourier coefficients, sine and cosine series, convergence, Parseval's identity, and common waveform expansions for college.

TopicsCalculusFunctionsTrigonometryIntegralsGraphs
Download PNG

Related Tools

Related Labs

Related Worksheets

Related Infographics

Study as Flashcards

Fourier series represent periodic functions as sums of sines and cosines. This cheat sheet helps college students quickly identify the correct coefficient formulas, symmetry shortcuts, and convergence rules. It is useful in calculus, differential equations, signal processing, physics, and engineering courses.

The goal is to make setup and interpretation faster without losing mathematical precision.

The core idea is that a function with period 2L2L can be expanded using orthogonal basis functions cos⁡(nπxL)\cos\left(\frac{n\pi x}{L}\right) and sin⁡(nπxL)\sin\left(\frac{n\pi x}{L}\right). Coefficients are found by integrating the function against these basis functions over one full period. Even functions produce cosine series, odd functions produce sine series, and piecewise smooth functions converge to midpoint values at jumps.

Energy relationships such as Parseval's identity connect the function's squared size to the sum of squared Fourier coefficients.

Key Facts

  • For a function with period 2L2L, the Fourier series is f(x)∼a02+∑n=1∞[ancos⁡(nπxL)+bnsin⁡(nπxL)]f(x) \sim \frac{a_0}{2} + \sum_{n=1}^{\infty}\left[a_n\cos\left(\frac{n\pi x}{L}\right) + b_n\sin\left(\frac{n\pi x}{L}\right)\right].
  • The constant coefficient is a0=1L∫−LLf(x) dxa_0 = \frac{1}{L}\int_{-L}^{L} f(x)\,dx.
  • The cosine coefficients are an=1L∫−LLf(x)cos⁡(nπxL) dxa_n = \frac{1}{L}\int_{-L}^{L} f(x)\cos\left(\frac{n\pi x}{L}\right)\,dx for n≥1n \ge 1.
  • The sine coefficients are bn=1L∫−LLf(x)sin⁡(nπxL) dxb_n = \frac{1}{L}\int_{-L}^{L} f(x)\sin\left(\frac{n\pi x}{L}\right)\,dx for n≥1n \ge 1.
  • If ff is even, then bn=0b_n = 0 and an=2L∫0Lf(x)cos⁡(nπxL) dxa_n = \frac{2}{L}\int_{0}^{L} f(x)\cos\left(\frac{n\pi x}{L}\right)\,dx.
  • If ff is odd, then a0=0a_0 = 0, an=0a_n = 0, and bn=2L∫0Lf(x)sin⁡(nπxL) dxb_n = \frac{2}{L}\int_{0}^{L} f(x)\sin\left(\frac{n\pi x}{L}\right)\,dx.
  • At a jump discontinuity, the Fourier series converges to f(x−)+f(x+)2\frac{f(x^-) + f(x^+)}{2} rather than to either one-sided value.
  • Parseval's identity for period 2L2L is 1L∫−LL∣f(x)∣2 dx=a022+∑n=1∞(an2+bn2)\frac{1}{L}\int_{-L}^{L} |f(x)|^2\,dx = \frac{a_0^2}{2} + \sum_{n=1}^{\infty}\left(a_n^2 + b_n^2\right).

Vocabulary

Fourier series
A representation of a periodic function as an infinite sum of sine and cosine terms.
Period
The positive length TT such that f(x+T)=f(x)f(x+T)=f(x) for all relevant values of xx.
Fourier coefficient
A number such as ana_n or bnb_n that measures how much of a specific cosine or sine mode appears in the function.
Orthogonality
A property where integrals of different basis functions over a full period equal 00, allowing coefficients to be isolated.
Half-range expansion
A sine-only or cosine-only Fourier series built from a function originally defined on an interval such as 0<x<L0 < x < L.
Gibbs phenomenon
The persistent overshoot near a jump discontinuity that remains even as more Fourier terms are added.

Common Mistakes to Avoid

  • Using the wrong period in the basis functions, because cos⁡(nx)\cos(nx) and sin⁡(nx)\sin(nx) apply directly only when the period is 2π2\pi.
  • Forgetting the factor 1L\frac{1}{L} or 2L\frac{2}{L} in coefficient formulas, which changes every coefficient by a constant scale factor.
  • Treating a discontinuity value as the Fourier series limit, because the series converges to f(x−)+f(x+)2\frac{f(x^-) + f(x^+)}{2} at a jump.
  • Ignoring symmetry, which leads to unnecessary integration and can produce incorrect nonzero coefficients for terms that should vanish.
  • Confusing sine and cosine half-range extensions, because a sine series corresponds to an odd extension while a cosine series corresponds to an even extension.

Practice Questions

  1. 1 Find the Fourier series coefficients for f(x)=xf(x)=x on −π<x<π-\pi < x < \pi with period 2π2\pi.
  2. 2 Compute the cosine series for f(x)=x2f(x)=x^2 on −π<x<π-\pi < x < \pi with period 2π2\pi.
  3. 3 For the square wave f(x)=1f(x)=1 on 0<x<π0<x<\pi and f(x)=−1f(x)=-1 on −π<x<0-\pi<x<0, determine which coefficients a0a_0, ana_n, and bnb_n are zero.
  4. 4 Explain why a Fourier series may fail to equal f(x)f(x) exactly at a jump discontinuity, even when the function is otherwise well behaved.

Understanding Fourier Series Reference

Each term in a Fourier series measures one repeating pattern hidden inside a larger pattern. The lowest frequency changes slowly across a period. Higher frequencies wiggle more times in the same distance or time.

A coefficient tells how strongly that particular wiggle is present. This works because different harmonics are orthogonal over a complete period. When one harmonic is multiplied by a different harmonic and averaged across the full interval, positive and negative parts cancel.

Only the matching harmonic leaves a nonzero average. This is why integration can separate components that are mixed together in the original function.

The interval choice matters more than many students expect. A function defined on an interval from negative L to L is treated as repeating forever outside that interval. If the values at the two ends do not match, the repeated version contains a jump at every boundary.

That jump affects the coefficients and the appearance of partial sums. In half range problems, a function may be given only from zero to L. Extending it evenly creates a cosine-only model, while extending it oddly creates a sine-only model.

These are different periodic functions, even though they agree on the original half interval. Students should state the chosen extension before calculating anything.

Fourier series appear whenever a system responds differently to slow and fast changes. A musical note contains a fundamental frequency plus harmonics that shape its sound. Image compression keeps important frequency information while discarding small details.

In physics, a vibrating string can be described as a combination of normal modes. In heat flow, each mode fades at its own rate, with rapid wiggles usually disappearing first. Square waves and sawtooth waves are useful examples because they show that a smooth sum can approximate a shape with sharp corners and jumps.

Near a jump, partial sums overshoot and ripple. Adding more terms squeezes this ripple into a narrower region, but the overshoot does not simply vanish. This behavior is called the Gibbs phenomenon.

Parseval's identity gives a powerful error check. It says that the total average squared size of the function equals the combined squared size of its Fourier components. In physical settings, squared size often represents energy or power.

A large coefficient means that mode makes a significant contribution. Small coefficients matter less individually, though many small terms can still affect a sharp feature. When working by hand, first sketch one period and mark jumps, corners, symmetry, and the average level.

Then check the period and frequency scale before integrating. After finding coefficients, test whether their signs and sizes fit the graph. A function with abrupt changes usually has coefficients that decrease slowly, while a smoother function usually has coefficients that decrease faster.
