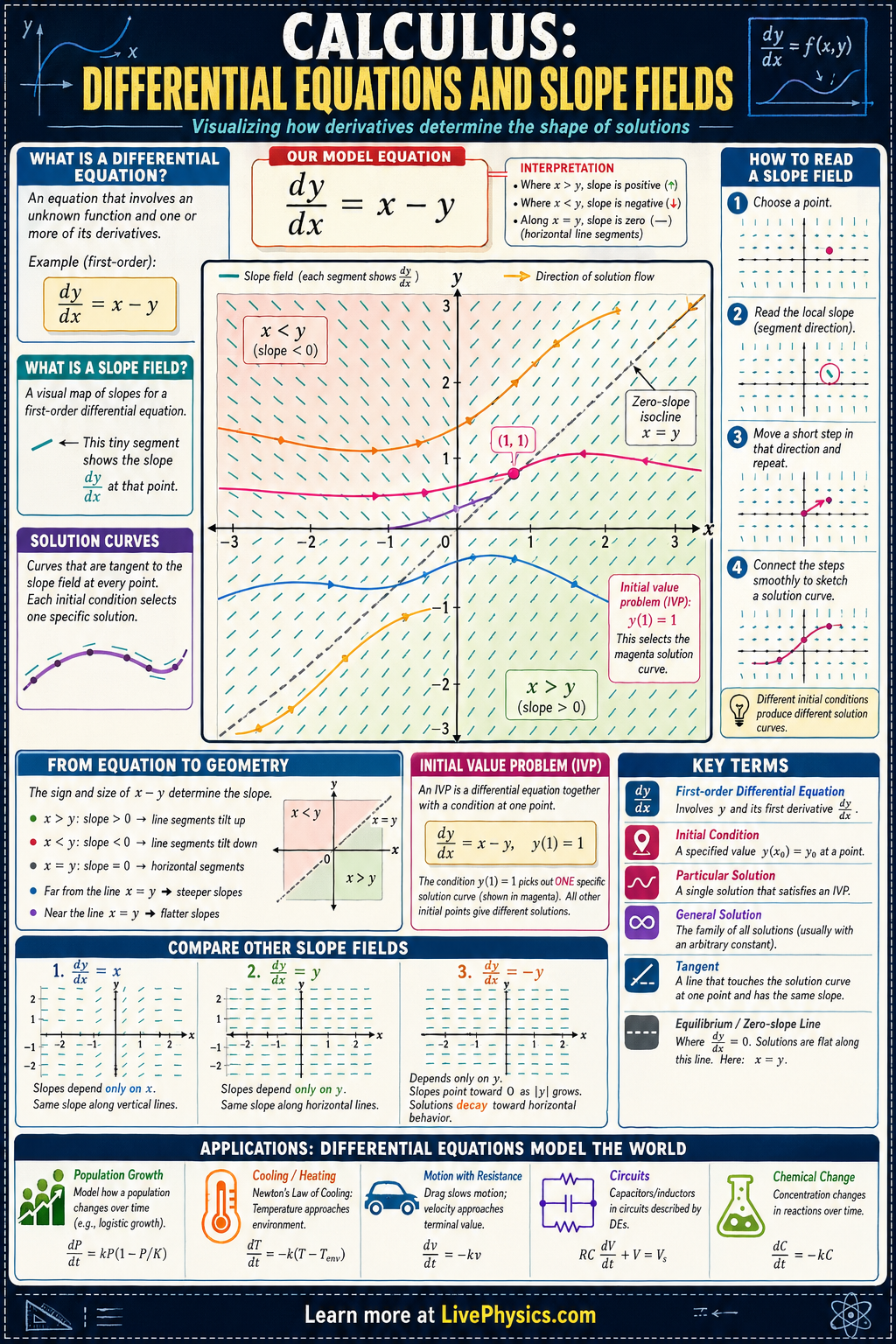

Differential Equations and Slope Fields

Visualizing Solutions to DEs

Download PNG Save to Pinterest

Related Tools

Related Labs

Related Worksheets

Related Cheat Sheets

A differential equation is an equation that relates a function to its derivative, so it tells you how a quantity changes rather than giving the quantity directly. These equations appear in physics, biology, economics, and engineering because many real systems are defined by rates of change. A slope field is a visual tool that shows the slope of solution curves at many points in the plane. It helps students understand the behavior of solutions even when finding an exact formula is difficult.

In a slope field, each small line segment represents the value of $\frac{dy}{dx}$ at a specific point $(x, y)$ . A solution curve is a graph that follows those local slopes everywhere, so it threads smoothly through the field. If an initial condition such as $y(0) = 2$ is given, it selects one particular solution from a whole family of curves. By combining algebra, graphing, and interpretation, slope fields connect symbolic differential equations to geometric motion and real-world change.

Key Facts

A differential equation involving $y$ and its derivative can be written as $\frac{dy}{dx} = f(x, y)$ .
In a slope field, the segment at point $(x, y)$ has slope $f(x, y)$ .
A solution curve satisfies the differential equation at every point along the curve.
An initial condition such as $y(x_0) = y_0$ picks the unique solution passing through $(x_0, y_0)$ .
For $\frac{dy}{dx} = ky$ , the general solution is $y = Ce^{kx}$ .
Equilibrium solutions occur where $\frac{dy}{dx} = 0$ , so the slope field has horizontal segments there.

Vocabulary

Differential equation: An equation that includes an unknown function and one or more of its derivatives.
Slope field: A graph of short line segments that shows the slope of a solution at many points.
Solution curve: A curve whose tangent slope matches the differential equation at every point.
Initial condition: A specified point such as y(1) = 3 that identifies one particular solution.
Equilibrium solution: A constant solution where the rate of change is zero everywhere on the solution.

Common Mistakes to Avoid

Treating the slope field segments as disconnected graph pieces, which is wrong because they only show local direction and are not themselves full solutions.
Drawing solution curves that cross the small segments at random angles, which is wrong because a true solution must be tangent to the field everywhere.
Ignoring the initial condition, which is wrong because the differential equation usually has many solutions and the given point selects one of them.
Assuming every differential equation has a simple explicit formula, which is wrong because many equations are best understood qualitatively through slope fields or numerical methods.

Practice Questions

1 For the differential equation $\frac{dy}{dx} = 2x$ , find the general solution $y(x)$ . Then find the particular solution that satisfies $y(1) = 5$ .
2 For $\frac{dy}{dx} = 3y$ , determine whether $y = 2e^{3x}$ is a solution. Then find the solution that satisfies $y(0) = -4$ .
3 A slope field shows horizontal segments along the line y = 1, segments slanting upward when y > 1, and segments slanting downward when y < 1. Explain what this tells you about the equilibrium solution and the long-term behavior of nearby solutions.
