Memory chips store the information that computers use while running programs, displaying images, and processing data. At the smallest level, digital memory is built from bits, where each bit has a value of 0 or 1. A memory chip contains billions of tiny circuits arranged in rows and columns so the computer can quickly find, read, and write each bit.
Understanding memory helps explain why computers need power, why speed matters, and why data can sometimes be lost or corrupted.

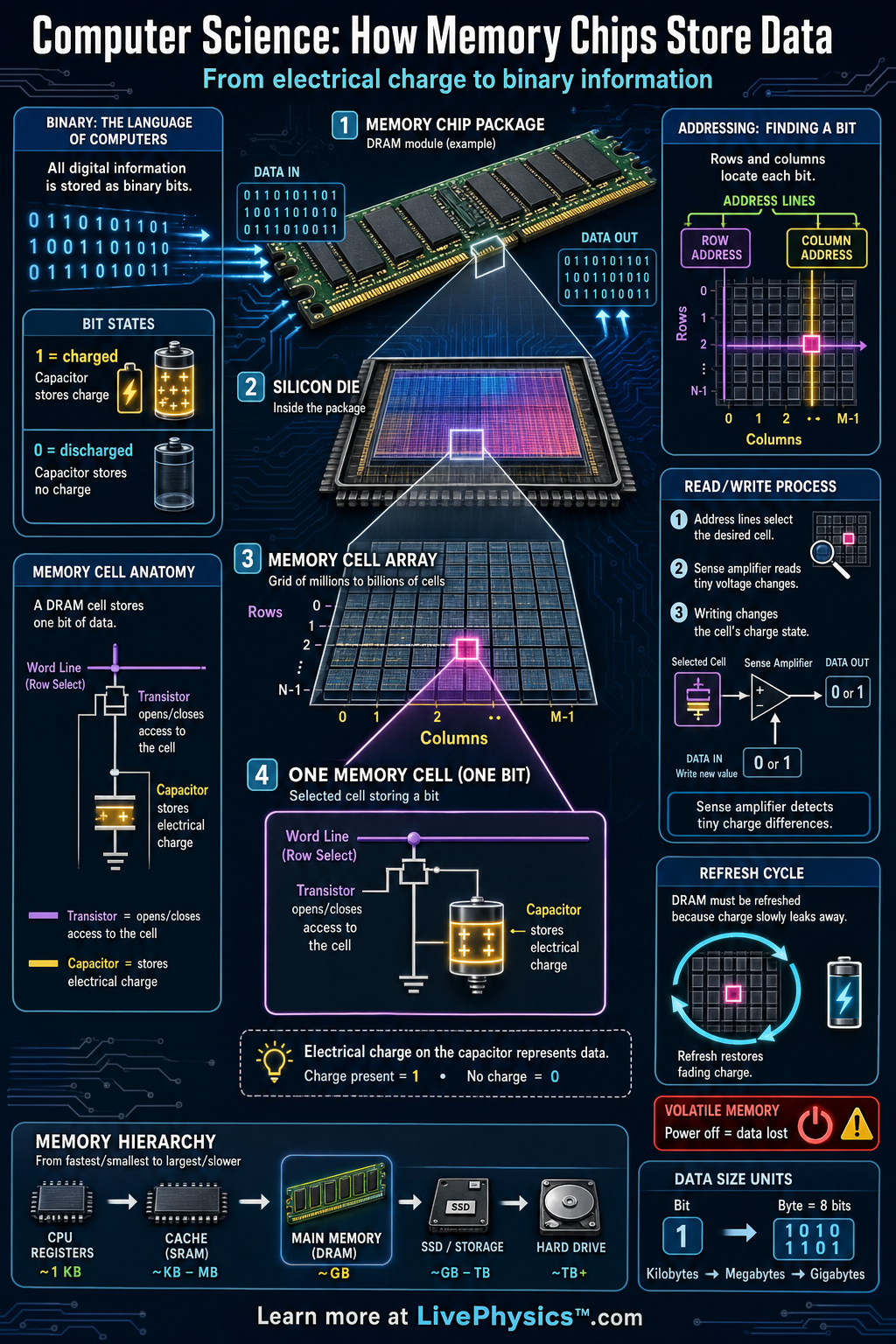

Understanding How Memory Chips Store Data
A memory cell is useful only when the chip can reach it reliably. Address circuitry translates a location requested by the processor into control signals. A selected word line opens cells in one part of the chip.
Their stored state affects nearby bit lines, which carry a very small electrical signal. Sense amplifiers detect this weak difference, strengthen it, and send a clear value to the rest of the computer. This process must happen extremely accurately because the original signal can be tiny and electrical noise can interfere with it.
Reading DRAM is more involved than simply checking a stored charge. When a cell connects to a bit line, its charge is shared with the line. The sense amplifier decides which state was present and then restores the cell before the read is complete.
In this sense, reading DRAM changes the cell and requires it to be rewritten. The chip repeatedly refreshes groups of cells in the background.
Refreshing takes time and uses energy, so it affects the design of phones, laptops, and servers. Heat can make charge leak faster, which is one reason reliable systems monitor temperature.
Not every kind of memory uses capacitors. Static RAM, usually called SRAM, stores a value in a small circuit made from several transistors. As long as power remains available, the circuit holds one of two stable states without refresh.
SRAM responds quickly, but each cell takes more chip area than a DRAM cell. It is therefore used for small, fast caches close to the processor.
DRAM is used for main memory because it can provide much more capacity at a lower cost. Both types lose their contents when power is removed.
Storage devices such as solid state drives use flash memory, which works differently from working memory. Flash cells hold electrons in an insulated region of a transistor, allowing data to remain after shutdown. Writing to flash requires carefully changing the stored charge.
Erasing usually happens to a large block of cells rather than one chosen byte. This makes writing slower and gradually wears cells out.
A drive controller spreads writes across the chip and uses error correction to recover from small mistakes. These hidden tasks explain why a nearly full drive can sometimes slow down.
When learning about memory, separate capacity, latency, and bandwidth. Capacity is how much information fits. Latency is the delay before one requested piece arrives.
Bandwidth is how much data can move in a given time. A computer may have plenty of memory capacity yet still feel slow if data arrives too late. When RAM fills up, an operating system may move some data to much slower storage, causing pauses.
Memory errors can come from damaged hardware, overheating, unstable power, or software writing to the wrong location. Good systems use checks, backups, and careful testing because a single wrong bit can change a result, an image, or an instruction.
Key Facts
- A bit stores one binary value: 0 or 1.
- 8 bits = 1 byte.
- In DRAM, one bit is stored as electric charge on a tiny capacitor.
- In DRAM, a charged capacitor often represents 1 and a discharged capacitor often represents 0.
- Memory cells are selected using row and column addresses.
- DRAM must be refreshed because capacitor charge leaks away over time.
Vocabulary
- Bit
- A bit is the smallest unit of digital information and can have the value 0 or 1.
- Memory cell
- A memory cell is a tiny circuit that stores one bit of data in a memory chip.
- DRAM
- DRAM is dynamic random access memory that stores bits as charge in capacitors and must be refreshed regularly.
- Capacitor
- A capacitor is an electronic component that stores electric charge for a short time.
- Address
- An address is a number used by the computer to locate a specific place in memory.
Common Mistakes to Avoid
- Thinking a memory chip stores letters directly is wrong because the chip stores binary patterns, and software interprets those patterns as letters, numbers, colors, or instructions.
- Assuming DRAM keeps data forever is wrong because its capacitors leak charge, so the data disappears without power and refresh cycles.
- Confusing storage and memory is wrong because RAM is fast temporary working space, while drives such as SSDs are used for longer term storage.
- Treating a byte as the same as a bit is wrong because 1 byte equals 8 bits, so mixing them gives answers that are off by a factor of 8.
Practice Questions
- 1 A memory chip stores 16 gigabits of data. How many gigabytes is this, using 8 bits = 1 byte?
- 2 A DRAM row contains 8192 memory cells. If each cell stores 1 bit, how many bytes are stored in one row?
- 3 Explain why DRAM needs refresh circuits but nonvolatile memory such as flash can keep data when power is turned off.
