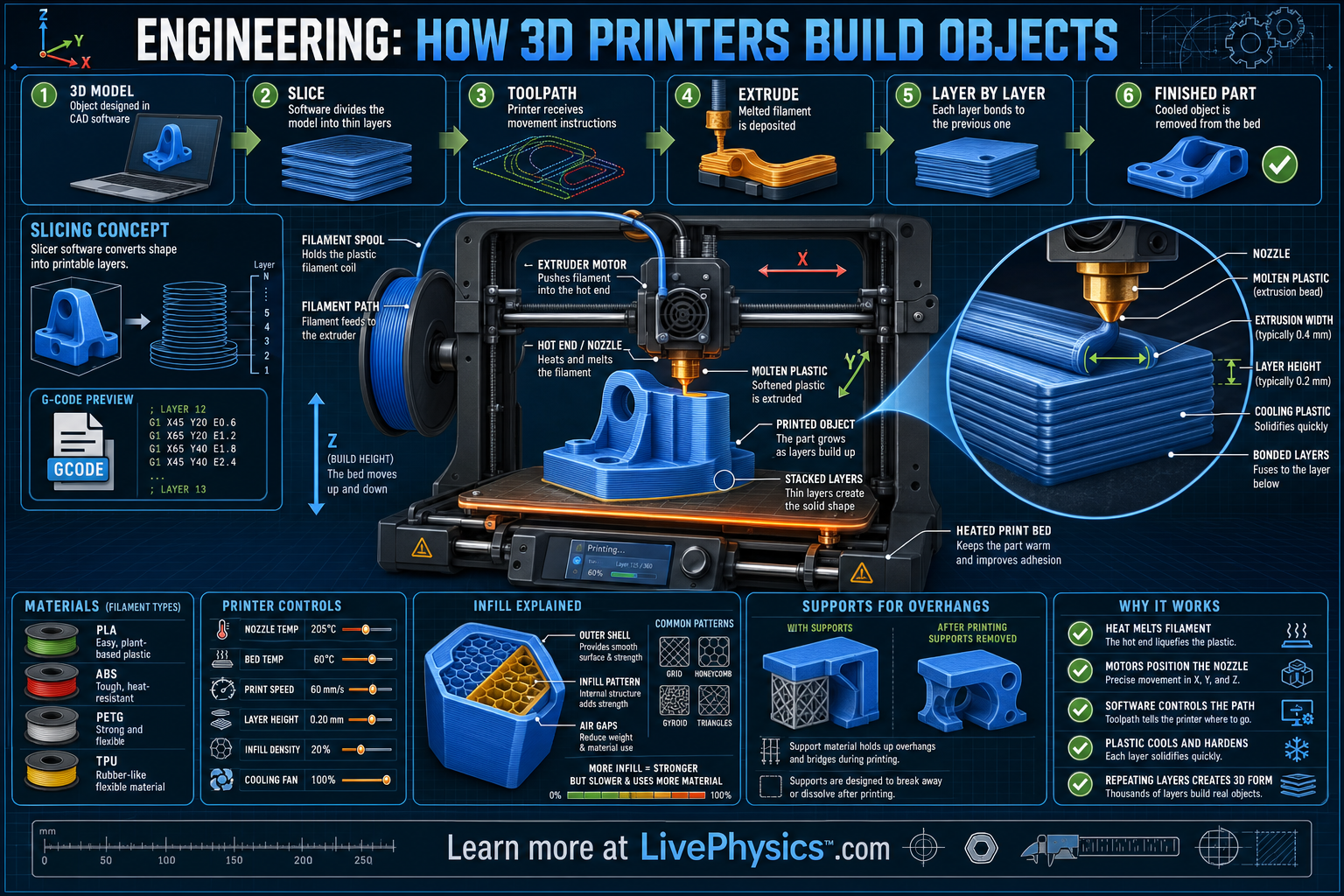

How 3D Printers Build Objects
3D Printers Build Objects
Related Worksheets
A 3D printer builds a physical object by adding material one thin layer at a time. In the most common classroom and desktop method, called fused deposition modeling, a plastic filament is melted and squeezed through a small heated nozzle. The printer follows a digital model that has been sliced into hundreds or thousands of flat cross sections. This matters because engineers can turn ideas into testable prototypes quickly, cheaply, and with shapes that are hard to make by cutting or molding.
Key Facts
- Layer height is the thickness of each printed layer, often 0.1 mm to 0.3 mm for desktop FDM printers.
- Number of layers = object height ÷ layer height.
- Filament is pushed into a hot end, melted, and deposited through a nozzle onto the build plate.
- Printing speed affects time and quality: distance printed = speed × time.
- Infill percentage describes how much of the inside volume is filled with material, such as 20% infill or 100% infill.
- Common FDM materials include PLA, ABS, PETG, and TPU, each with different melting temperature, strength, and flexibility.
Vocabulary
- Fused deposition modeling
- A 3D printing process that builds objects by extruding melted thermoplastic layer by layer.
- Slicer
- Software that converts a 3D model into layer instructions and tool paths for the printer.
- Extruder
- The mechanism that grips and pushes filament toward the heated nozzle.
- Build plate
- The flat surface where the printed object is formed and where the first layer must stick firmly.
- Infill
- The internal pattern of material inside a 3D printed part that affects strength, mass, and print time.
Common Mistakes to Avoid
- Using the wrong nozzle temperature, because plastic that is too cool may not bond between layers and plastic that is too hot can string, sag, or lose detail.
- Ignoring bed leveling, because an uneven first layer can cause poor adhesion, nozzle scraping, or a failed print before the object is built.
- Choosing 100% infill for every part, because solid parts use more material and time even when a lighter internal structure would be strong enough.
- Forgetting that layer lines affect strength, because a part is often weaker between layers than along continuous strands of deposited plastic.
Practice Questions
- 1 A model is 48 mm tall and is printed with a layer height of 0.2 mm. How many layers will the printer create?
- 2 A printer uses 6.5 meters of filament for one part. If a spool contains 130 meters of filament, how many identical parts can be printed before the spool runs out?
- 3 Two brackets have the same shape, but one is printed flat on the bed and the other is printed standing upright. Explain how the print orientation could affect strength, surface finish, and the need for support material.
