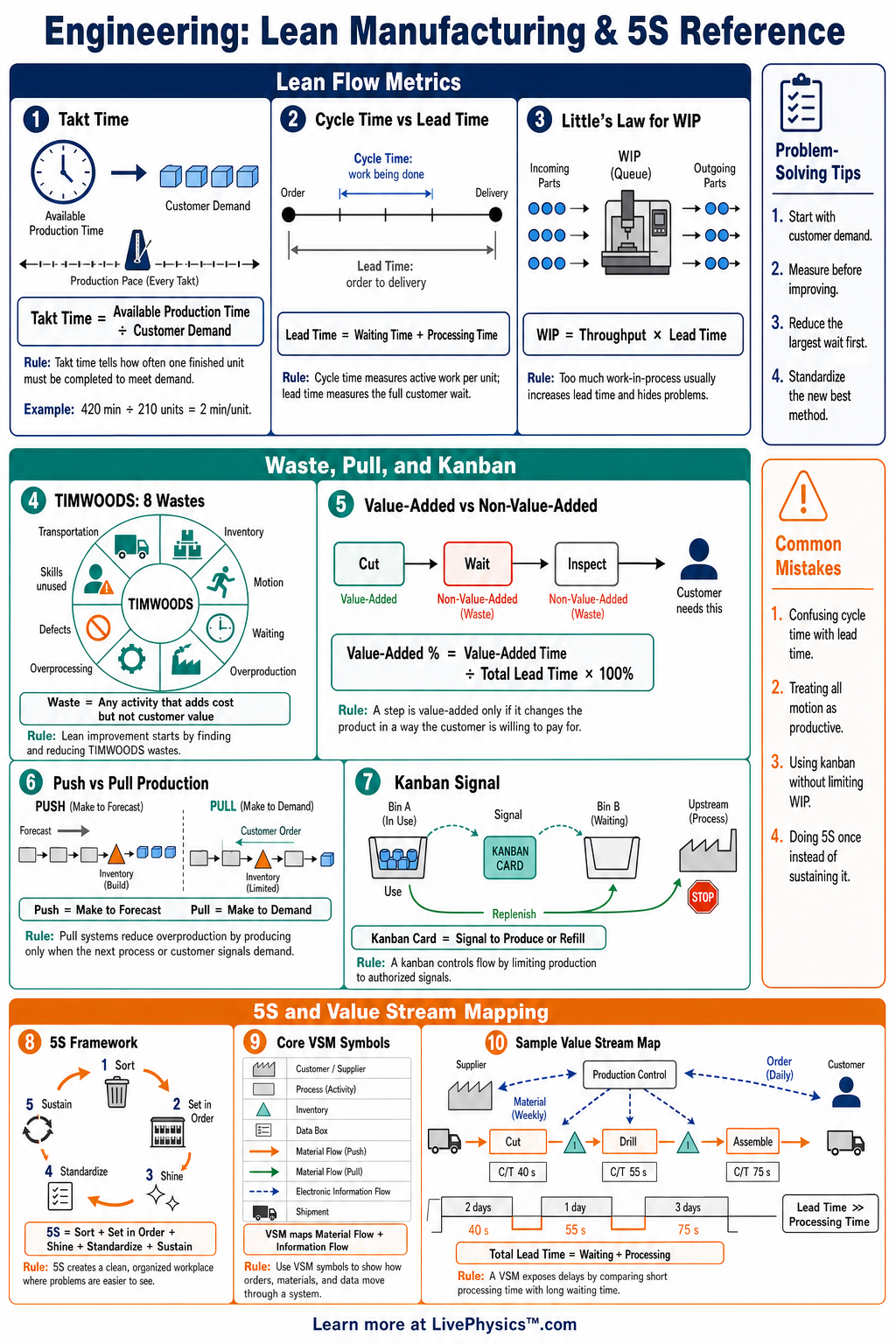

Click image to open full size
Lean Manufacturing & 5S Reference Cheat Sheet
A printable reference covering lean waste, value stream mapping, takt time, cycle time, lead time, 5S, and continuous improvement for grades 9-12.
Related Tools
Related Labs
Related Worksheets
Lean manufacturing is a way to design and improve production systems so they deliver more value with less waste. This cheat sheet helps engineering students connect shop floor organization, workflow, timing, and quality to real manufacturing decisions. It is useful for projects, robotics teams, career and technical education, and introductory engineering design. Students can use it to quickly compare key lean tools and calculate basic production measures. The most important lean ideas are value, waste reduction, flow, pull, and continuous improvement. 5S supports lean by making work areas safer, cleaner, and easier to use through Sort, Set in order, Shine, Standardize, and Sustain. Common formulas include takt time = available production time / customer demand and efficiency = value-added time / total lead time x 100%. Strong lean thinking focuses on solving the root cause of problems rather than blaming people.
Key Facts
- Lean manufacturing focuses on maximizing customer value while minimizing waste in materials, time, motion, defects, and effort.
- The 8 wastes are defects, overproduction, waiting, non-utilized talent, transportation, inventory, motion, and extra processing.
- Takt time = available production time / customer demand, and it shows how often one unit must be completed to meet demand.
- Cycle time is the actual time needed to complete one process step or produce one unit.
- Lead time = time from customer request to finished delivery, including waiting, processing, inspection, and movement.
- Process cycle efficiency = value-added time / total lead time x 100%, where higher values mean less waste in the process.
- 5S means Sort, Set in order, Shine, Standardize, and Sustain, and it creates a clean, safe, organized workplace.
- Kaizen means continuous improvement through small, repeated changes based on evidence and worker input.
Vocabulary
- Lean Manufacturing
- A production method that improves value for the customer by reducing waste and improving flow.
- Value-Added Activity
- A step that changes the product or service in a way the customer is willing to pay for.
- Takt Time
- The pace of production required to meet customer demand during the available working time.
- Value Stream Map
- A diagram that shows the flow of materials and information through a process from start to finish.
- 5S
- A workplace organization system based on Sort, Set in order, Shine, Standardize, and Sustain.
- Kaizen
- A continuous improvement approach that uses small, practical changes to improve safety, quality, cost, and flow.
Common Mistakes to Avoid
- Confusing cycle time with takt time is wrong because cycle time describes actual production speed, while takt time describes the required pace based on demand.
- Counting all work as value-added is wrong because inspections, waiting, rework, and transportation usually do not change the product in a way the customer values.
- Skipping Sustain in 5S is a mistake because an area can quickly return to clutter if standards, checks, and habits are not maintained.
- Trying to reduce waste before finding the root cause is wrong because quick fixes may hide the problem and allow the same defect or delay to happen again.
- Producing extra units to stay busy is a lean mistake because overproduction creates inventory, storage costs, hidden defects, and slower response to customer needs.
Practice Questions
- 1 A factory has 420 minutes of available production time per shift and customer demand is 210 units per shift. What is the takt time in minutes per unit?
- 2 A process has 18 minutes of value-added work and a total lead time of 120 minutes. What is the process cycle efficiency as a percent?
- 3 A team reduces the walking distance for one assembly task from 30 meters per unit to 12 meters per unit. If 80 units are made each day, how many meters of walking are saved per day?
- 4 A workstation is clean, labeled, and organized, but tools often return to random locations after each class period. Which part of 5S is weakest, and what standard could improve it?
