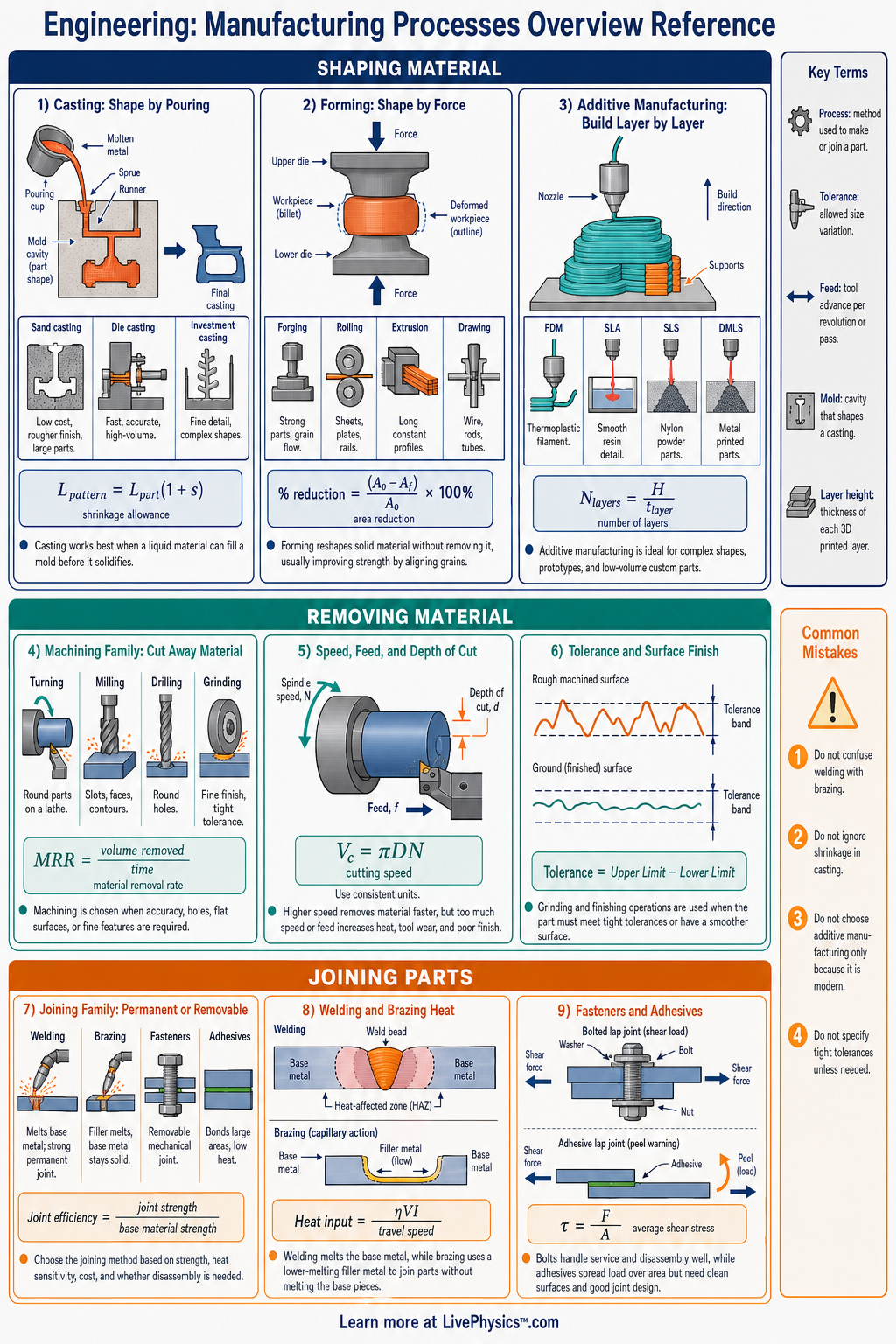

Manufacturing Processes Overview Reference Cheat Sheet
A printable reference covering casting, forming, machining, joining, additive manufacturing, tolerances, quality control, and material selection for grades 9-12.
Related Worksheets
Manufacturing processes are the methods engineers use to turn raw materials into useful products. This cheat sheet helps students compare common processes such as casting, forming, machining, joining, and additive manufacturing. It also connects process choice to cost, material properties, precision, production volume, and safety. Students need this overview to understand how designs become real parts in engineering and industry. The core idea is that each process changes material in a different way: removing it, shaping it, melting and solidifying it, bonding it, or building it layer by layer. Engineers choose a process by balancing geometry, tolerance, surface finish, strength, waste, and production rate. Important calculations include tolerance range, percent scrap, material removal rate, and basic production time. Quality control checks whether finished parts meet specifications and work reliably.
Key Facts
- Casting forms a part by pouring liquid material into a mold and allowing it to solidify.
- Forming changes the shape of a solid material using force without removing much material, such as bending, rolling, forging, or stamping.
- Machining removes material with cutting tools, and a common material removal rate formula is MRR = cutting speed x feed x depth of cut.
- Joining combines parts using methods such as welding, brazing, soldering, adhesives, fasteners, or mechanical fits.
- Additive manufacturing builds parts layer by layer from a digital model, which is useful for complex shapes and prototypes.
- Tolerance range is calculated as maximum acceptable dimension - minimum acceptable dimension.
- Percent scrap is calculated as percent scrap = defective parts / total parts x 100%.
- Total production time can be estimated with total time = setup time + number of parts x cycle time per part.
Vocabulary
- Casting
- A manufacturing process that makes a part by filling a mold with liquid material and letting it harden.
- Machining
- A manufacturing process that removes material from a workpiece using cutting, drilling, milling, turning, or grinding.
- Forming
- A process that changes a material's shape by applying force while mostly keeping the same amount of material.
- Tolerance
- The allowed variation from a specified dimension so a part can still function correctly.
- Additive Manufacturing
- A process that creates a part by adding material layer by layer, often using a 3D printer.
- Quality Control
- The process of inspecting, measuring, and testing products to make sure they meet requirements.
Common Mistakes to Avoid
- Choosing a process only because it is familiar is wrong because manufacturing decisions must match the material, part shape, tolerance, volume, and cost target.
- Ignoring tolerance is wrong because a part can look correct but still fail to fit or function if its dimensions are outside the allowed range.
- Assuming 3D printing is always best is wrong because additive manufacturing can be slow, costly for large batches, and limited by material strength or surface finish.
- Confusing casting and forming is wrong because casting starts with liquid material in a mold, while forming reshapes solid material using force.
- Forgetting setup time is wrong because total production time includes both preparation and repeated cycle time, especially for small production runs.
Practice Questions
- 1 A part has an acceptable length from 49.8 mm to 50.2 mm. What is the tolerance range?
- 2 A factory makes 800 parts and 24 are defective. What is the percent scrap?
- 3 A job has a setup time of 45 minutes and a cycle time of 3 minutes per part. How long will it take to make 60 parts?
- 4 A company needs 10,000 identical metal brackets with simple geometry and tight cost control. Explain whether machining, casting, forming, or additive manufacturing would likely be most appropriate and why.
